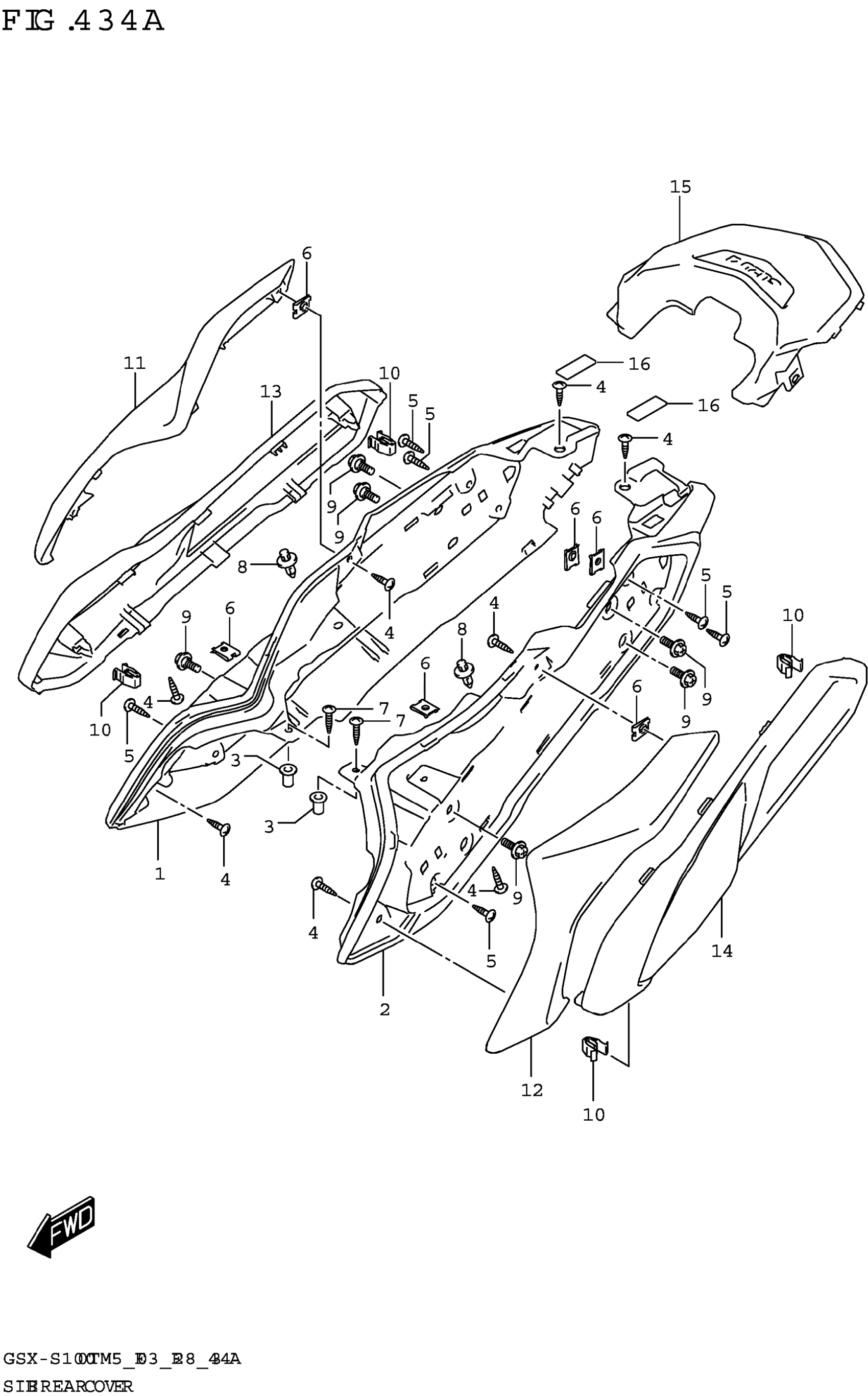

Suzuki GSX-S1000TRQM5(E03) (2025) SIDE REAR COVER Diagram

#

Description
Price

1

COVER, FRAME RR LWR RH

47131-48K10

$53.75

2

COVER, FRAME RR LWR LH

47231-48K10

$53.75

3

NUT (M5)

09159-05019

$6.44

4

SCREW

03541-0512B

$1.77

5

SCREW

03541-0516A

$1.37

6

NUT (M5)

09148-05038

$1.97

7

SCREW

02142-1520B

$2.34

8

CLIP (7.6X25.7)

09409-08308

$1.97

9

BOLT (6X13.5)

09111-06262

$1.24

10

CLIP (10.5X14.3)

09409-08326

$2.45

11-1

COVER, FRAME RH (RED) | BODY COLOR:YYG

47121-48K10-YYG

$133.98

11-2

COVER,FRAME,R (GRAY) | BODY COLOR:QEB

47121-48K10-QEB

$140.77

11-3

COVER,FRAME,R (BLUE) | BODY COLOR:YKY

47121-48K10-YKY

$140.77

12-1

COVER, FRAME LH (RED) | BODY COLOR:YYG

47221-48K10-YYG

$133.98

12-2

COVER,FRAME,L (GRAY) | BODY COLOR:QEB

47221-48K10-QEB

$130.50

12-3

COVER,FRAME,L (BLUE) | BODY COLOR:YKY

47221-48K10-YKY

$130.50

13

COVER, FRAME RR RH

47511-48K00

Unavailable

14

COVER, FRAME RR LH

47611-48K00

Unavailable

15

COVER, FRAME CENTER

47311-48K10

$28.98

16

TAPE (6X25X0.13)

94443-06G00

$2.97
