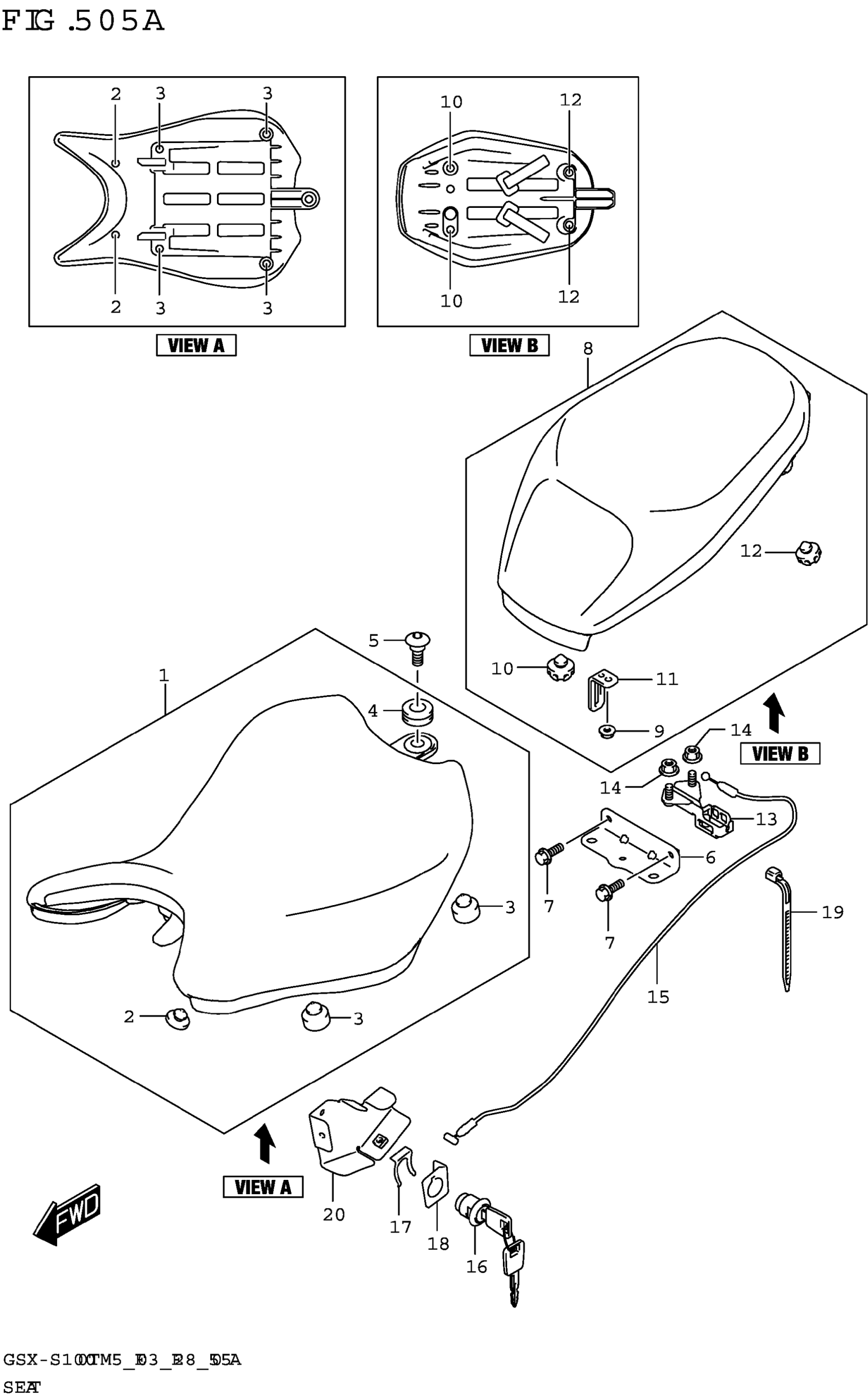

Suzuki GSX-S1000TRQM5(E03) (2025) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-48K10-B8Q

$143.68

2

CUSHION

09329-10001

$2.14

3

.CUSHION

09321-10011

$2.80

4

.CUSHION,SEAT MOUNT

45148-04K00

$7.30

5

SCREW (6X20)

09139-06193

$3.82

6

BRACKET, SEAT

45120-48K00

$17.72

7

BOLT

01550-0612A

$1.97

8

SEAT ASSY, PILLION (BLACK)

45300-48K10-B8Q

$167.83

9

NUT (6X12)

08316-1006A

$2.19

10

.CUSHION

45148-20G90

$6.28

11

.STRIKER,SEAT LOCK

45212-18K00

$10.88

12

.CUSHION, SEAT MOUNT RR

45148-20G00

$10.40

13

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

14

NUT (6X12)

08316-1006A

$2.19

15

CABLE, SEAT LOCK

45280-48K00

$7.25

16

LOCK SET,SEAT

95700-14810

$98.21

17

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

18

GUARD, SEAT LOCK

45289-48K00

$14.82

19

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91

20

CLAMP (L:125)

09407-14403

$2.24
