2025 Suzuki GSX-S1000TRQM5(E03) Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Suzuki GSX-S1000TRQM5(E03), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

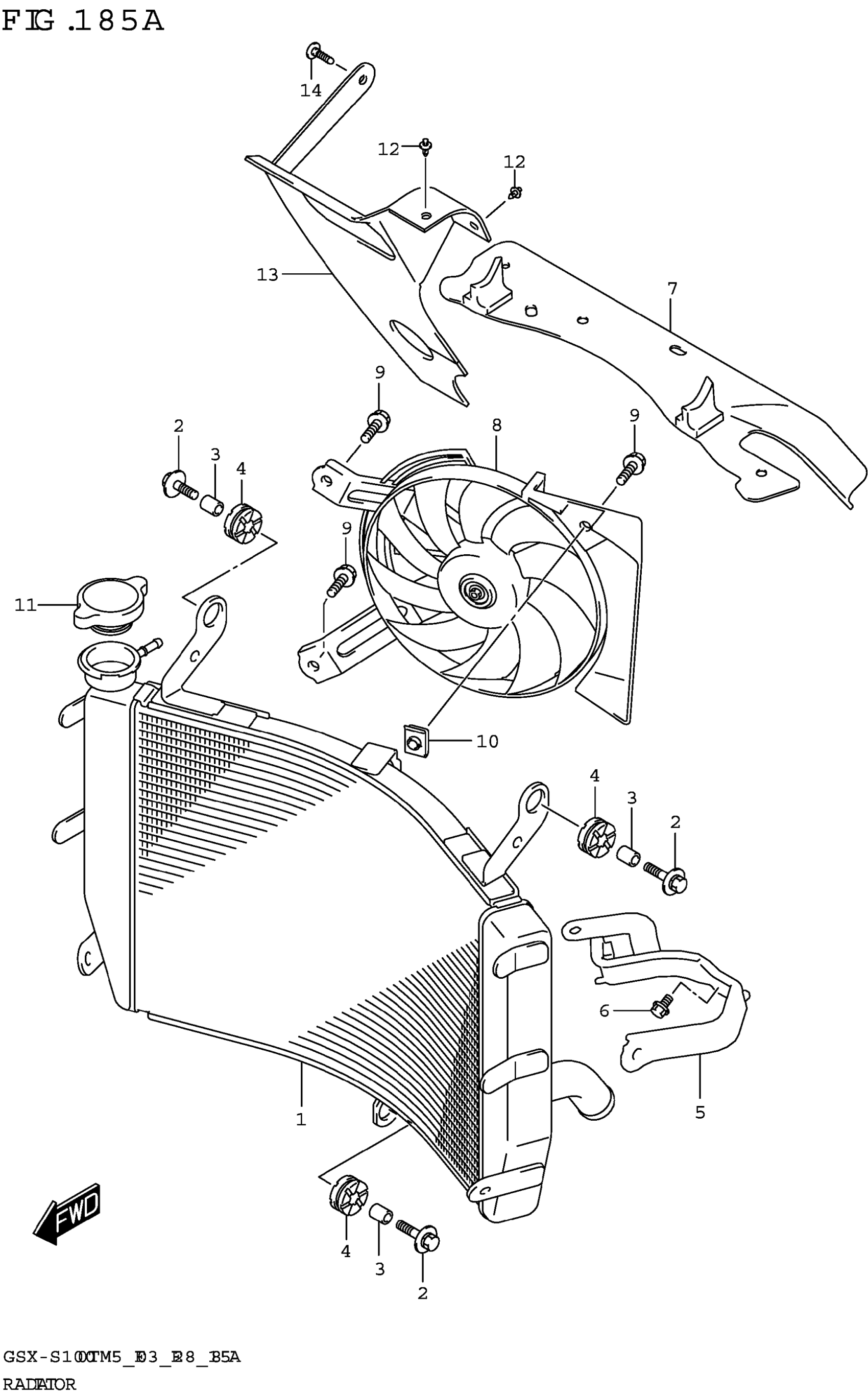

2025 Suzuki GSX-S1000TRQM5(E03) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, WATER

17710-48K00

1

$386.63

In stock

2

BOLT (6X25)

09118-06097

3
Out of stock

3

SPACER (6.5X10X12)

09180-06290

3
Out of stock

4

CUSHION

09320-10051

3

$3.03

In stock

5

1

$52.60

In stock

6

BOLT

01550-0612A

1
Out of stock

7

SHIELD, RADIATOR HEAT

17771-48K10

1

$44.83

In stock

8

FAN ASSY, RADIATOR

17800-48K00

1

$496.80

In stock

9

BOLT

01550-0616A

3
Out of stock

10

NUT,RADIATOR FAN

17802-14F00

1
Out of stock

11

CAP,RADIATOR (1.1)

17730-14G00

1
Out of stock

12

2

$2.92

In stock

13

SHIELD, RDTR HEAT RH

17772-48K00

1

$33.27

In stock

14

CLIP

09409-06315

1

$1.70

In stock
