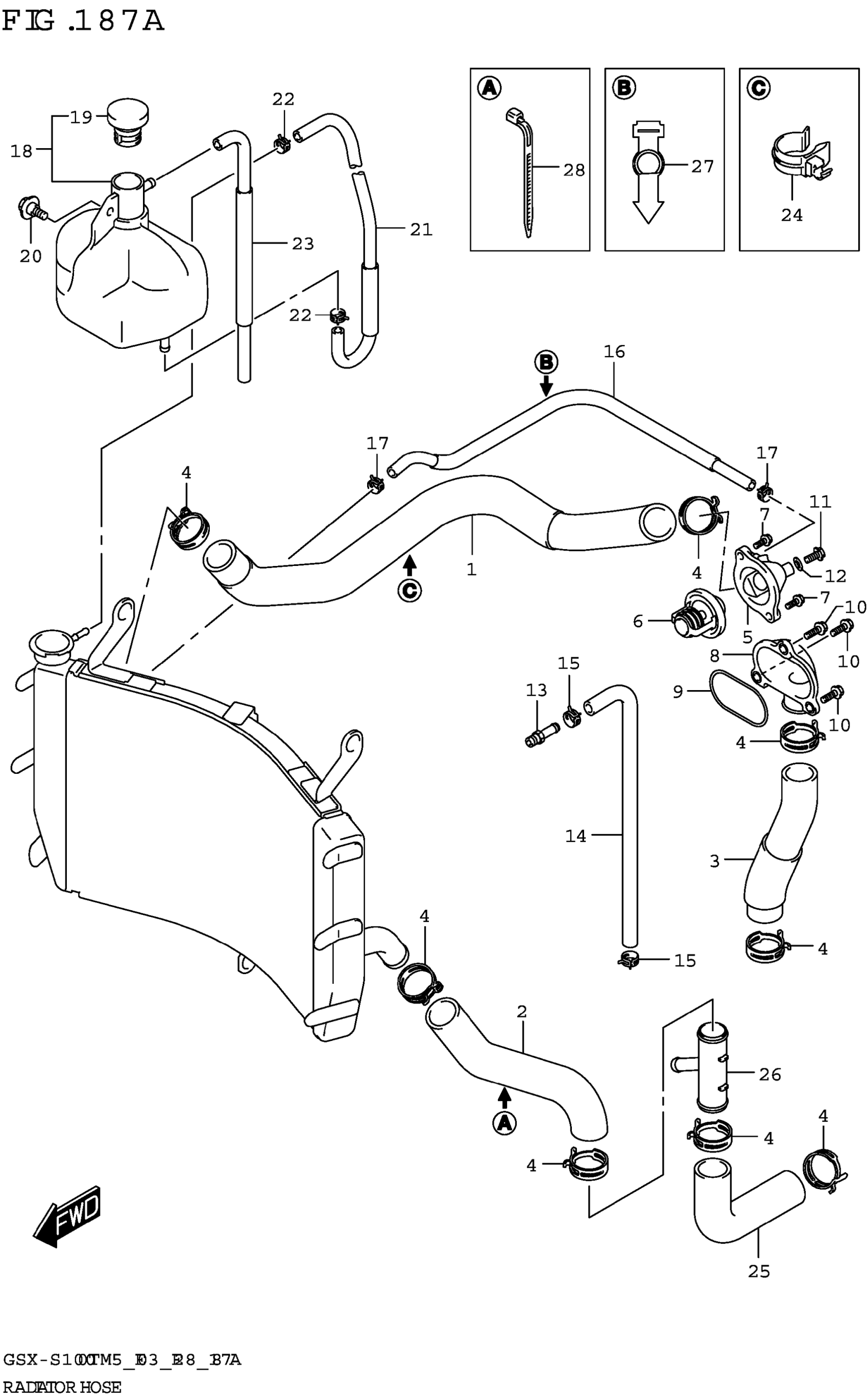

Suzuki GSX-S1000TRQM5(E03) (2025) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RDTR INLET

17851-04K10

$37.00

2

HOSE, RDTR OUTLET

17852-04K00

$25.33

3

HOSE, CYLINDER INLET

17853-40F10

$22.00

4

CLAMP

09401-29001

$2.80

5

COVER, THERMOSTAT

17661-35F00

$57.22

6

THERMOSTAT,WATER

17670-06G61

$23.59

7

BOLT

01547-0620A

$2.01

8

CONNECTOR, CYLINDER WATER

17861-33E20

$20.65

9

O RING

17863-33E00

$3.69

10

BOLT

01547-0620A

$2.01

11

UNION BOLT,AIR VENT

17568-50F00

$6.32

12

GASKET (6.4X11.5X0.84)

09168-06026

$2.80

13

UNION

09362-09011

$7.57

14

HOSE, WATER BYPASS

17854-04K10

$14.57

15

CLIP

09401-12414

$2.98

16

HOSE, WATER AIR BLEED

17857-04K10

Unavailable

17

CLIP (ID:10.5,H:8)

09401-10409

$2.28

18

TANK ASSY, RESERVOIR

17910-04K00

$67.48

19

.CAP,WATER RESERVOIR TANK

17931-31J00

$8.13

20

BOLT (6X12)

09111-06085

$4.16

21

HOSE, RSVR TANK INLET

17981-04K10

Unavailable

22

CLIP (ID:8.6)

09401-08411

$1.77

23

HOSE, RSVR TANK OVER FLOW

17982-04K00

Unavailable

24

CLAMP

09408-00321

Unavailable

25

HOSE, RDTR OUTLET NO.2

17855-04K00

$23.17

26

PIPE, WATER HOSE JOINT

17881-04K00

$4.86

27

BAND, WATER HOSE

17891-04K00

Unavailable

28

CLAMP (L:165)

09407-18402

$2.21
