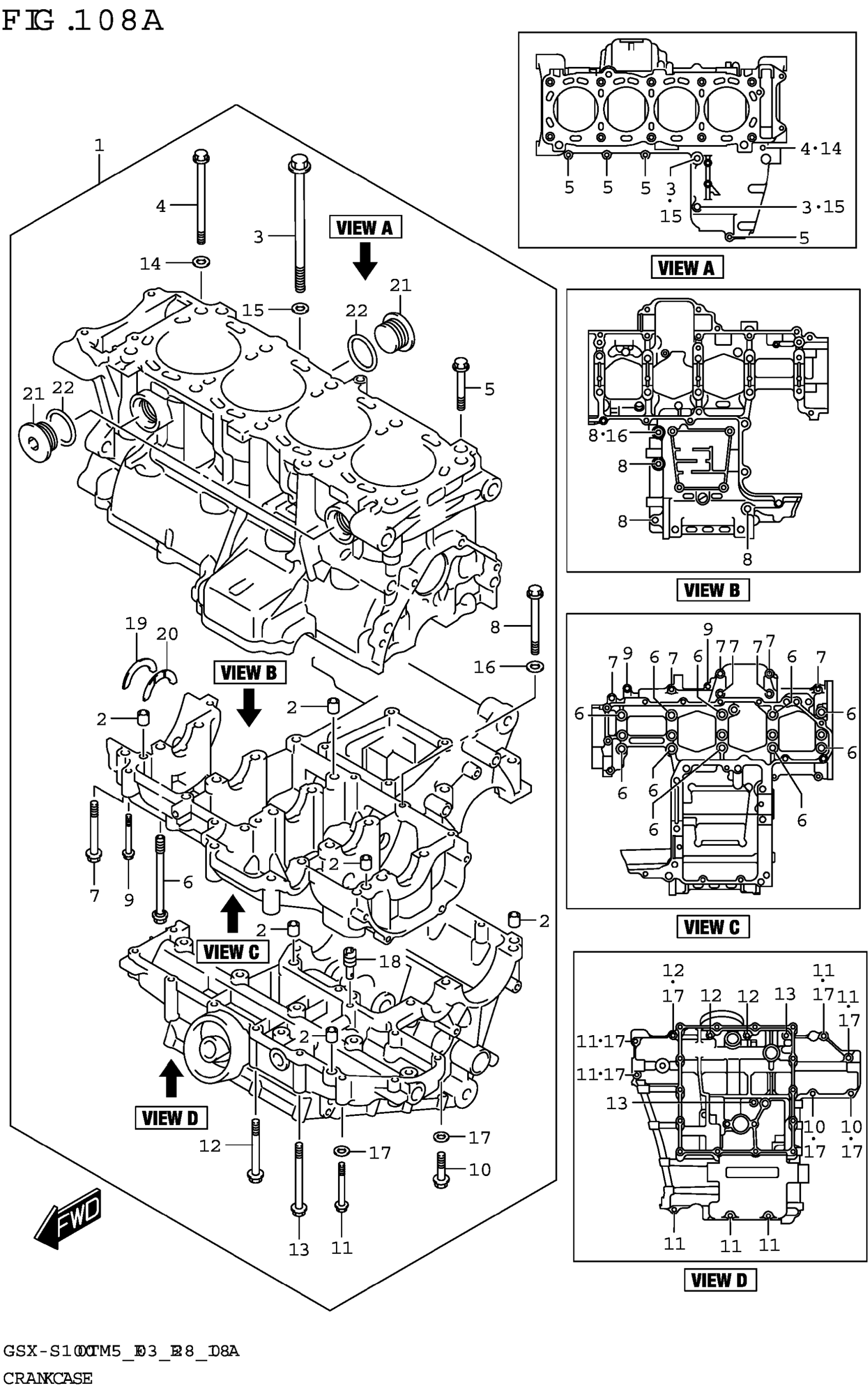

Find the part on the Crankcase diagram for your 2025 Suzuki GSX-S1000TRQM5(E03), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki GSX-S1000TRQM5(E03) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-04860

1
Out of stock

2

PIN,CRANKCASE

11319-33E50

6
Out of stock

3

.BOLT (8X120)

09106-08198

—
Out of stock

4

.BOLT

01547-0680A

1
Out of stock

5

BOLT

01547-0640A

4
Out of stock

6

.BOLT (9X95)

09103-09012

10
Out of stock

7

.BOLT (8X55)

09103-08339

7
Out of stock

8

.BOLT

07120-0865A

4
Out of stock

9

BOLT

01547-0640A

2
Out of stock

10

BOLT

01547-0630A

2
Out of stock

11

BOLT

01547-0640A

7
Out of stock

12

BOLT

01547-0660A

3
Out of stock

13

.BOLT

01547-0670A

2
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

15

GASKET (8.2X14X1)

09168-08016

2
Out of stock

16

GASKET (8.2X14X1)

09168-08016

1
Out of stock

17

GASKET (5.8X13X1.2)

09168-06023

7
Out of stock

18

JET (#140)

09493-28012

1
Out of stock

19

.BEARING,CRANK THRUST | GREEN

12228-48B00-0E0

1
Out of stock

20-1

.BEARING,CRANK THRUST | BROWN

12228-48B00-0B0

1
Out of stock

20-2

.BEARING,CRANK THRUST | RED

12228-48B00-0C0

1
Out of stock

20-3

.BEARING,CRANK THRUST | YELLOW

12228-48B00-0D0

1
Out of stock

20-4

.BEARING,CRANK THRUST | GREEN

12228-48B00-0E0

1
Out of stock

20-5

.BEARING,CRANK THRUST | BLUE

12228-48B00-0F0

1
Out of stock

20-6

.BEARING,CRANK THRUST | ORANGE

12228-48B00-0G0

1
Out of stock

20-7

.BEARING,CRANK THRUST | BLACK

12228-48B00-0H0

1
Out of stock

21

.PLUG,WATER JACKET

11318-35F00

3
Out of stock

22

.O-RING (D:3.1,ID:19.4)

09280-20002

3
Out of stock
