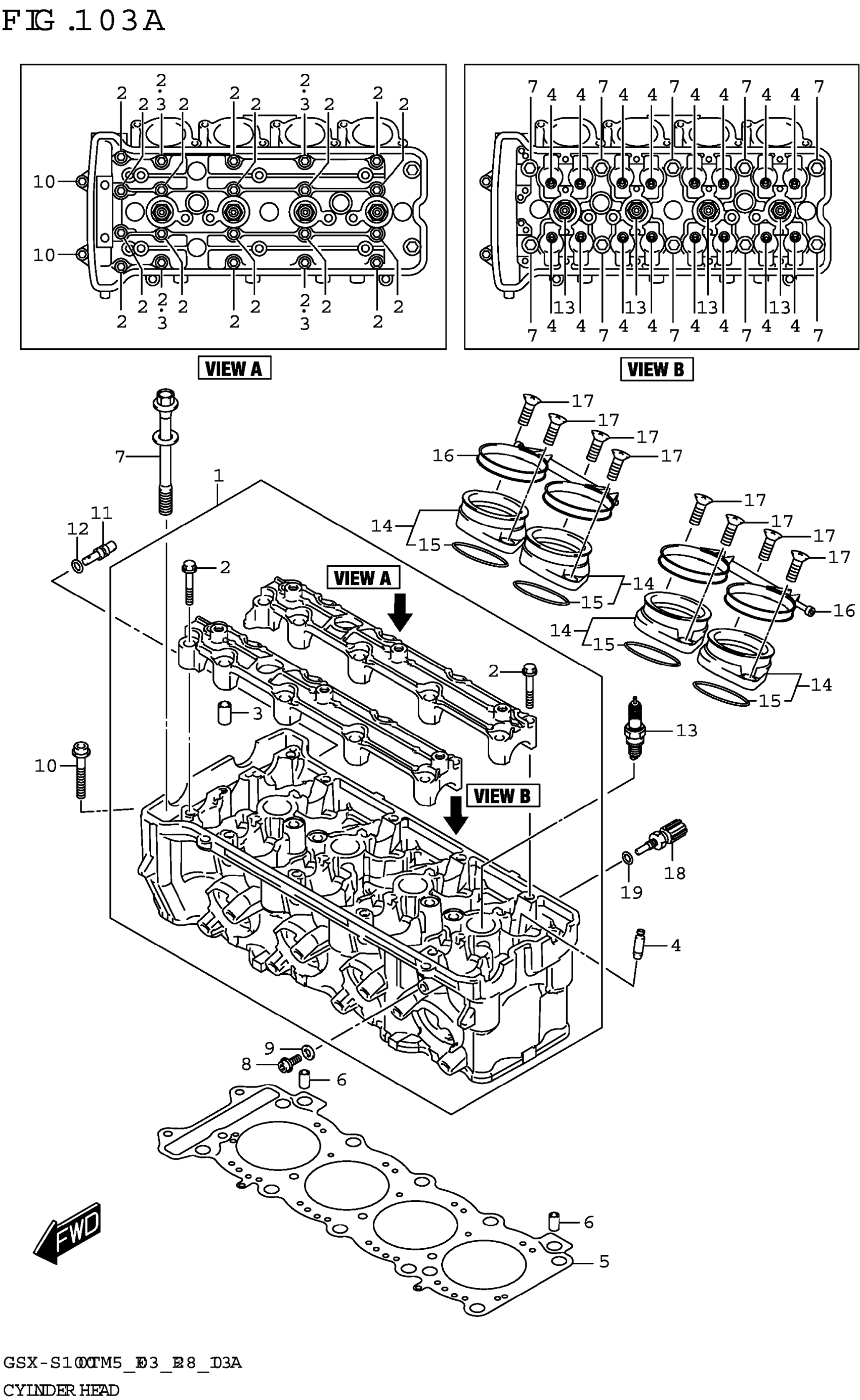

Suzuki GSX-S1000TRQM5(E03) (2025) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-48K00

$1,751.65

2

.BOLT (6X40)

09103-06266

$2.13

3

.PIN (6.2X8X16)

09206-08007

$2.62

4

GUIDE,VALVE (OS:0.3)

11115-29G70

$30.95

5

.GASKET, CYLINDER HEAD

11141-21H00

$82.31

6

PIN

04211-11169

$1.77

7

BOLT, CYLINDER HEAD (L:105) | OPT

11117-30G00

$8.52

8

BOLT

01550-0612A

$1.97

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10

BOLT

07120-0650A

$2.90

11

JET (#8)

09493-80005

$17.57

12

O-RING (D:1.2,ID:4)

09280-04004

$1.76

13-1

PLUG,SPARK (IU27D)

09482-00557

$15.20

13-2

PLUG,SPARK (CR9EIA-9)

09482-00558

$10.79

13-3

PLUG,SPARK (IU31D)

09482-00559

$21.92

13-4

PLUG,SPARK (CR10EIA-9)

09482-00560

$9.93

14

PIPE ASSY, INTAKE

13101-48K00

$44.92

15

.O RING (D:2.4,ID:47.2)

09280-48010

$8.84

16

.CLAMP,INTAKE PIPE

13170-29G02

$29.67

17

SCREW

02122-0616B

$1.98

18

SENSOR,TEMP

13650-49X00

$82.56

19

GASKET (12X17X1)

09168-12017

$1.97
