2017 Suzuki GSX-S1000AL7 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2017 Suzuki GSX-S1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

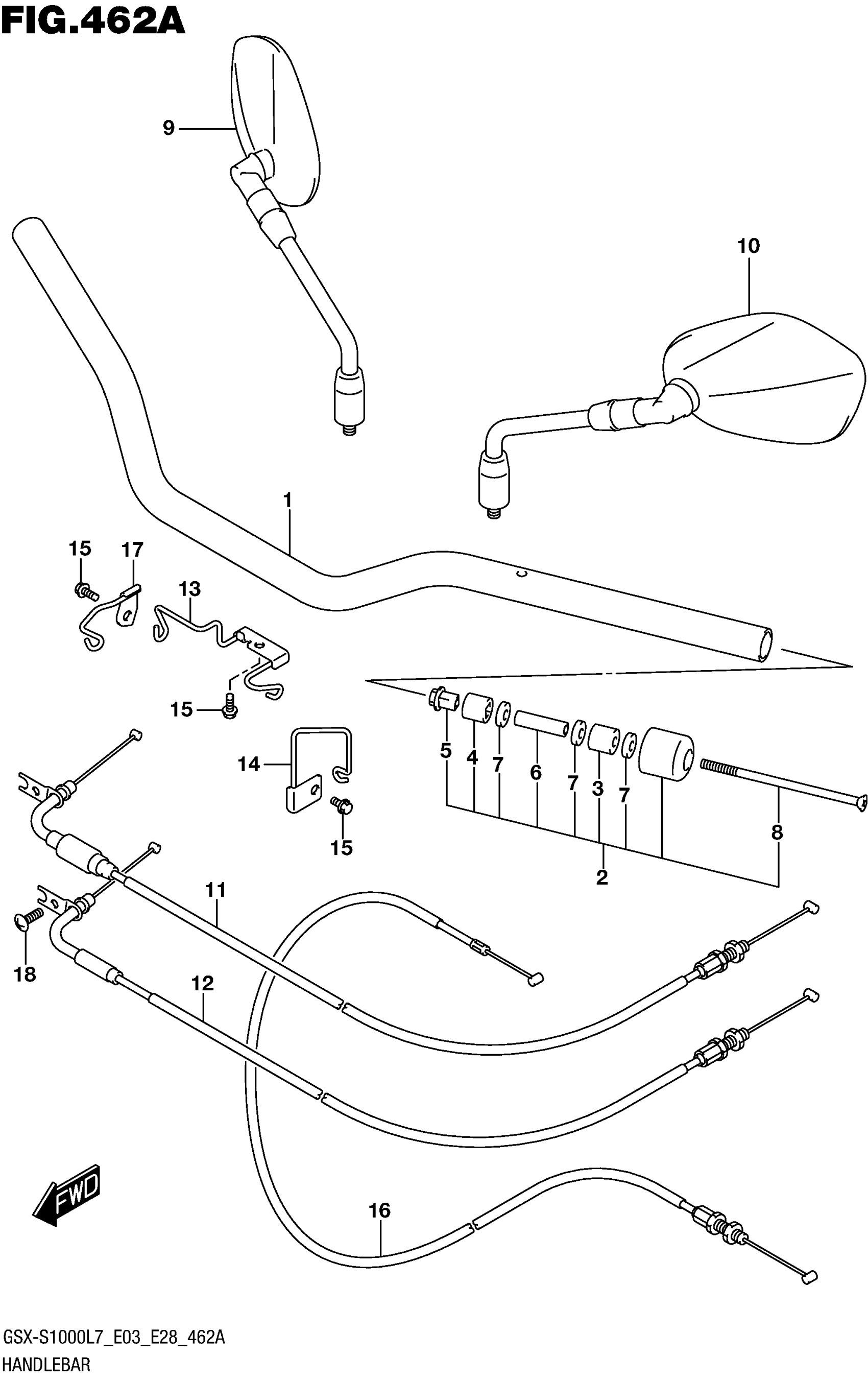

2017 Suzuki GSX-S1000AL7 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR This part replaces 56111-04K01.

56111-04K10

1
Out of stock

2

BALANCER SET,HA This part replaces 56200-03860.

56200-03861

2
Out of stock

3

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

4

.EXPANDER,HANDLE BALANCER

56272-42F00

2
Out of stock

5

.NUT, HANDLE BALANCER

56273-10G10

2
Out of stock

6

.SPACER (6.5X9X34)

09180-06356

2
Out of stock

7

.WASHER (6.5X16X4)

09160-06131

6
Out of stock

8

.SCREW (6X110)

09127-06018

2
Out of stock

9

MIRROR ASSY,REAR VIEW,R This part replaces 56500-08J11.

56500-08J12

1
Out of stock

10

MIRROR ASSY,REAR VIEW,L This part replaces 56600-08J11.

56600-08J12

1
Out of stock

11

CABLE ASSY,THRO This part replaces 58300-04K00.

58300-04K02

1
Out of stock

12

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-04K10.

58300-04K12

1
Out of stock

13

GUIDE,CABLE NO.1

58620-04K00

1
Out of stock

14

GUIDE,CABLE NO.2

58630-04K00

1
Out of stock

15

BOLT

01547-0612B

3
Out of stock

16

CABLE ASSY,CLUTCH This part replaces 58200-04K00.

58200-04K01

1
Out of stock

17

GUIDE, CLUTCH CABLE

58640-04K00

1
Out of stock

18

SCREW

02142-0510B

1
Out of stock
