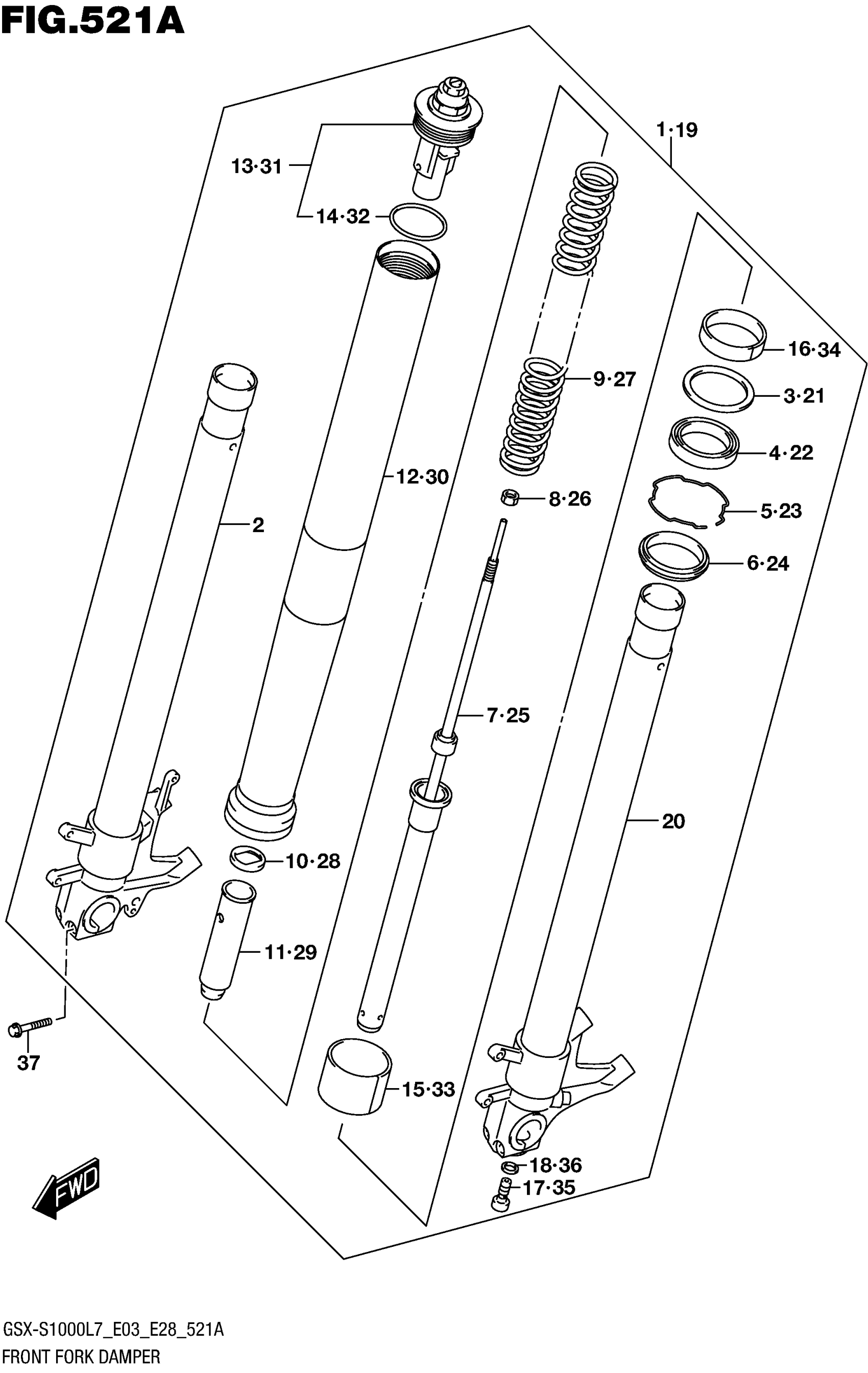

Suzuki GSX-S1000AL7 (2017) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-04K00

Unavailable

2

TUBE,INNER RH This part replaces 51110-04K00.

51110-04K01

$572.30

3

.WASHER

51158-14200

$4.75

4

.OIL SEAL

51153-44G00

$29.36

5

.RING, OIL SEAL STOPPER

51156-14200

$4.63

6

.SEAL, DUST

51173-02FA0

$24.34

7

.CYLINDER

51146-04K00

$398.08

8

.NUT, ROD

51352-13A60

$3.42

9

.SPRING

51171-04K00

$71.50

10

.GUIDE, SPRING

51158-40F30

$11.75

11

.SPACER, SPRING

51176-40F30

$29.78

12

.TUBE,OUTER

51131-04K00

$428.72

13

.CAP

51351-04K00

Unavailable

14

..O RING

62278-14100

$3.69

15

.PISTON

51112-31J00

$12.25

16

.SLIDEMETAL

51152-31J00

$11.72

17

.BOLT

51147-24F50

$9.87

18

.GASKET

51148-41310

$2.14

19

DAMPER ASSY,FRO This part replaces 51104-04K00.

51104-04K01

$1,598.87

20

.TUBE, INNER LH

51120-04K00

$755.18

21

.WASHER

51158-14200

$4.75

22

.OIL SEAL

51153-44G00

$29.36

23

.RING, OIL SEAL STOPPER

51156-14200

$4.63

24

.SEAL, DUST

51173-02FA0

$24.34

25

.CYLINDER

51146-04K00

$398.08

26

.NUT, ROD

51352-13A60

$3.42

27

.SPRING

51171-04K00

$71.50

28

.GUIDE, SPRING

51158-40F30

$11.75

29

.SPACER, SPRING

51176-40F30

$29.78

30

.TUBE,OUTER

51131-04K00

$428.72

31

.CAP

51351-04K00

Unavailable

32

..O RING

62278-14100

$3.69

33

.PISTON

51112-31J00

$12.25

34

.SLIDEMETAL

51152-31J00

$11.72

35

.BOLT

51147-24F50

$9.87

36

.GASKET

51148-41310

$2.14

37

BOLT

51166-24F60

$5.10
