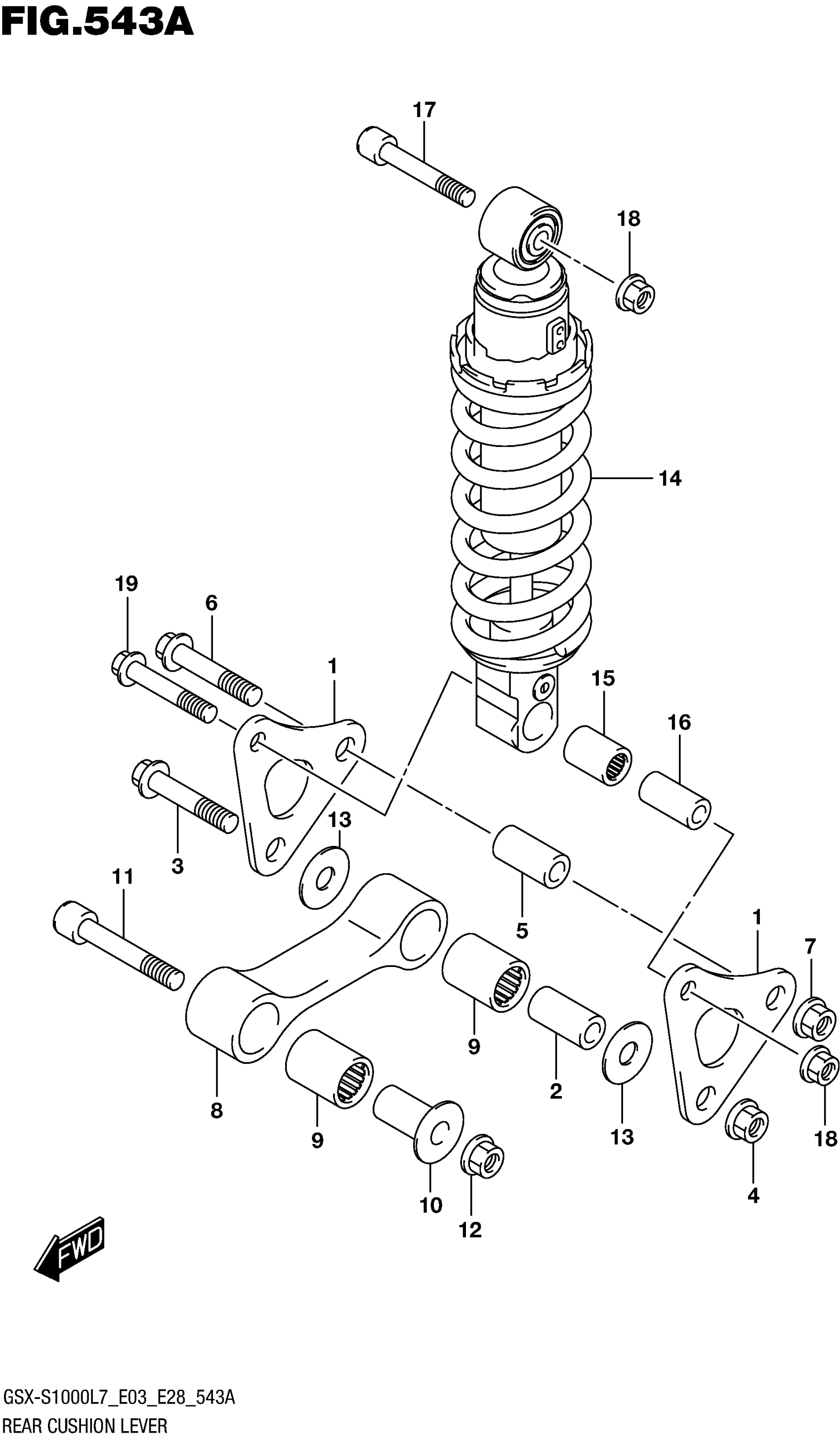

Suzuki GSX-S1000AL7 (2017) REAR CUSHION LEVER (GSX-S1000L7 E33) Diagram

#

Description
Price

1

LEVER, REAR CUSHION

62611-04K00

$15.75

2

SPACER, LOWER

62317-27C10

$15.78

3

BOLT, LOWER

62668-42A02

$12.03

4

NUT

09159-12056

$6.65

5

SPACER, UPPER

62317-44B00

$23.73

6

BOLT, UPPER

62668-42A02

$12.03

7

NUT

09159-12056

$6.65

8

ROD SET,RR CUSHION This part replaces 62641-31J00.

62600-31850

$98.65

9

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

10

SPACER, ROD

62647-47H00

$39.83

11

BOLT,RR CUSHION ROD

62658-04K00

$16.23

12

NUT

09159-12056

$6.65

13

WASHER (12X34X1)

09160-12037

$3.52

14

ABSORBER ASSY, REAR SHOCK

62100-04K10-17U

$779.65

14

(GRAY)

62100-04K10-17U

$779.65

15

BEARING (17X24X32)

09263-17046

$45.05

16

SPACER, SHOCK ABS LOWER

62317-47H00

$23.08

17

BOLT, RR SHOCK ABS UPPER

62658-04K10

$16.23

18

NUT

09159-10115

$3.21

19

BOLT (10X58)

09103-10428

$5.52
