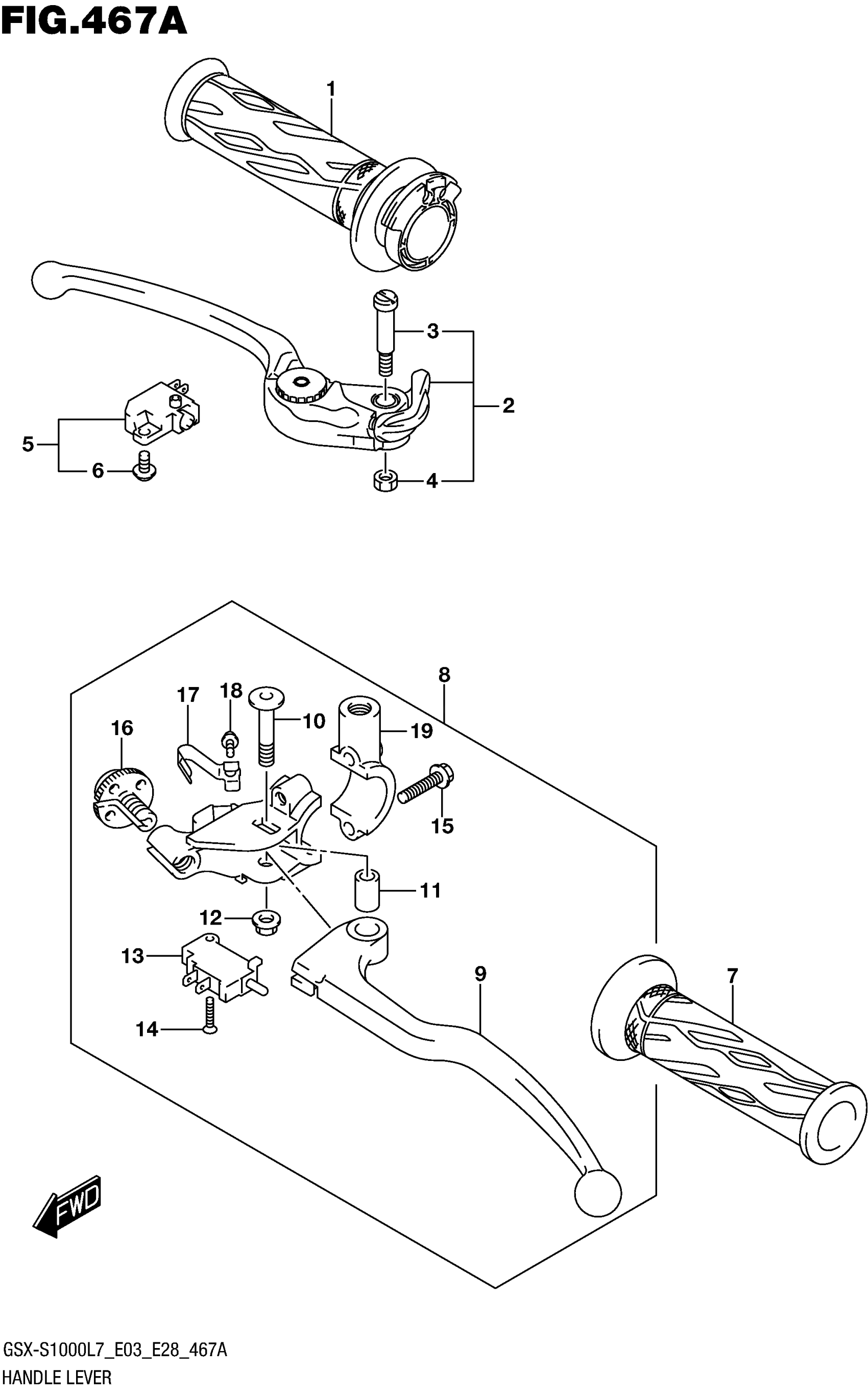

Suzuki GSX-S1000AL7 (2017) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

LEVER ASSY, BLAKE

57300-29G30

$60.50

3

.BOLT, PIVOT

57431-29G00

$8.52

4

.NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

6

.SCREW

57465-17C00

$2.37

7

GRIP, LH

57211-21H01

$10.18

8

LEVER ASSY,CLUT This part replaces 57500-41G30.

57500-41G31

$111.38

9

.LEVER, CLUTCH

57621-41G00

$32.96

10

.BOLT

57431-41G00

$10.96

11

.COLLAR

57532-41G00

$18.07

12

NUT

08319-3106A

$2.01

13

.SWITCH ASSY, CLUTCH

57560-41G20

$20.93

14

.SCREW,CLUTCH SWITCH

57562-41G21

$7.63

15

.BOLT

01547-0625B

$2.43

16

.NUT, CABLE ADJUSTER

57641-33E21

$46.38

17

.SPRING

57644-33E00

$8.54

18

.SCREW, SPRING

57642-33E00

$4.53

19

.HOLDER,CLUTCH LEVER

57512-41G00

$35.33
