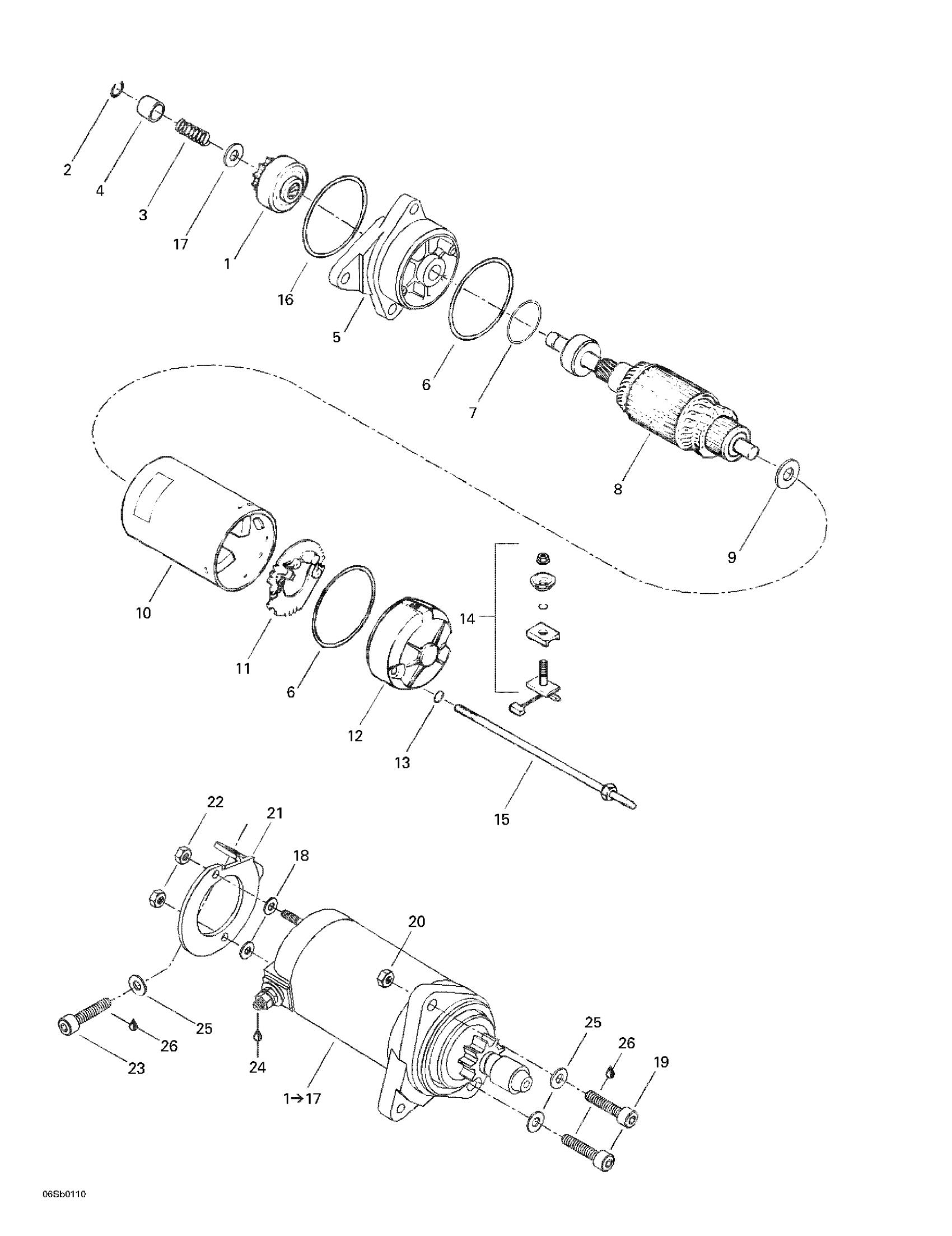

Sea-doo GSX RFI, 5549, 2001 Starter Diagram

#

Description
Price

1

STARTER ASS'Y - Call your local BRP dealership | Includes 1 to 18

278001936

Unavailable

1

STARTER CLUTCH ASS'Y - Call your local BRP dealership

278001106

Unavailable

2

SNAP RING - Call your local BRP dealership

410207700

Unavailable

3

Spring

278000050

Unavailable

4

Stopper Bushing

278000254

Unavailable

5

Housing Ass'y

278001520

Unavailable

6

O-Ring

278000695

$12.49

7

O-Ring Kit This part replaces 278000696.

415129342

$12.49

8

Armature

278001108

Unavailable

9

THRUST WASHER - Call your local BRP dealership

278000056

Unavailable

10

YOKE ASS'Y - Call your local BRP dealership

278001109

Unavailable

11

Brush Holder

278001296

$36.54

12

Rear Cover

278001111

Unavailable

13

O-RING - Call your local BRP dealership

278000060

Unavailable

14

BRUSH STARTER KIT - Call your local BRP dealership

278001298

Unavailable

15

RETAINER STUD - Call your local BRP dealership

278000170

Unavailable

16

O-RING - Call your local BRP dealership

278000694

Unavailable

17

WASHER PLATE - Call your local BRP dealership

278001105

Unavailable

18

Flat Washer M5, Stainless

234051600

$0.73

19

Socket Head Screw M8 X 45

205084560

$3.22

20

Hex. Elastic Nut M8

232581600

$1.43

21

STARTER SUPPORT - Call your local BRP dealership

270000467

Unavailable

22

Hex. Elastic Nut M5 | X

232551600

$1.04

23

Socket Head Screw M8 X 16

205081660

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

25

Stainless, Flat Washer 8 mm

234081600

$0.52

26

Loctite 262, 50 ml

413705200

Unavailable
