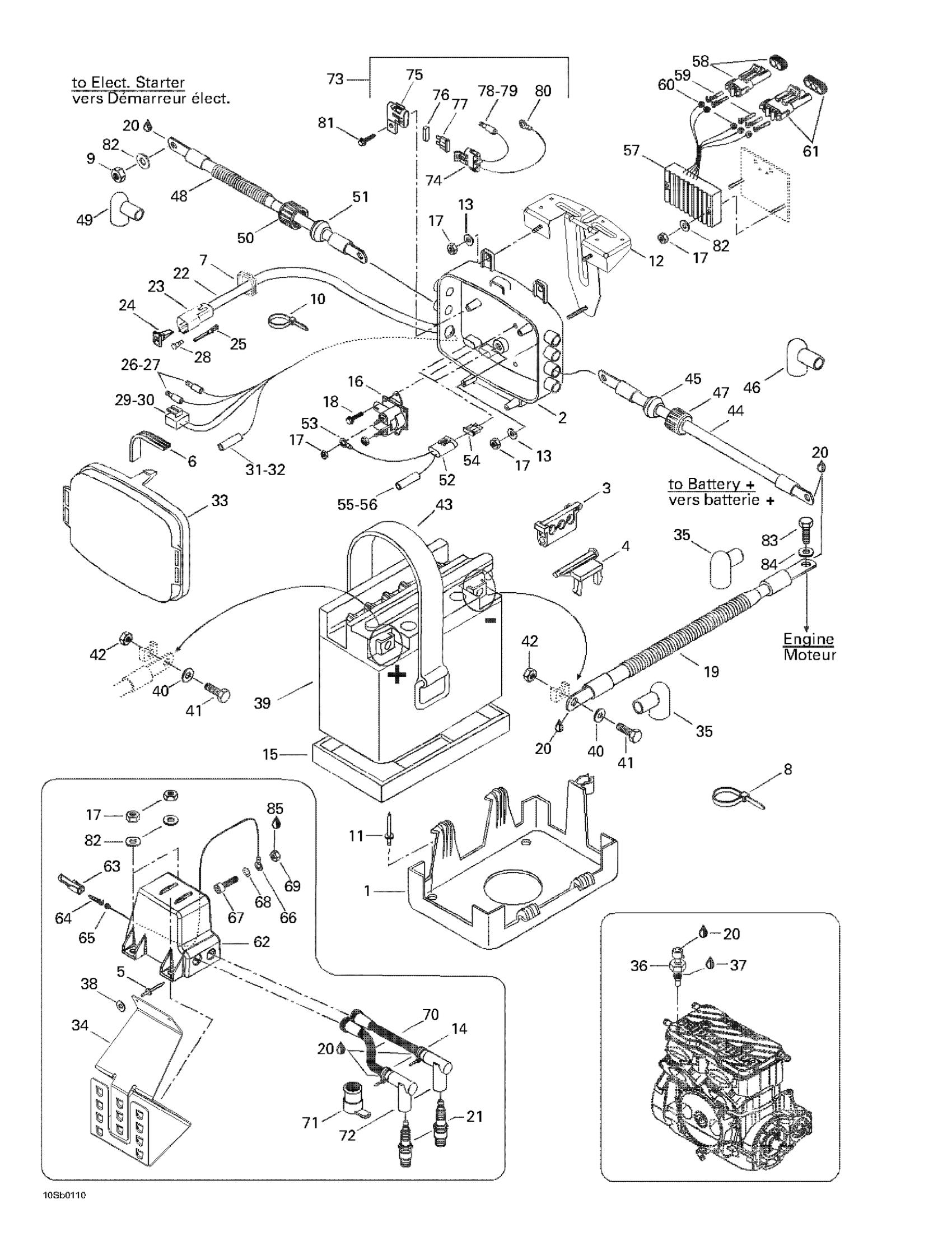

Sea-doo GSX RFI, 5549, 2001 Electrical Box And Battery Diagram

#

Description
Price

1

Battery Support

278001233

Unavailable

2

ELECTRIC BOX BASE - Call your local BRP dealership

278001425

Unavailable

3

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

4

Collar Support

278001096

Unavailable

5

Pop Rivet 3/16"

293150043

$1.85

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

$1.01

Tie Wrap 368 mm

293750008

$0.97

9

Hex. Elastic Stop Nut M6

232561600

$1.06

10

Tie Wrap 94 mm | 4X4

293750001

$0.96

11

Avdel Rivet 3/16"

293150037

$0.54

12

Box Support

278001418

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.73

14

Tie Wrap 142 mm

293750002

$1.01

15

Battery Lower Pad

278001234

Unavailable

16

Starter Relay

278003012

$40.27

17

Hex. Elastic Stop Nut M6

232561600

$1.06

18

Hex. Flange Screw M6 X 10

210261040

$1.43

19

Ground Cable

278001446

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.63

22

Electric Box Harness | Includes 22 - 32.

278000945

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$17.88

24

Female Lock, 6 Circuits

278000735

$2.93

25

Male Terminal

278000631

$4.00

26

Male Terminal

278000230

$4.00

27

Insulated Sheath

278001008

$3.10

28

Sealing Cap

293000052

$2.93

29

Male Connector, 2 Circuits

278001113

$14.52

30

Female Terminal

278001114

$2.93

31

Female Terminal | DS 650 X

278001009

$2.93

32

Insulated Sheath

278001007

$3.12

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

34

Coil Support

278001412

Unavailable

35

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

36

Temperature Sensor

278002895

$36.54

37

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

38

Flat Washer | XT

211200035

$0.52

39

Battery 19A | Includes 5 to 8

278001756

$144.75

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.70

42

Hex. Nut M6

232061414

$0.51

43

Retainer Strap

293850097

$10.63

44

Battery (Cable (Red) | Includes 44 - 47.

278001445

Unavailable

45

GROMMET - Call your local BRP dealership

278000098

Unavailable

46

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

Startor Cable (Red) | Includes 59 - 62.

278001444

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Electric Wire Cap

278000100

Unavailable

51

GROMMET - Call your local BRP dealership

278000098

Unavailable

52

Fuse Harness (20 Amperes) | Includes 52 - 56.

278001142

Unavailable

53

Ring Terminal

278000300

Unavailable

54

Fuse, 20 Amperes

409003900

$3.12

55

Female Terminal | DS 650 X

278001009

$2.93

56

Insulated Sheath

278001007

$3.12

57

Rectifier Ass’Y | Includes 30 - 34.

278001554

$185.04

58

Male Connector, 2 Circuits

278000220

$12.66

59

Female Terminal

409007300

$0.42

60

Wire Seal

278000218

$4.00

61

Male Housing, 3 Circuits

278000273

$8.72

62

IGNITION COIL ASSY - Call your local BRP dealership | Includes 32 to 44

278001545

Unavailable

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Female Housing, 1 Circuit

278000161

$8.72

64

Male Terminal

409004300

$5.30

65

Wire Seal

278000218

$4.00

66

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

67

Socket Head Screw M6 X 20

205062044

$1.22

68

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

69

Elastic Stop Nut M6

232561414

$1.78

70

Spark Plug Wire, 270 mm

278001464

Unavailable

Spark Plug Wire

278001465

Unavailable

71

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

72

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

73

Fuse Harness | Includes 73 - 80.

278001384

Unavailable

74

Fuse Holder

278001325

$8.31

75

Fuse Holder Cap

278001326

$5.85

76

Cushion

278000805

$3.12

77

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

78

Male Terminal

278000230

$4.00

79

Insulated Sheath

278001008

$3.10

80

Ring Terminal

278000300

Unavailable

81

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

82

Stainless Flat Washer M6

234061600

$0.28

83

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

84

Stainless, Flat Washer 8 mm

234081600

$0.52

85

Loctite 271, 10 ml

293800005

$23.85
