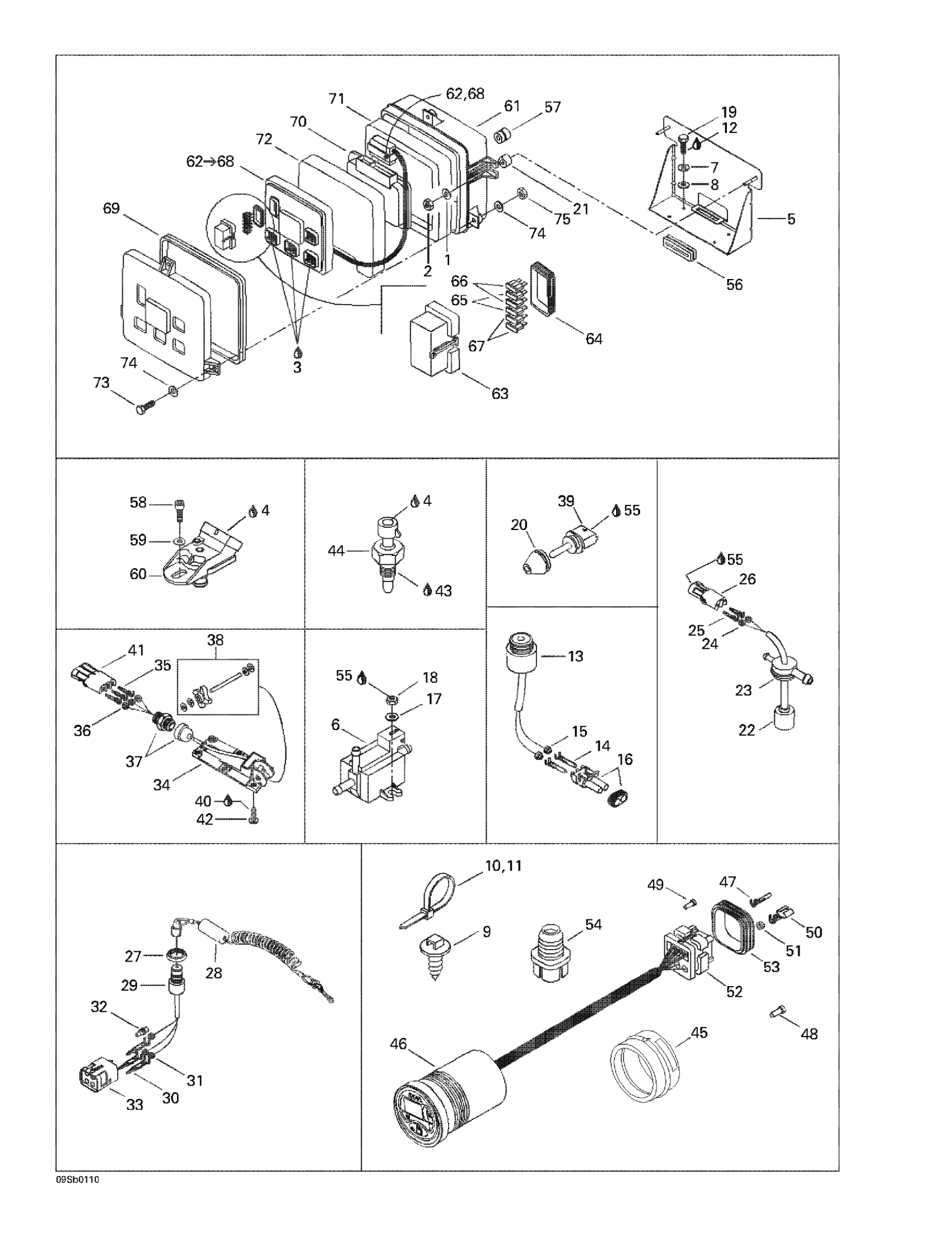

Sea-doo GSX RFI, 5549, 2001 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

$0.73

2

Hex. Elastic Stop Nut M6

232561600

$1.06

3

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

4

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

5

Box Support Ass'y

278001139

Unavailable

6

Solenoid Valve

270600005

$45.49

7

Helical Lock Washer M5

234151601

$1.04

8

Flat Washer 5 mm, Stainless

234052600

$0.73

9

Mount Dart

293730040

$0.99

10

Tie Wrap 142 mm

293750002

$1.01

11

Tie-Rap 180 mm

414115200

$0.10

12

Loctite 271, 10 ml

293800005

$23.85

13

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$2.93

15

Wire Seal

278000218

$4.00

16

Male Connector, 2 Circuits

278000220

$12.66

17

Flat Washer M5, Stainless

234051600

$0.73

18

Hex. Elastic Nut M5 | X

232551600

$1.04

19

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

20

INSULATOR - Call your local BRP dealership

278001054

Unavailable

21

SPACER - Call your local BRP dealership

272000074

Unavailable

22

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

23

Grommet

293720008

$12.52

24

Wire Seal

278000218

$4.00

25

Male Terminal | XT Models

278000222

$2.93

26

Female Housing, 2 Circuits

278000217

$8.72

27

Safety Nut (DESS Switch)

278002963

$3.12

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$2.93

31

Wire Seal

278000218

$4.00

32

Wire Seal

278000216

$2.93

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

Male Terminal | XT Models

278000222

$2.93

36

Wire Seal

278000218

$4.00

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Paddle Wheel Kit

295500108

Unavailable

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

40

Loctite 243, 10 ml

293800060

$21.49

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

42

Phillips Screw M5 x 12

250000319

$1.18

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

44

Temperature Sensor

278002895

$36.54

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 46 - 54.

278001542

Unavailable

47

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

48

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

49

SEAL - Call your local BRP dealership

409013900

Unavailable

50

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

51

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

52

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

53

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

54

GROMMET - Call your local BRP dealership

293720042

Unavailable

55

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

56

Insulator

278001259

Unavailable

57

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

58

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

59

Stainless Flat Washer M6

234061600

$0.28

60

Pressure Sensor

270600040

$181.31

61

Electronic Module Ass'y | Includes 61 - 75.

278001535

Unavailable

61

Electronic Box Base

278000938

Unavailable

62

Electronic Module | Includes 62 - 68.

278001529

Unavailable

62

Wire Seal

278000999

$2.93

63

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

64

Cover Seal

278001070

Unavailable

65

Fuse, 5 Amperes | CE

278000344

$3.12

66

Fuse, 15 Amperes

278000343

$3.12

67

Fuse, 10 Amperes | North America

278001197

$2.06

68

Female Terminal

278000998

$4.00

69

Gasket

293250063

Unavailable

70

Electronic Module

278001530

Unavailable

71

Lower Foam

278000941

Unavailable

72

Top Foam

278001100

Unavailable

73

Hex. Screw M6 X 30

207063060

$1.73

74

Flat Washer M6, Stainless

234062600

$0.73

75

Hex. Elastic Stop Nut M6

232561600

$1.06
