1999 Suzuki GSX-R750X Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1999 Suzuki GSX-R750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

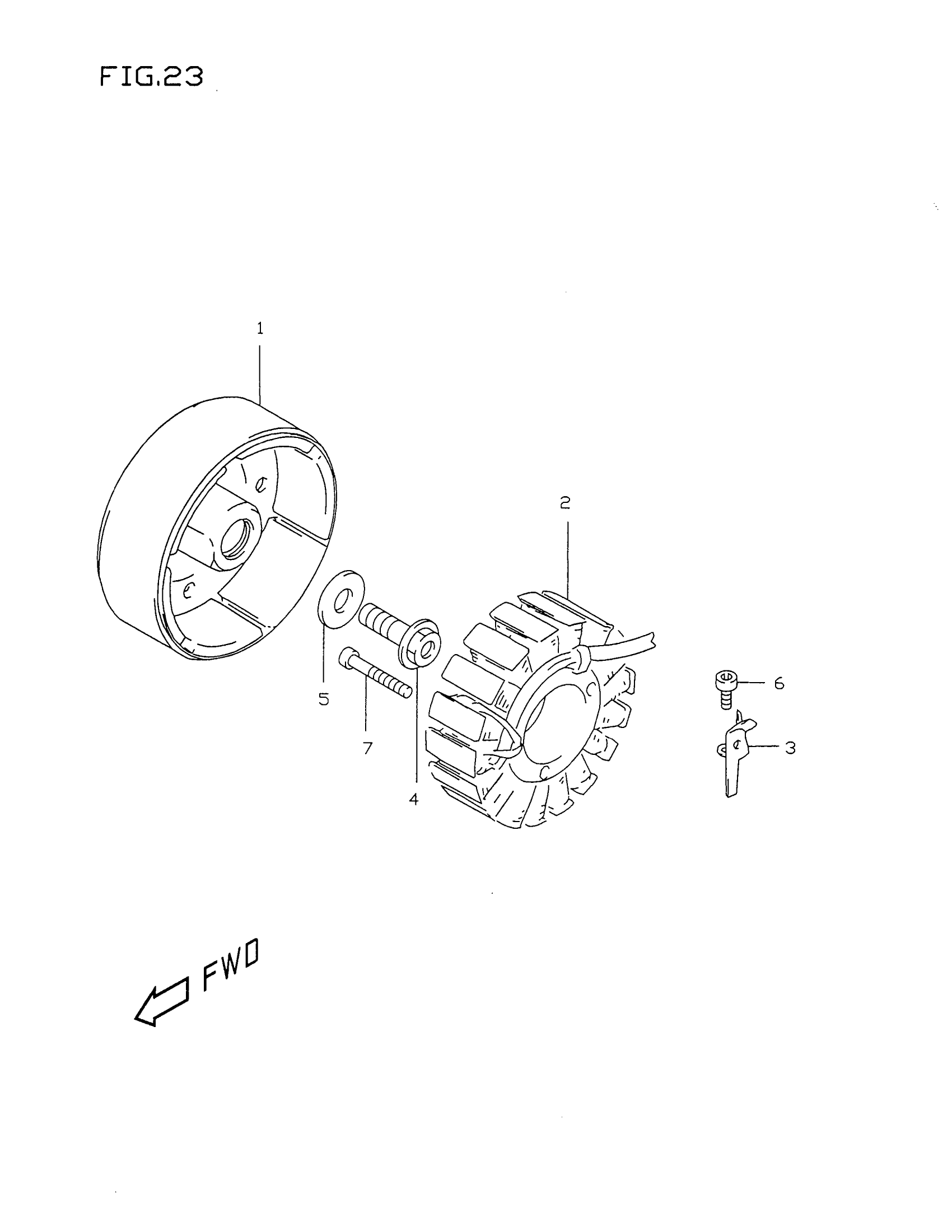

1999 Suzuki GSX-R750X Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR | MODEL T/V

31402-33E00

1
Out of stock

1

ROTOR | MODEL W/X

31402-33E10

1
Out of stock

2

STATOR ASSY | MODEL T/V

31401-33E00

1
Out of stock

2

STATOR ASSY | MODEL W/X

31401-33E10

1
Out of stock

3

CLAMP, MAG LEAD

32371-33E00

1
Out of stock

4

BOLT (12X30)

09103-12028

1
Out of stock

5

WASHER (12X30X3.0)

09160-12036

1
Out of stock

6

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

1
Out of stock

7

BOLT This part replaces 07130-06353.

07130-0635B

3
Out of stock
