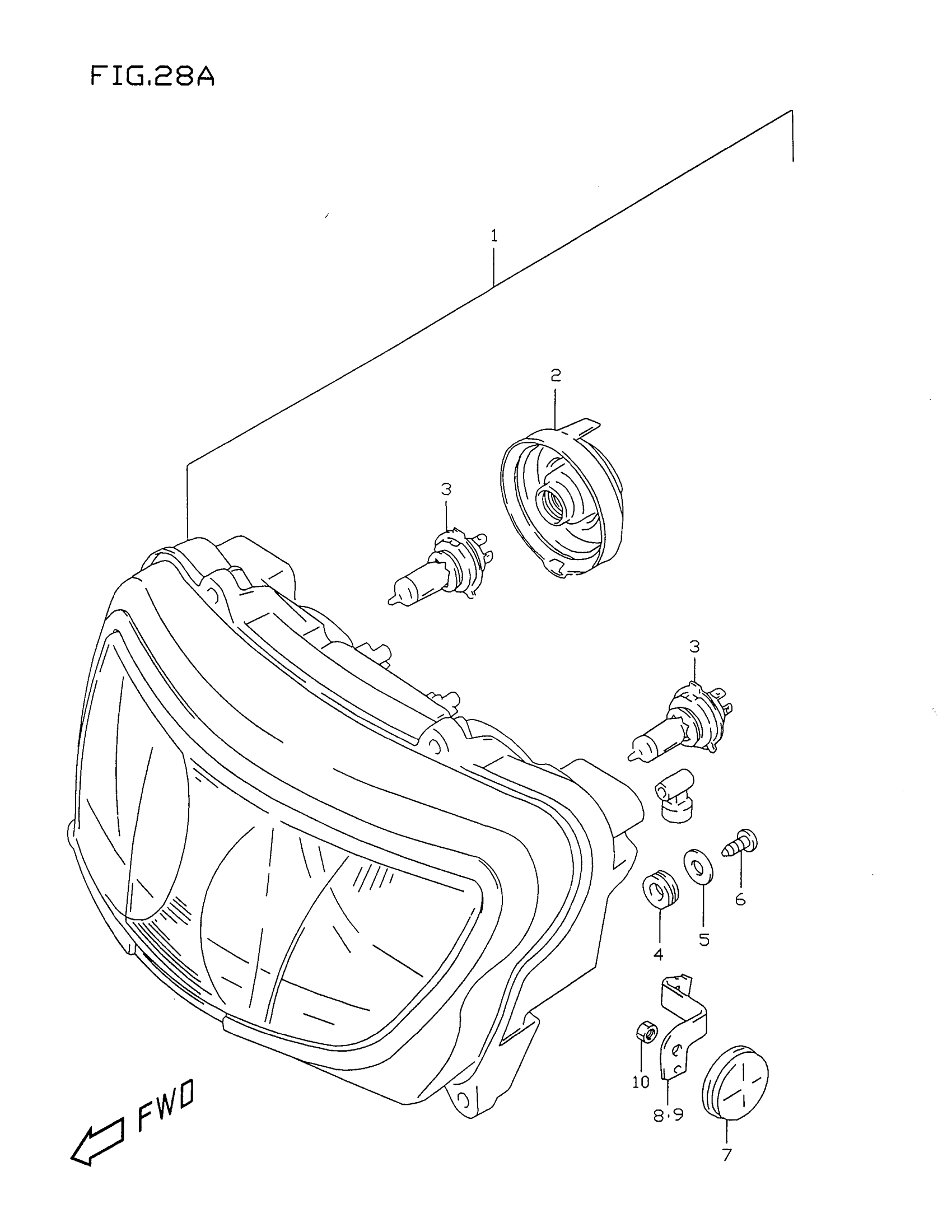

Suzuki GSX-R750X (1999) HEADLAMP (MODEL W/X) Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2

35100-33E10-999

Unavailable

2

COVER, SOCKET

35125-74F00

$19.52

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$22.69

4

CUSHION, NEED LAMP

35137-33E00

$4.83

5

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.95

6

SCREW This part replaces 03512-05163.

03511-0516A

$1.88

7

REFLEX-RREFLECTOR ASSY, FRONT

35950-14A00

$15.95

8

BRACKET, FRONT RH | MODEL W

35956-17D00

Unavailable

8

BRACKET, FRONT RH | MODEL X

35956-02F00

Unavailable

9

BRACKET, FRONT LH | MODEL W

35957-17D00

Unavailable

9

BRACKET, FRONT LH | MODEL X

35957-02F00

Unavailable

10

NUT This part replaces 08310-00053.

08310-0005A

$1.83
