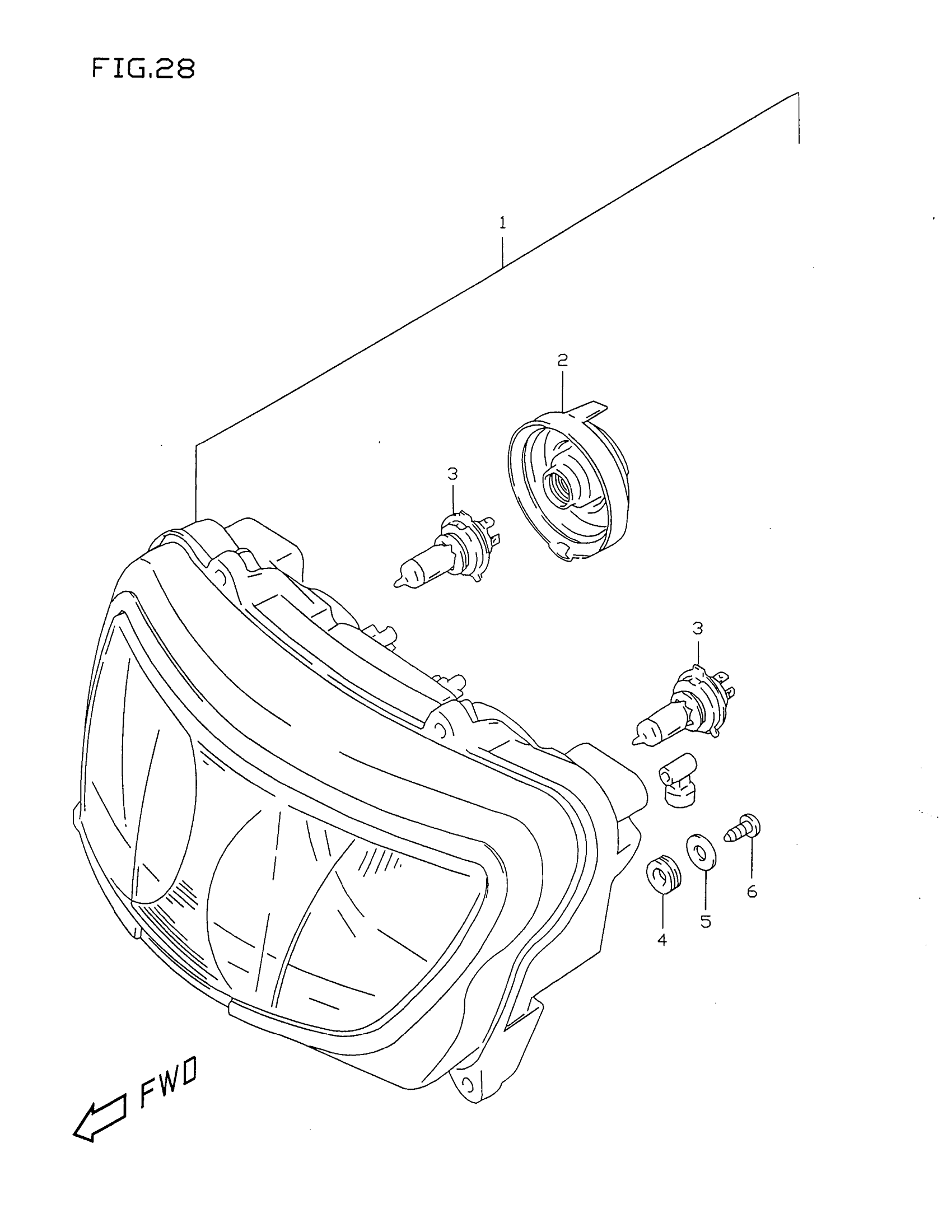

Suzuki GSX-R750X (1999) HEADLAMP (MODEL T/V) Diagram

#

Description

Price

1

HEADLAMP ASSY | MODEL T This part replaces 35100-33E00-999.

35100-33E02-999

Unavailable

1

HEADLAMP ASSY | MODEL V; Includes Item(s) 2

35100-33E02-999

Unavailable

2

COVER, SOCKET

35125-74F00

$19.52

3

BULB (12V,55/50W)

09471-12163

Unavailable

4

CUSHION, NEED LAMP

35137-33E00

$4.83

5

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.95

6

SCREW This part replaces 03511-05163.

03511-0516A

$1.88

7

REFER TO FIG.28A(G-8) FOR

SPECIAL NOTE

Unavailable
