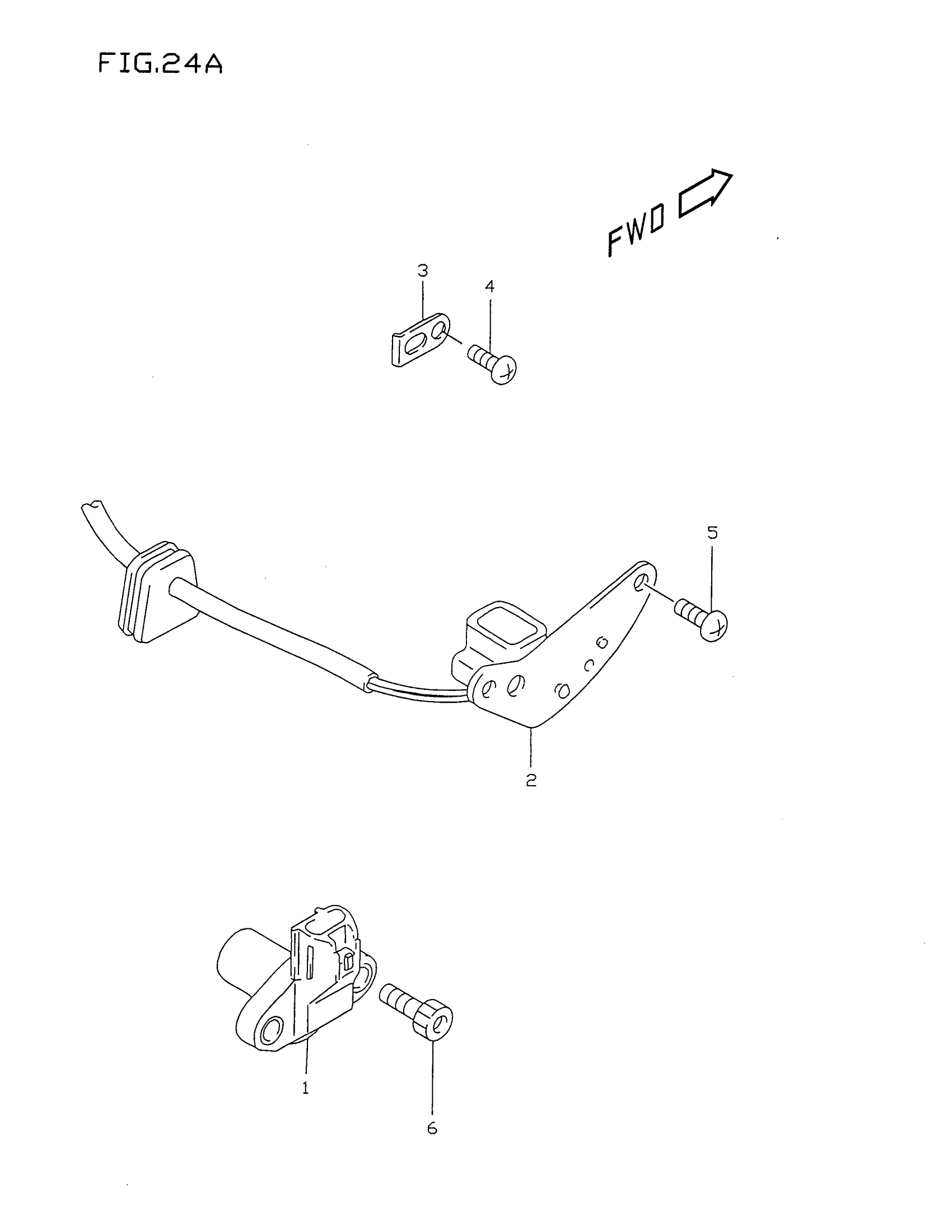

Suzuki GSX-R750X (1999) SIGNAL GENERATOR (MODEL W/X) Diagram

#

Description

Price

1

SENSOR ASSY, CAM POSITION

32160-02F00

Unavailable

2

STATOR, SIGNAL GENERATOR

33110-33E00

Unavailable

3

CLAMP, SIGNAL GENERATOR

33115-33E00

$5.10

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.43

5

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.43

6

BOLT This part replaces 07130-06163.

07130-0616B

$2.38
