1995 Suzuki GSX-R750W Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Suzuki GSX-R750W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

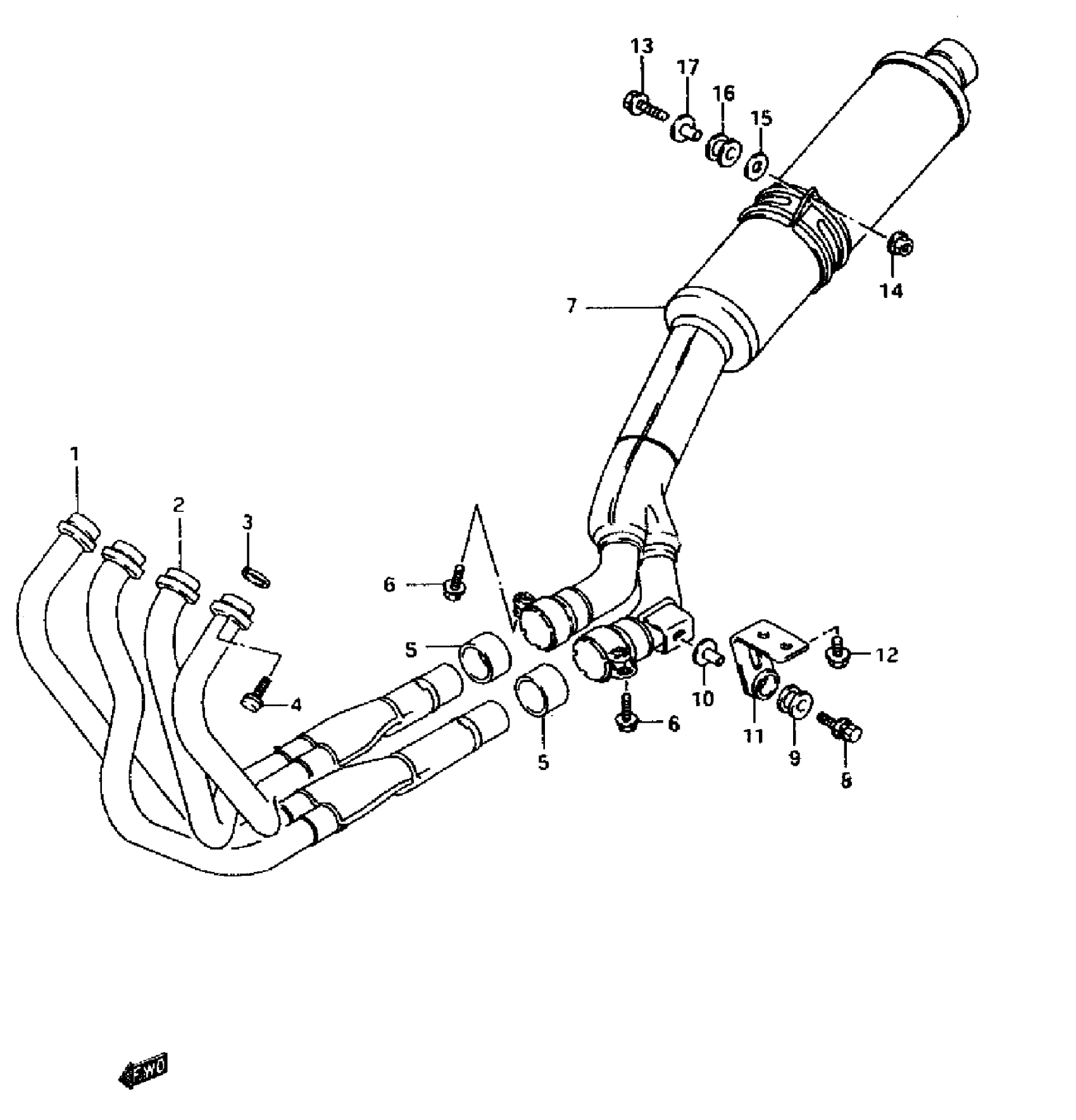

1995 Suzuki GSX-R750W Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST RH | MODEL P This part replaces 14150-17E30.

14150-18E00

1
Out of stock

1

PIPE, EXHAUST RH | MODEL R/S

14150-17ED0

1
Out of stock

2

PIPE. EXHAUST LH | MODEL P

14160-17E30

1
Out of stock

2

PIPE, EXHAUST LH | MODEL R/S

14106-17ED0

1
Out of stock

3

GASKET, EXHAUST PIPE

14181-17E00

4

$13.20

In stock

4

8

$3.26

In stock

4

8

$3.26

In stock

5

CONNECTOR, MUFFLER

14771-44B00

2

$27.57

In stock

6

2

$4.35

In stock

6

2

$2.96

In stock

7

BODY, MUFFLER | MODEL V This part replaces 14305-17E32-H01.

14305-17E14-H01

1
Out of stock

7

BODY, MUFFLER | MODEL RIS

14305-17E14-H01

1
Out of stock

9

CUSHION

09320-12048

1
Out of stock

10

SPACER

09180-08152

1
Out of stock

11

SPACER

14770-17E03

1
Out of stock

12

2

$2.42

In stock

12

2

$4.53

In stock

13

BOLT, MUF SPRT,RR | MODEL P This part replaces 01517-08457.

01550-08457

1
Out of stock

13

BOLT | MODEL R/S

01550-08457

1
Out of stock

14

NUT (CHROME) | MODEL P This part replaces 08316-16088.

08316-10087

1
Out of stock

14

NUT | MODEL R/S This part replaces 08361-25088.

08361-2508A

1
Out of stock

15

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

1
Out of stock

16

CUSHION

09320-12049

1
Out of stock

17

SPACER

09180-08156

1
Out of stock
