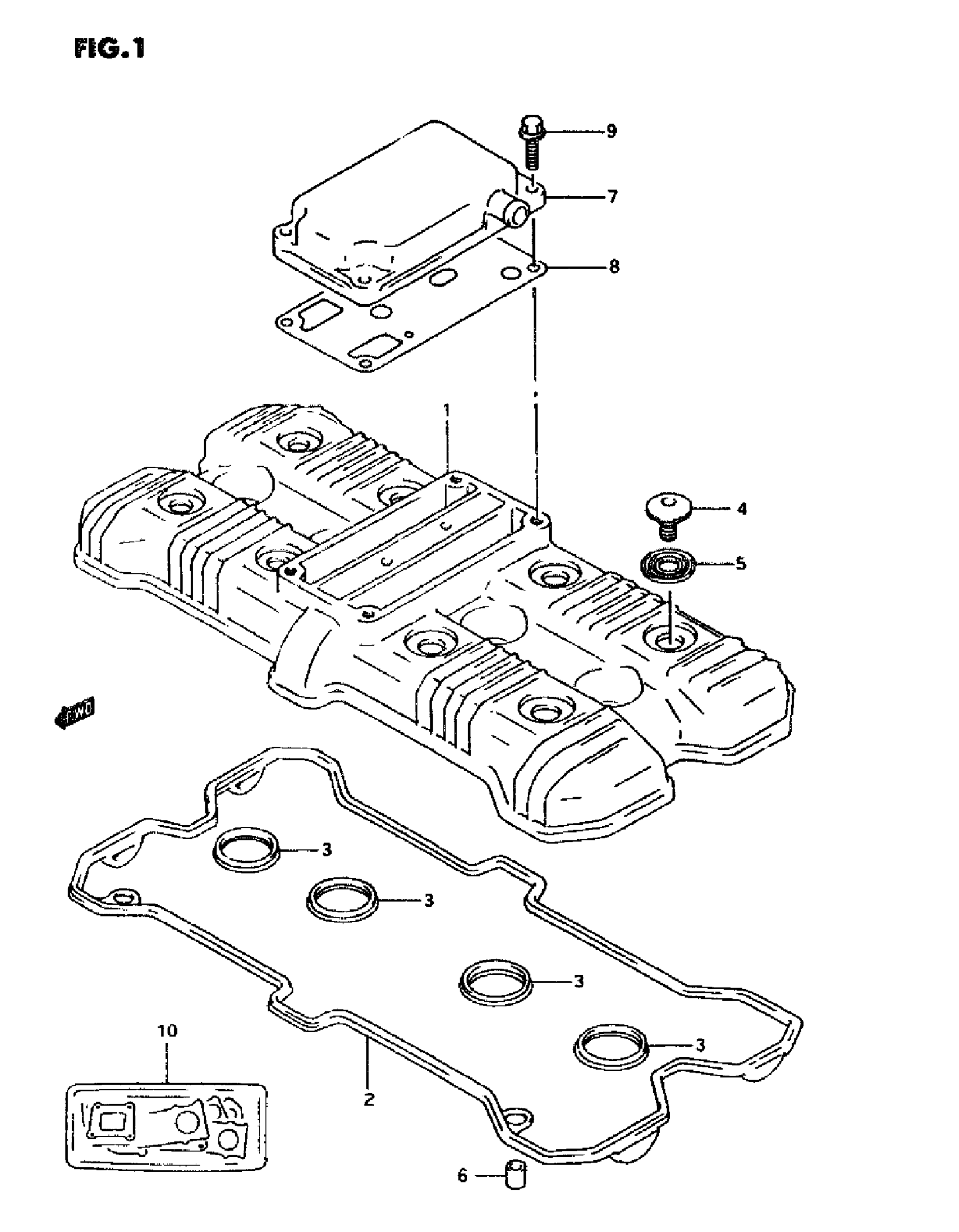

Suzuki GSX-R750W (1995) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | MODEL P This part replaces 11171-17E00.

11171-17E11

Unavailable

1

COVER, CYLINDER HEAD | MODEL R This part replaces 11171-17E10.

11171-17E11

Unavailable

1

COVER. CYLINDER HEAD | MODEL S

11171-17E11

Unavailable

2

GASKET, HEAD COVER NO.1

11173-17E00

Unavailable

3

GASKET, HEAD COVER NO.2

11178-17E00

$6.35

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.19

5

WASHER

09161-11008

$4.17

6

PIN

09206-08001

$1.82

7

COVER, BREATHER | MODEL P

11176-26D00

Unavailable

7

COVER. BREATHER | MODEL R/S

11176-31E00

Unavailable

8

GASKET, BTEATHER COVER

11177-17E00

$10.09

9

BOLT | MODEL P

01550-06257

$2.38

9

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$2.01

10

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 11400-17870.

11400-17875

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 11400-17873.

11400-17875

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 11400-17874.

11400-17875

Unavailable
