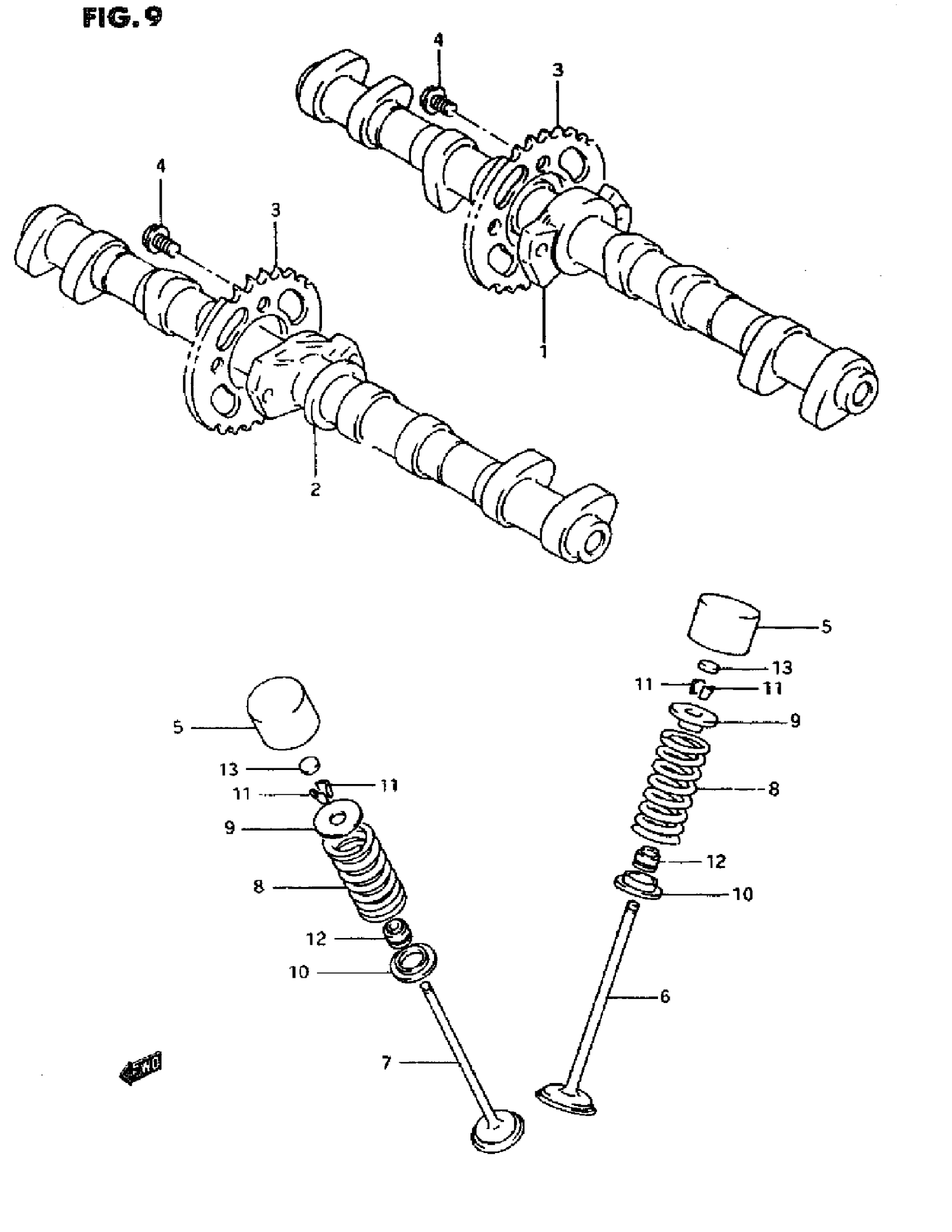

Suzuki GSX-R750W (1995) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAN SHAFT, INTAKE

12711-17E00

Unavailable

1

CAN SHAFT. INTAKE | CALIFORNIA ONLY

12711-17E10

Unavailable

2

CAN SHAFT, EXHAUST

12721-17E00

Unavailable

2

CAN SHAFT, EXHAUST | CALIFORNIA ONLY

12721-17E10

Unavailable

3

SPROCKET, CAM SHAFT

12741-17E00

Unavailable

4

BOLT

09103-07001

$2.51

5

TAPPET This part replaces 12891-17E00.

12891-47H00

$65.46

6

VALVE, INTAKE

12911-17E00

Unavailable

7

VALVE, EXHAUST This part replaces 12912-17E00.

12912-17E01

Unavailable

8

SPRING, VALVE

12921-17E00

Unavailable

9

RETAINER,VALVE SPRING | MODEL P/R: This part replaces 12931-17E00.

12931-17E01

Unavailable

9

RETAINER,VALVE SPRING | MODEL S This part replaces 12931-17E00.

12931-17E01

Unavailable

10

SEAT,VALVE SPRING

12933-17E00

Unavailable

11

COTTER, VALVE

12932-32C00

$2.14

12

OIL SEAL

09289-04002

$6.03

13

SHIM, TAPPET (T:1.20)

12892-05C00-120

$13.10

13

SHIM, TAPPET (T:1.25)

12892-05C00-125

$13.35

13

SHIM, TAPPET (T:1.30)

12892-05C00-130

$7.35

13

SHIM, TAPPET (T:1.35)

12892-05C00-135

$9.91

13

SHIM, TAPPET (7:1.40)

12892-05C00-140

$9.91

13

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.72

13

SHIM. TAPPET (T:1.50)

12892-05C00-150

$13.35

13

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.54

13

SHIM, TAPPET (T.-I.60)

12892-05C00-160

$9.54

13

SHIM, TAPPET (7:1.65)

12892-05C00-165

$9.54

13

SHIM, TAPPET (T:1.70)

12892-05C00-170

$13.10

13

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.72

13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$12.85

13

SHIM, TAPPET (T:1.85)

12892-05C00-185

$13.35

13

SHIM, TAPPET (T:1.90)

12892-05C00-190

$13.35

13

SHIM, TAPPET (T:1.95)

12892-05C00-195

$13.35

13

SHIM, TAPPET (T:2.00)

12892-05C00-200

$13.10

13

SHIM. TAPPET (T:2.05)

12892-05C00-205

$13.35

13

SHIM, TAPPET (T:2.10)

12892-05C00-210

$13.35

13

SHIM TAPPET (T:2.15)

12892-05C00-215

$13.35

13

SHIM, TAPPET (T:2.20) | B14

12892-05C00-220

$13.35

14

SHIM SET, TAPPET This part replaces 12800-05820.

12800-05830

$1,322.82

15

CASE. TAPPET SHIM | A"

99000-69491

Unavailable
