2012 Suzuki GSX-R750L2 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2012 Suzuki GSX-R750L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

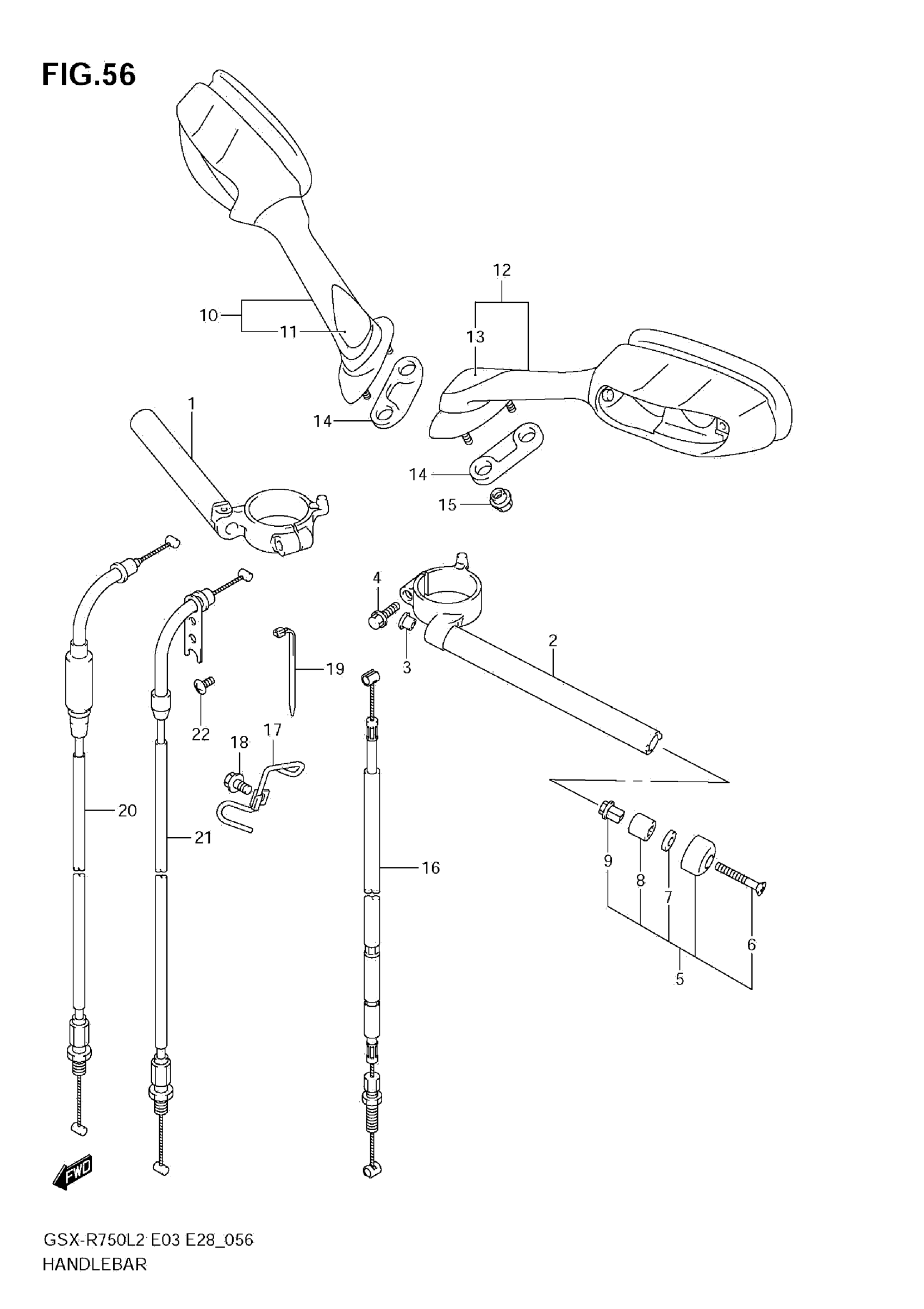

2012 Suzuki GSX-R750L2 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR,R

56111-14J00

1
Out of stock

2

HANDLEBAR,L

56151-14J00

1
Out of stock

3

CAP,HANDLEBAR

56131-29G00

2
Out of stock

4

BOLT (8X32)

09106-08185

2
Out of stock

5

BALANCER SET,HANDLEBAR This part replaces 56200-41822.

56200-41823

2
Out of stock

6

SCREW

02122-0640B

2
Out of stock

7

WASHER (6.5X16X4)

09160-06131

2
Out of stock

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

9

NUT

56273-10G10

2
Out of stock

10

MIRROR ASSY,RR VIEW,R

56500-47H01

1
Out of stock

11

.CAP,R

56515-47H01

1
Out of stock

12

MIRROR ASSY,RR VIEW,L

56600-47H01

1
Out of stock

13

.CAP,L

56615-47H01

1
Out of stock

14

CUSHION,RR VIEW MIRRROR,R

94575-14J00

2
Out of stock

15

NUT,RR VIEW MIRROR

56619-41G01

4
Out of stock

16

CABLE ASSY,CLUTCH

58200-14J00

1
Out of stock

17

GUIDE,CABLE

58620-14J00

1
Out of stock

18

BOLT

01547-0612A

1
Out of stock

19

CLAMP (L:154)

09407-17403

1
Out of stock

20

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-14J00.

58300-14J01

1
Out of stock

21

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-14J10.

58300-14J11

1
Out of stock

22

SCREW (5X10)

09125-05042

1
Out of stock
