2012 Suzuki GSX-R750L2 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2012 Suzuki GSX-R750L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

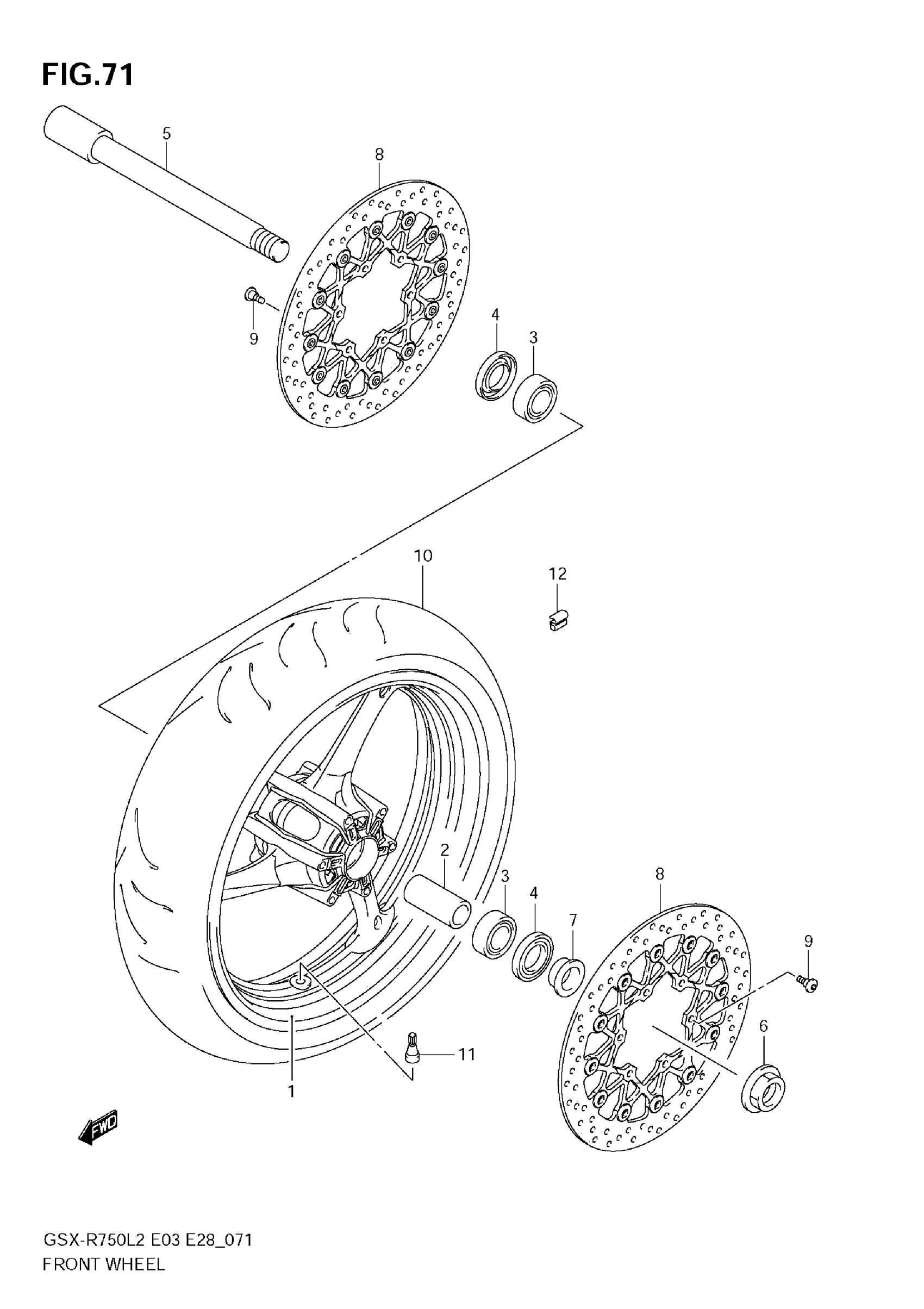

2012 Suzuki GSX-R750L2 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (17M/CXMT3.50)

54111-14J00-019

1
Out of stock

2

SPACER, HUB BEARING

54731-14J00

1
Out of stock

3

BEARING This part replaces 09262-22035.

09262-22049

2
Out of stock

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

2
Out of stock

5

AXLE,FR

54711-14J00

1
Out of stock

6

NUT, AXLE

62994-47H00

1
Out of stock

7

SPACER,FR AXLE,L

54751-14J00

1
Out of stock

8

DISC,FR BRAKE

59210-37H01

2
Out of stock

9

BOLT (6X21)

09106-06124

12
Out of stock

10

TIRE, FRONT

55110-15J00

1
Out of stock

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

12

BALANCER, WHEEL NO.1

55411-22H00

1
Out of stock

12

BALANCER, WHEEL NO.2

55412-22H00

1
Out of stock

12

BALANCER, WHEEL NO.3

55413-22H00

1
Out of stock
