Description

Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$19.46

2

LEVER ASSY, BRAKE

57300-29G30

$62.31

3

BOLT, PIVOT

57431-29G00

$8.91

4

NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

6

SCREW

57465-17C00

$2.37

7

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$10.65

8

LEVER ASSY,CLUT This part replaces 57500-41G20.

57500-41G21

$116.58

9

LEVER, CLUTCH

57621-41G00

$33.94

10

BOLT

57431-41G00

$11.46

11

COLLAR

57532-41G00

$18.88

12

NUT

08319-3106B

$2.56

13

SWITCH ASSY, CLUTCH

57560-41G20

$21.87

14

.SCREW,CLUTCH SWITCH This part replaces 57562-41G20.

57562-41G21

$7.97

15

..BOLT

01547-0620B

$2.50

16

NUT, CABLE ADJUSTER

57641-33E21

$46.38

17

SPRING

57644-33E00

$8.93

18

SCREW, SPRING

57642-33E00

$4.53

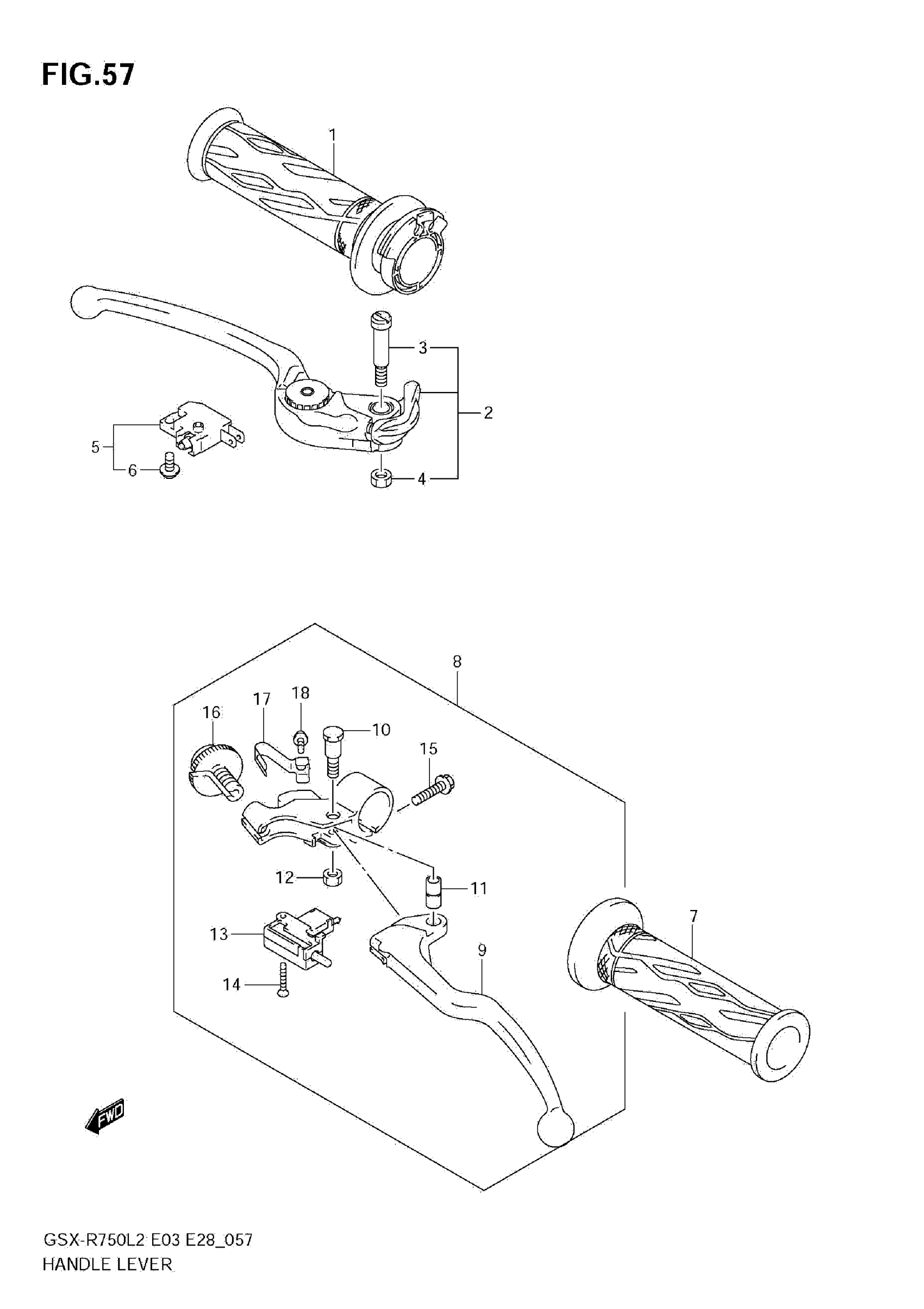

Suzuki GSX-R750L2 (2012) HANDLE LEVER Diagram
