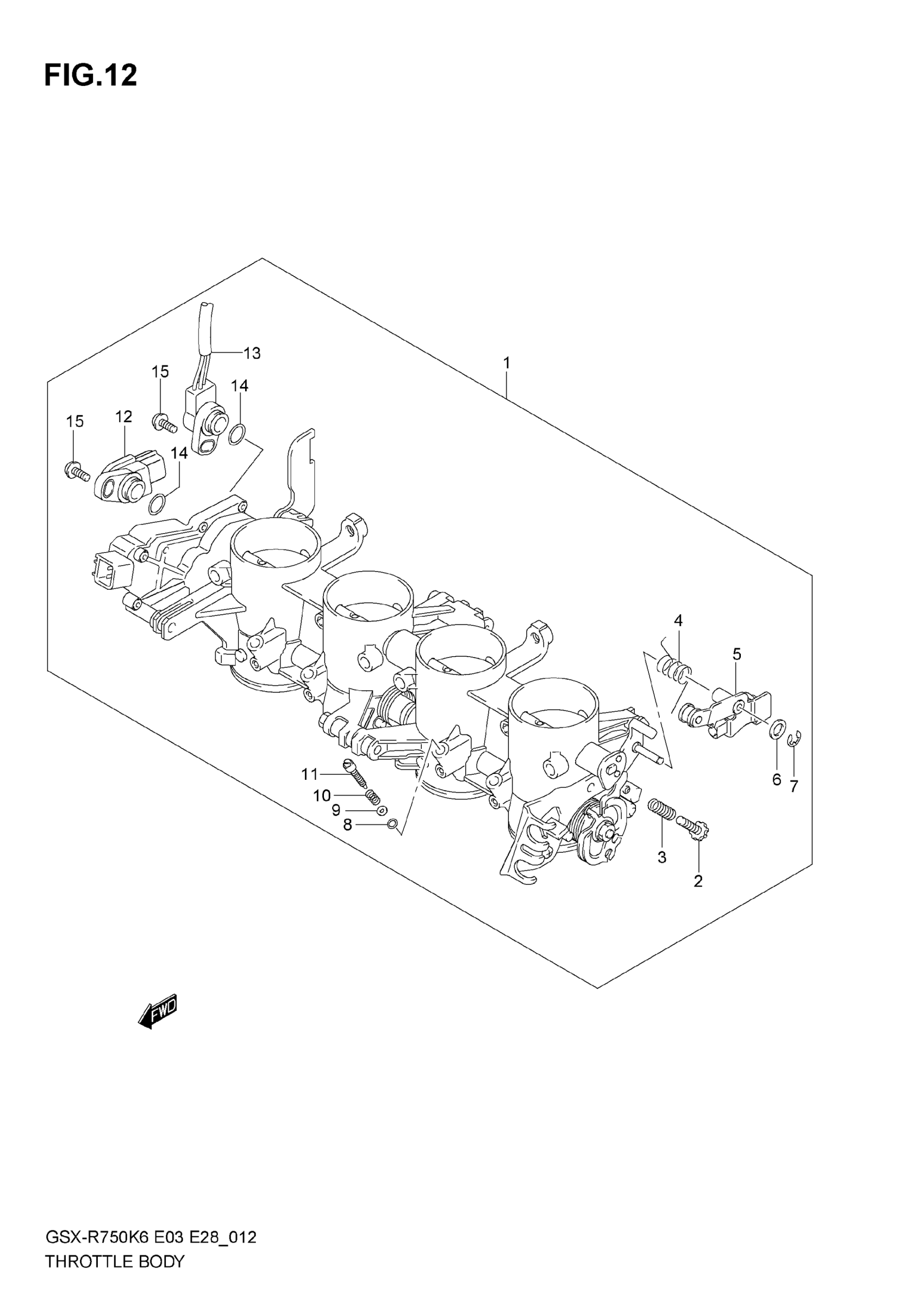

Suzuki GSX-R750 (2007) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT | E3/E28 This part replaces 13405-02H00.

13405-02H02

Unavailable

1

BODY ASSY, THROTTLE | E33; Includes Item(s) 2 - 15

13405-02H10

Unavailable

2

SCREW

13267-20E20

$14.45

3

SPRING

13268-054A0

$6.40

4

TORSION SPRING

13426-29G00

$6.83

5

LEVER ASSY

13420-44G00

$87.95

6

PACKING

13427-29G00

$4.70

7

E RING

13424-29G00

$4.62

8

O-RING This part replaces 13295-29900.

13295-29901

$4.15

9

WASHER

13606-47A00

$3.70

10

SPRING,THROTTLE SCREW

13268-48700

$4.15

11

SCREW

13269-33E00

$14.73

12

SENSOR ASSY

13580-29G00

$113.91

13

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

$205.70

14

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.11

15

SCREW

13605-02F00

$3.66
