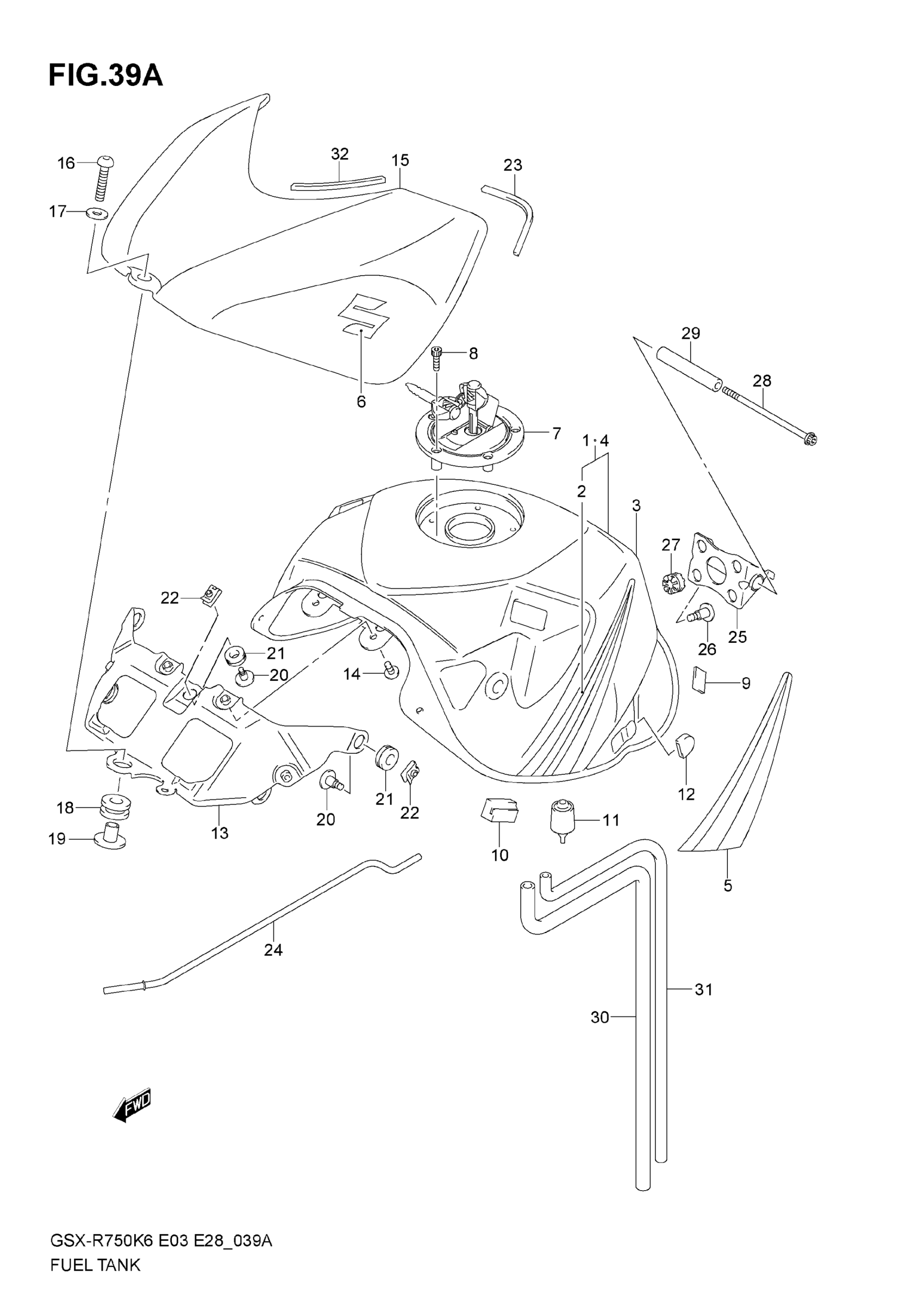

Suzuki GSX-R750 (2007) FUEL TANK (MODEL K7) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | E3,E28 FOR BMV

44100-02H60-YBA

Unavailable

1

TANK ASSY, FUEL (GRAY) | E3,E28 FOR CRT

44100-02H60-YHF

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR BMV

44100-02H80-YBA

Unavailable

1

TANK ASSY,FUEL | E33 FOR CRT; Includes Item(s) 2 - 2 This part replaces 44100-02H80-YHF.

44110-01H20-13L

Unavailable

2

TAPE SET | FOR YBA

68110-02H20-DZB

Unavailable

2

TAPE SET | FOR YHF

68110-02H20-DZC

Unavailable

3

TANK ASSY, FUEL (BLACK) | E3,E28 FOR CRU

44100-01H00-019

Unavailable

3

TANK ASSY, FUEL (BLACK) | E33 FOR CRU

44100-01H20-019

Unavailable

4

TANK ASSY, FUEL (BLUE) | E3,E28 FOR CWH

44100-02H30-YKY

Unavailable

4

TANK ASSY, FUEL (BLUE) | E33 FOR CWH; Includes Item(s) 5

44100-02H50-YKY

Unavailable

5

TAPE SET

68110-02H10-DZD

Unavailable

6

EMBLEM

68111-18G20

$30.90

7

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$112.54

7

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$270.23

8

BOLT

09106-05017

$2.80

9

FASTENER

44572-13G00

$10.59

10

CUSHION,FUEL TA This part replaces 44541-33E00.

44541-33E01

$8.45

11

CUSHION,FUEL TANK RR

44542-41G00

$7.36

12

CUSHION, SIDE COVER

09329-18001

$1.97

13

BRACKET, FRONT

44520-01H00

Unavailable

14

SCREW, BRACKET

09139-06122

$2.88

15

COVER, TANK FRONT (BLUE) | FOR BMV

44291-01H00-YBA

Unavailable

15

COVER, TANK FRONT (BLACK) | FOR CRU

44291-01H00-019

$387.93

15

COVER, TANK FRONT (BLUE) | FOR CWH

44291-01H00-YKY

$387.93

15

COVER, TANK FRONT (GRAY) | FOR CRT

44291-01H00-YHF

Unavailable

16

SCREW, FRONT

09106-08156

$7.38

17

WASHER

09160-08054

$1.46

18

CUSHION This part replaces 09320-12053.

09320-12092

$3.19

19

SPACER This part replaces 09180-08174-A05.

09180-08174

$5.82

20

SCREW, TANK COVER

09139-05078

$3.32

21

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.74

22

NUT

09148-05052

$3.13

23

CUSHION, TANK COVER NO.1

44277-01H00

$5.10

24

STAY, FUEL TANK

44574-35F00

$14.51

25

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

26

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$3.79

27

CUSHION

09320-08071

$3.16

28

BOLT, JOINT

09106-06119

$5.36

29

SPACER, JOINT

44561-18G00

$16.22

30

HOSE,TANK WATER This part replaces 44423-41G00.

44423-41G01

$16.55

31

HOSE,TANK BREAT This part replaces 44424-41G00.

44424-41G01

$18.24

32

CUSHION, TANK COVER NO.2

44278-01H00

$4.40
