2007 Suzuki GSX-R750 Intake Pipe Diagram

← All diagrams

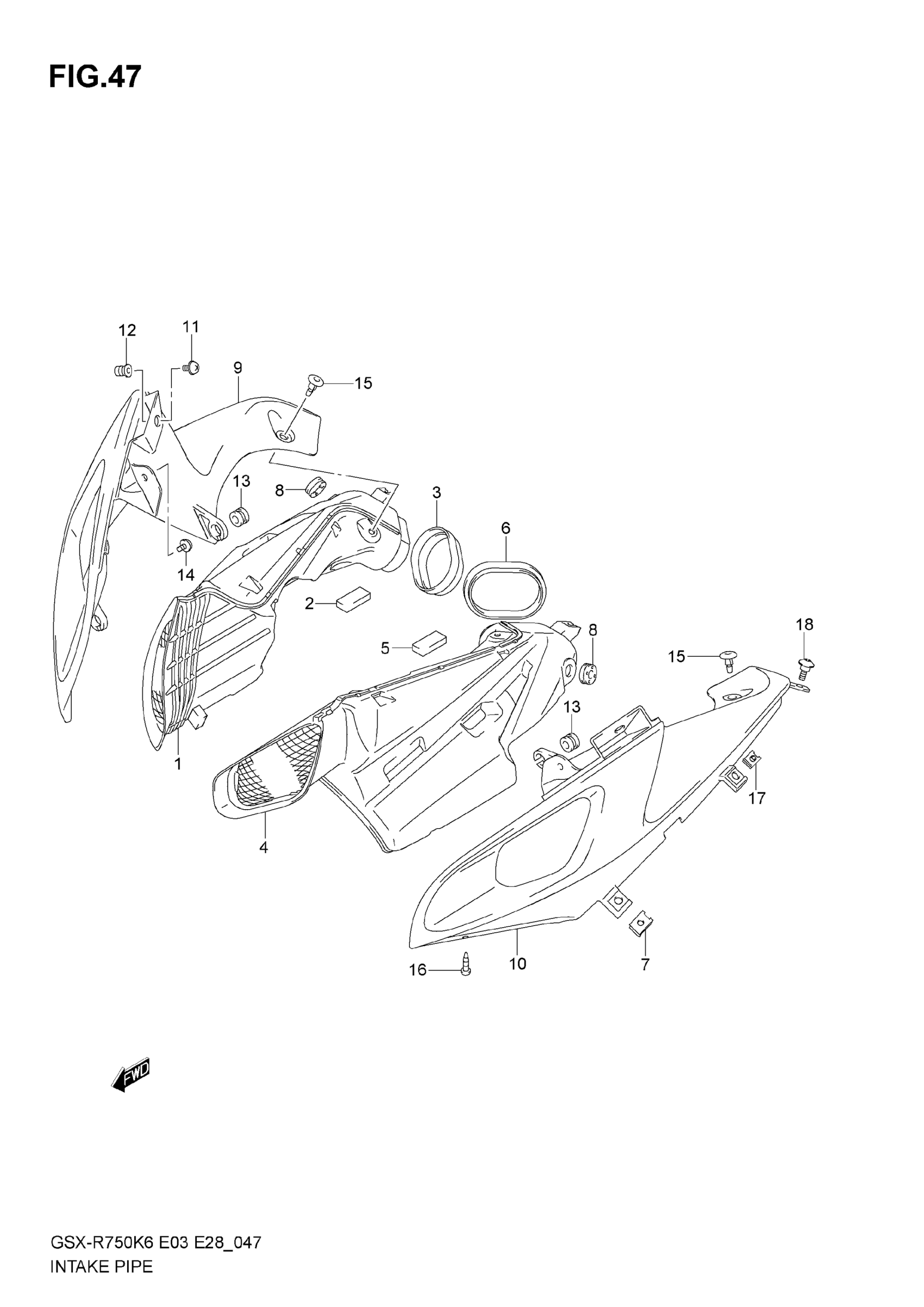

Find the part on the Intake Pipe diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX-R750 Intake Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, AIR INTAKE RH | Includes Item(s) 2

94420-01H00

1
Out of stock

2

CUSHION

92146-01H00

1
Out of stock

3

MOLDING, RH

94423-01H00

1
Out of stock

4

PIPE, AIR INTAKE LH | Includes Item(s) 5

94430-01H00

1
Out of stock

5

CUSHION

92146-01H00

1
Out of stock

6

MOLDING, LH

94433-01H00

1
Out of stock

7

NUT COWL

94484-24F00

2

$3.95

In stock

8

CUSHION

09320-08028

2
Out of stock

9

COVER, INTAKE RH (BLACK)

94670-01H00-YKV

1
Out of stock

10

COVER, INTAKE LH (BLACK)

94680-01H00-YKV

1
Out of stock

11

SCREW This part replaces 02142-15123.

02142-1512B

2
Out of stock

12

NUT

09159-05048

2

$7.13

In stock

13

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

8
Out of stock

14

SCREW

09136-05062

2
Out of stock

15

CLIP

09409-07333

2
Out of stock

16

SCREW This part replaces 03241-15123.

03241-1512B

2
Out of stock

17

NUT COWL

94484-24F00

4

$3.95

In stock

18

SCREW, REAR

09139-05077

2
Out of stock
