2007 Suzuki GSX-R750 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

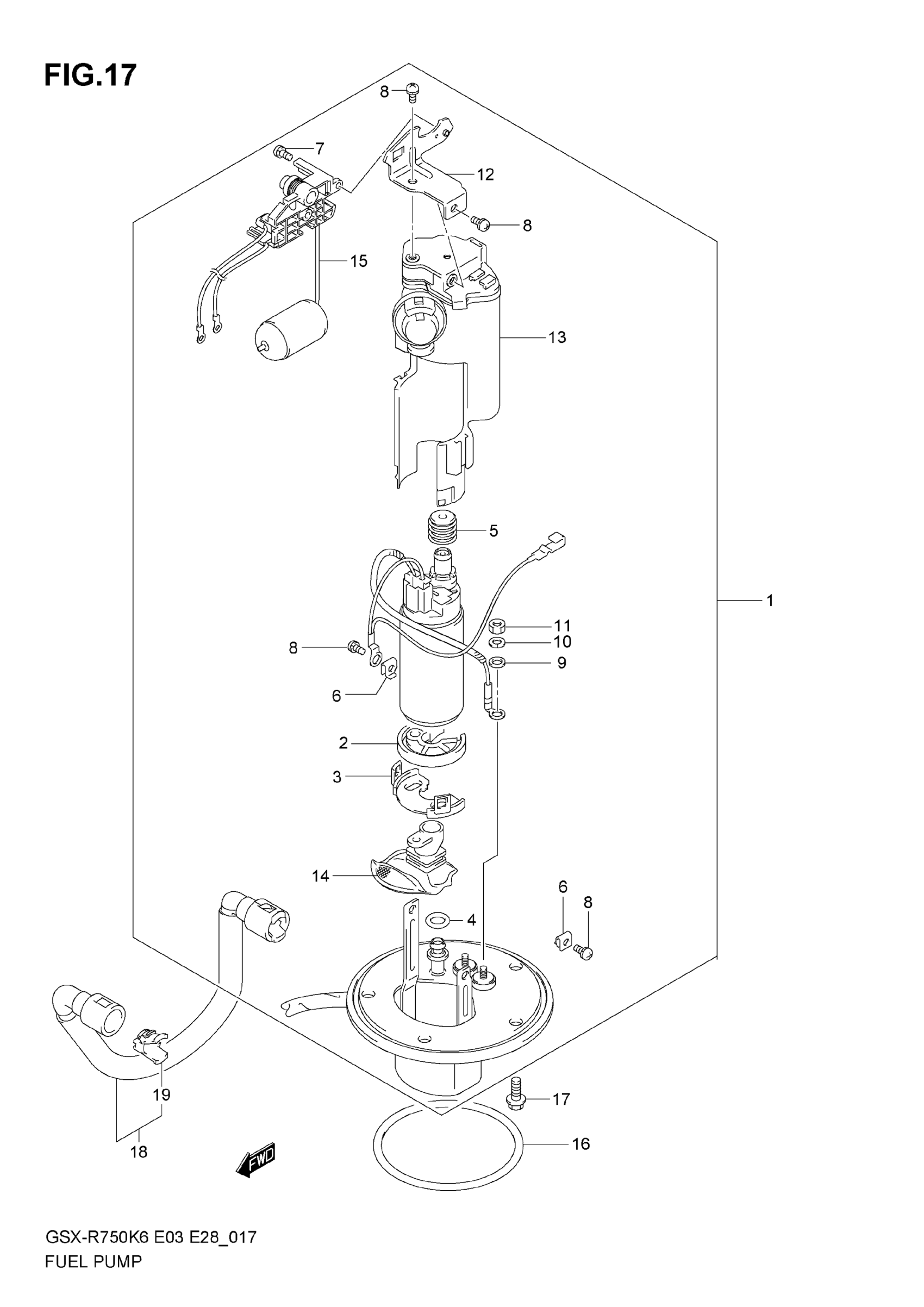

2007 Suzuki GSX-R750 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 15 This part replaces 15100-01H00-E00.

15100-01H00

1
Out of stock

2

CUSHION, FUEL PUMP

15111-35F00

1
Out of stock

3

HOLDER, FUEL PUMP

15112-42F00

1
Out of stock

4

O RING

15113-35F00

1
Out of stock

5

BUSH, FUEL PUMP

15114-35F00

1
Out of stock

6

NUT

15115-35F00

2
Out of stock

7

SCREW

15116-06G10

1
Out of stock

8

SCREW

15116-35F10

4
Out of stock

9

WASHER

15171-35F00

2
Out of stock

10

SPRING WASHER

15172-35F00

2
Out of stock

11

NUT

15173-35F00

2
Out of stock

12

BRACKET, FUEL GAUGE

15181-01H00

1
Out of stock

13

FILTER, FUEL

15410-41G00

1
Out of stock

14

STRAINER, FUEL PUMP

15420-44G00

1
Out of stock

15

GAUGE ASSY, FUEL LEVEL

34810-01H00

1
Out of stock

16

O-RING

15201-35F00

1
Out of stock

17

BOLT

07120-0612A

5
Out of stock

18

HOSE, FUEL | Includes Item(s) 19

15810-01H00

1
Out of stock

19

RETAINER

15815-35F00

2
Out of stock
