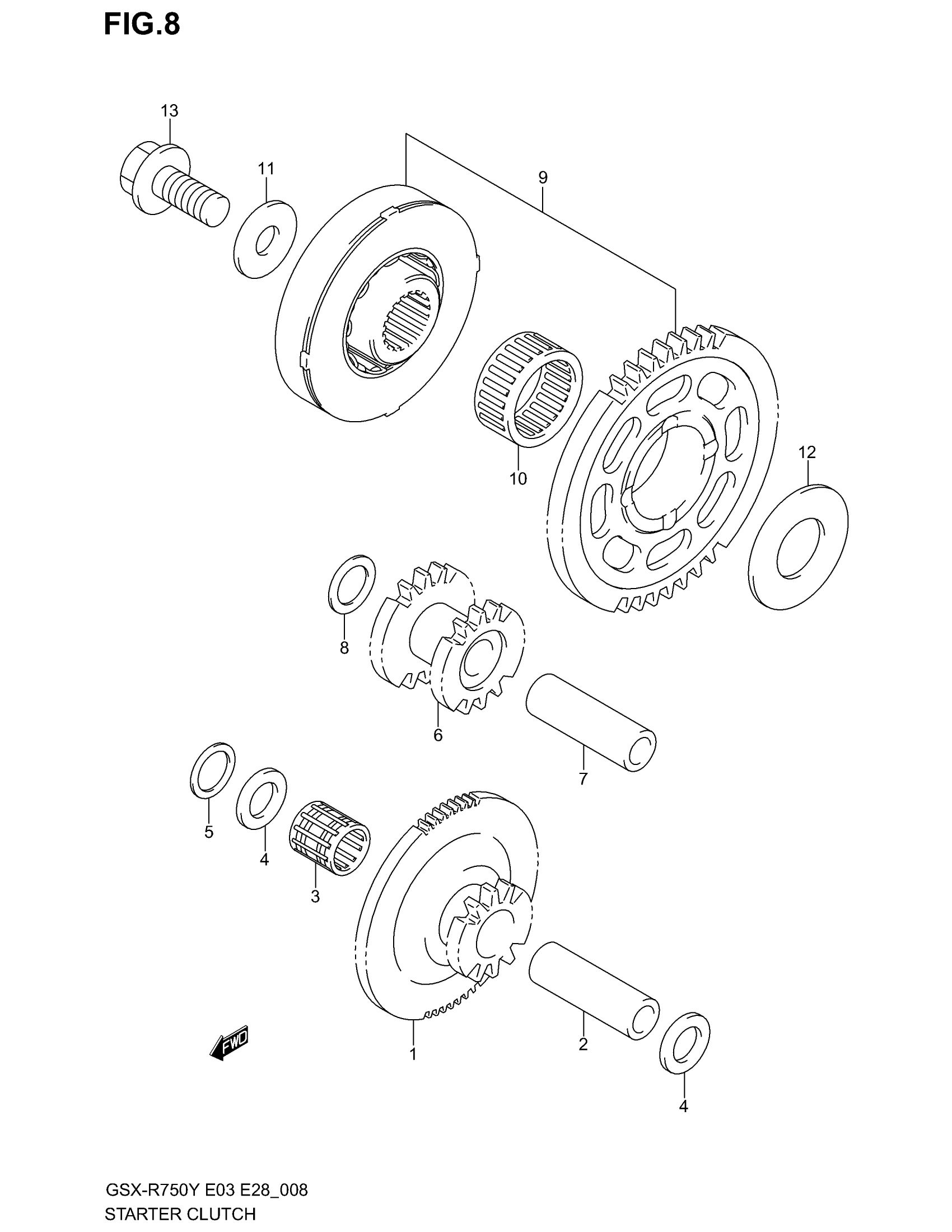

Suzuki GSX-R750 (2003) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-35F00

Unavailable

2

PIN

12151-09204

$9.31

3

BEARING

09263-12023

$9.20

4

WASHER, STARTER IDLE NO.1

09181-12167

$2.24

5

WASHER

09164-12021

$2.01

6

GEAR, STARTER IDLE NO.2

12612-35F00

Unavailable

7

PIN

12151-09204

$9.31

8

WASHER

09164-12021

$2.01

9

CLUTCH SET, STARTER | MODEL Y/K1 This part replaces 12600-35860.

12600-40810

$416.97

9

CLUTCH SET, STARTER | MODEL K2

12600-40810

$416.97

9

CLUTCH SET, STARTER | MODEL K3; Includes Item(s) 10 - 10

12600-40820

Unavailable

10

BEARING | MODEL Y/K1

09263-26028-0C0

Unavailable

10

.BEARING (26X31X16) | MODEL K2 This part replaces 09263-26033-0C0.

09263-26035

$77.93

10

BEARING | MODEL K3

09263-26035

$77.93

11

WASHER

08211-10285

$3.19

12

WASHER

08211-20403

$3.95

13

BOLT (10X23)

09103-10189

$3.70
