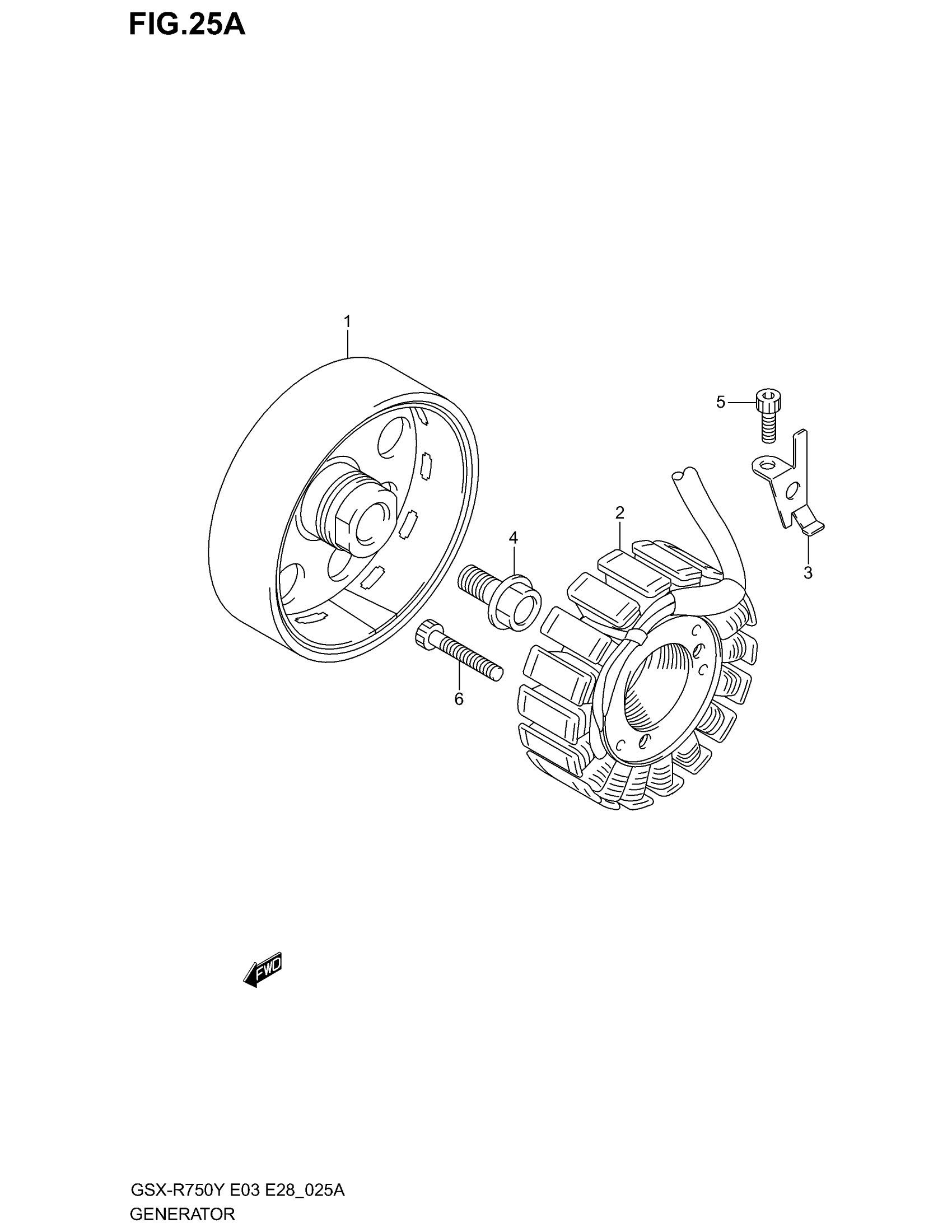

Find the part on the Generator diagram for your 2003 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R750 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

31402-35F10

1
Out of stock

2

STATOR ASSY

31401-35F10

1

$447.57

In stock

3

CLAMP, MAG LEAD

32371-33E00

1

$6.07

In stock

4

BOLT (12X23)

09103-12005

1

$7.67

In stock

5

BOLT This part replaces 07130-06123.

07130-0612A

1
Out of stock

6

3

$3.29

In stock
