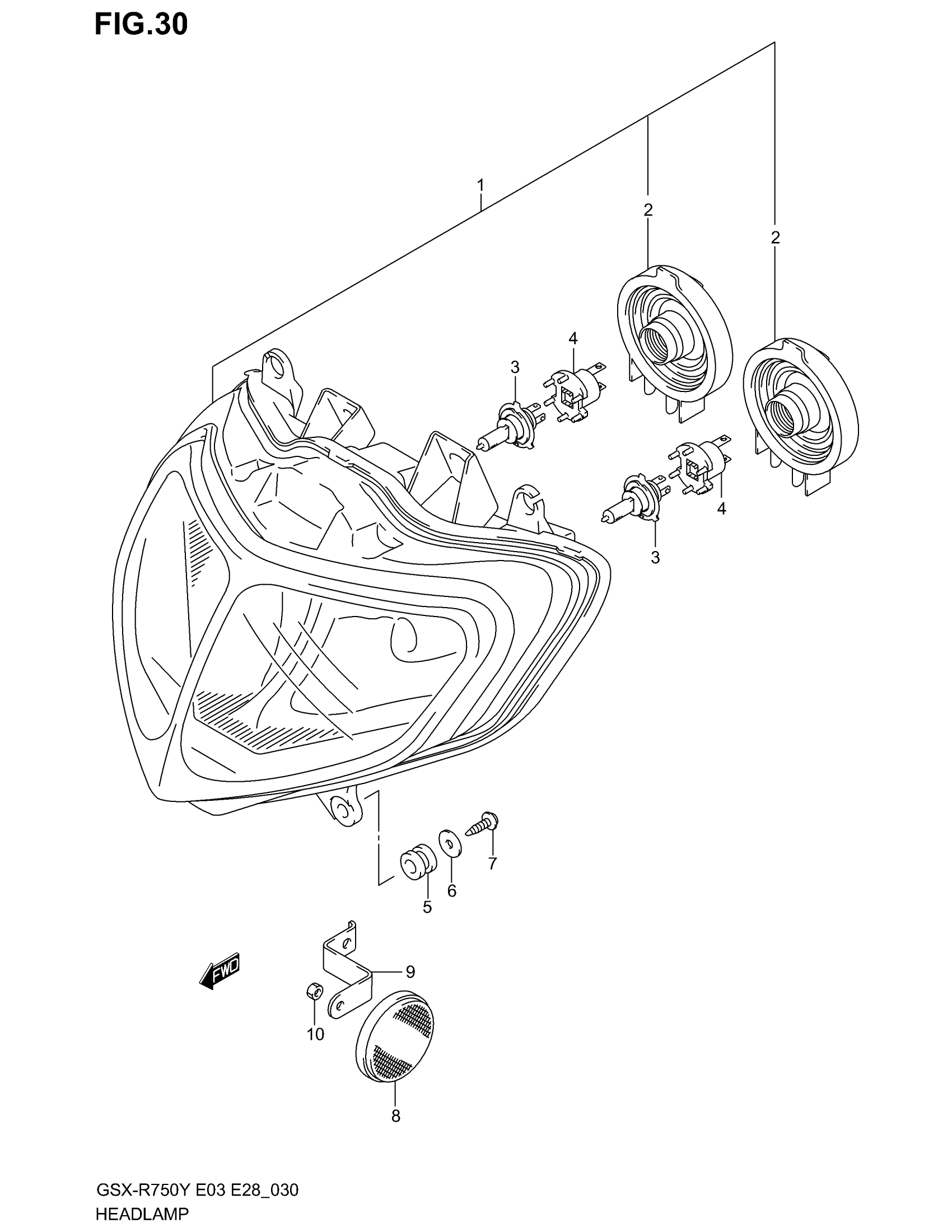

Suzuki GSX-R750 (2003) HEADLAMP (MODEL Y/K1) Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2

35100-35F30-999

Unavailable

2

COVER, SOCKET

35125-77A00

$12.94

3

BULB (12V55W H7) | Includes Item(s) 4

09471-12188

$20.69

4

ADAPTER ASSY

34175-33E50

$16.94

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

6

WASHER (5.5X18X1)

09160-05045

$1.95

7

SCREW, HEADLAMP (5X16)

09132-05041

$0.78

8

REFLEX-REFLECTOR ASSY, FRONT

35950-14A00

$15.95

9

BRACKET, FRONT SIDE REAR

35956-35F00

Unavailable

10

NUT This part replaces 08310-00053.

08310-0005A

$1.83
