1993 Suzuki GSX-R600WP Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1993 Suzuki GSX-R600WP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

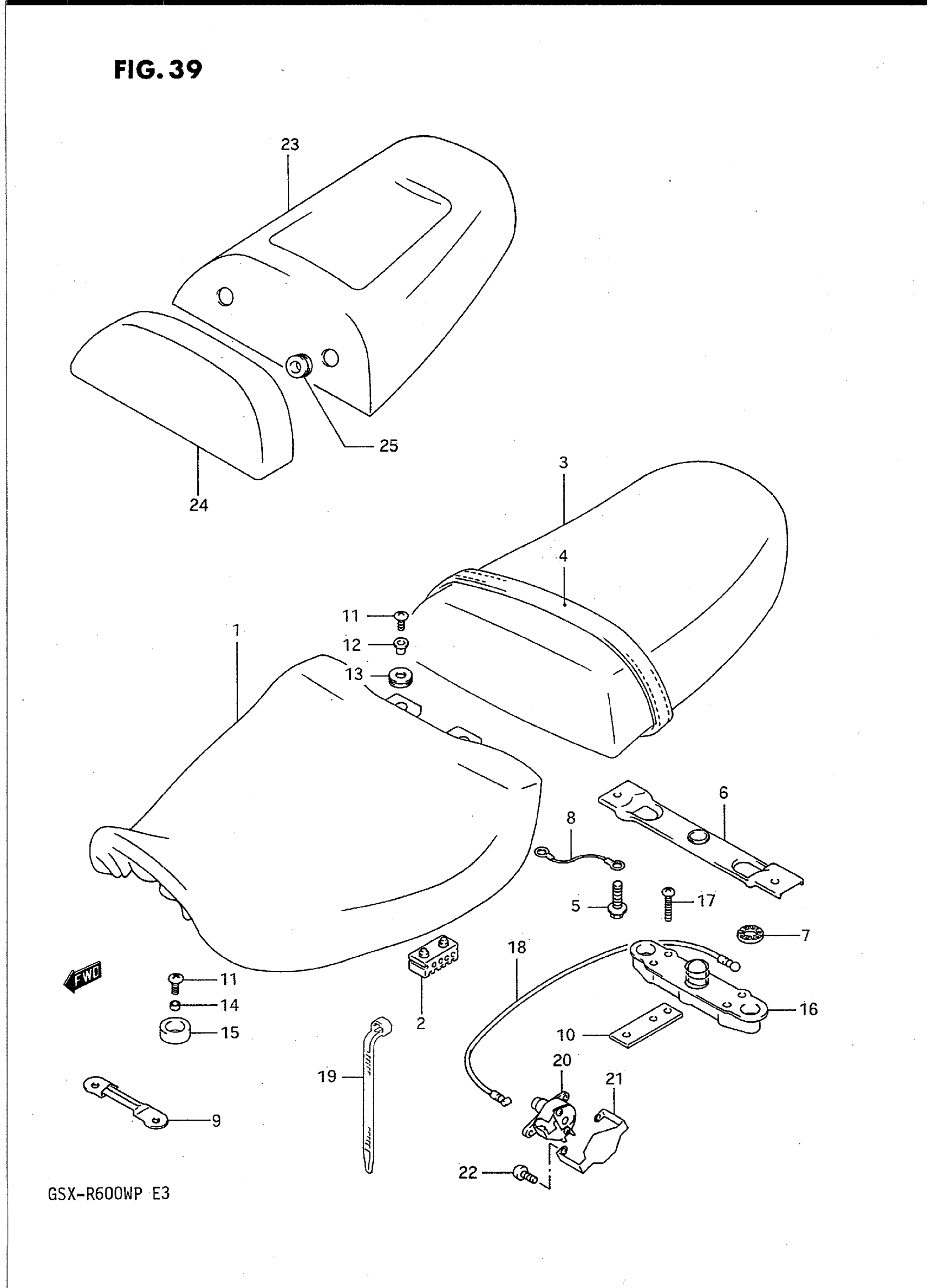

1993 Suzuki GSX-R600WP Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) | Includes Item(s) 2

45100-17E00-58R

1
Out of stock

2

CUSHION

45149-31300

2
Out of stock

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 - 8 This part replaces 45300-17E20-58R.

45300-17E10-58R

1
Out of stock

4

BAND, SEAT GRIP (BLACK)

45180-17E10-58R

1
Out of stock

5

BOLT This part replaces 01517-06206.

01550-0620A

2
Out of stock

6

STRIKER, SEAT LOCK

45210-22D01

1
Out of stock

7

CUSHION, BOSS

45213-31300

2

$2.92

In stock

8

NO DESCRIPTION AVAILABLE This part replaces 45280-12C10.

45280-12C11

1
Out of stock

9

PLATE, SEAT FRONT

45119-17E00

1

$16.30

In stock

10

BRACKET, SEAT FRONT

45210-17E00

1
Out of stock

11

SCREW This part replaces 02142-06164.

02142-0616A

4
Out of stock

12

WASHER

09169-06064

2

$4.62

In stock

13

2

$3.47

In stock

14

SPACER This part replaces 09180-06053.

09180-06309

2
Out of stock

15

CUSHION, SEAT SUPPORT

45149-04A00

2

$3.68

In stock

16

1

$90.43

In stock

17

4

$2.39

In stock

18

CABLE, SEAT LOCK

45280-17E00

1
Out of stock

19

CLAMP

09407-18402

2
Out of stock

20

1

$152.47

In stock

21

PLATE. SEAT LOCK GUARD This part replaces 45289-45D00.

45289-45D01

1
Out of stock

22

SCREW

09139-06075

2
Out of stock

23

BOX SET, SEAT TAIL (WHITE) | OPT,FOR N67

45500-17870-0JW

1
Out of stock

23

BOX SET, SEAT TAIL (BLACK) | OPT,FOR N63; Includes Item(s) 24 - 25

45500-17870-33J

1
Out of stock

24

BACKREST, SEAT (BLACK) | OPT

46220-17E00-58R

1
Out of stock

25

CUSHION | OPT

09320-12031

2

$2.54

In stock
