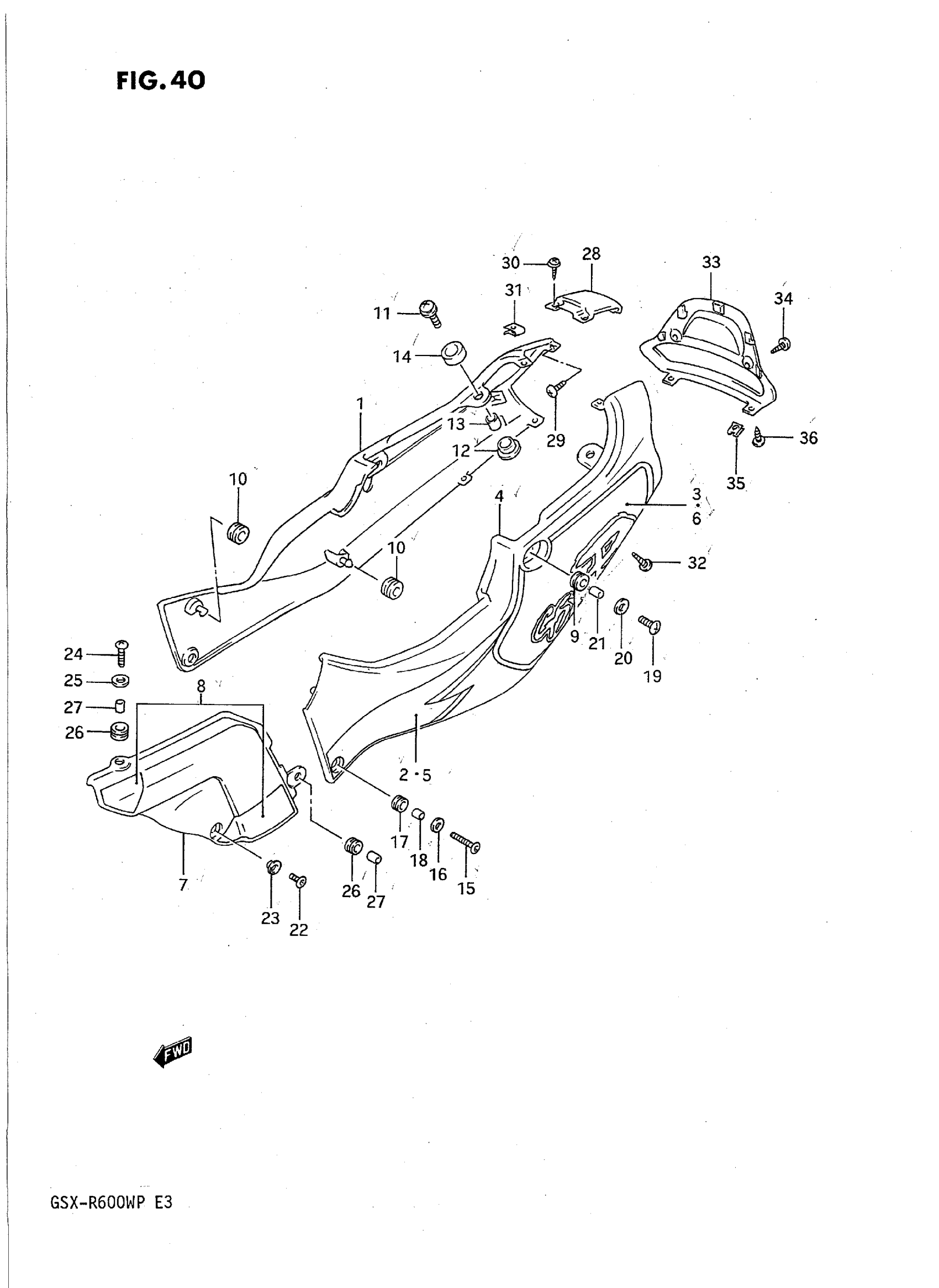

Suzuki GSX-R600WP (1993) FRAME COVER (MODEL N) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR N67

47100-18E00-0JW

Unavailable

1

COVER, FRAME RH (BLACK) | FOR N63; Includes Item(s) 2 - 3

47100-18E00-33J

Unavailable

2

TAPE, COVER RH

68135-18E00-N71

Unavailable

2

TAPE, COVER RH | FOR 33J

68135-18E00-N72

Unavailable

3

TAPE, COVER ZECKEN RH | FOR 0JW

68136-18E00-N73

Unavailable

3

TAPE, COVER ZECKEN RH | FOR 33J

68136-18E00-N74

Unavailable

4

COVER, FRAME LH (WHITE) | FOR N67

47200-18E00-0JW

Unavailable

4

COVER, FRAME LH (BLACK) | FOR N63; Includes Item(s) 5 - 6

47200-18E00-33J

Unavailable

5

TAPE, COVER LH | FOR 0JW

68145-18E00-N71

Unavailable

5

TAPE, COVER LH | FOR 33J

68145-18E00-N72

Unavailable

6

TAPE, COVER ZECKEN LH | FOR 0JW

68146-18E00-N73

Unavailable

6

TAPE, COVER ZECKEN LH | FOR 33J

68146-18E00-N74

Unavailable

7

COVER, FRAME BODY RH (WHITE) | FOR N67

47500-18E00-0JW

Unavailable

7

COVER, FRAME BODY RH (BLACK) | FOR N63

47500-18E00-33J

Unavailable

7

COVER, FRAME BODY LH (WHITE) | FOR N67

47600-18E00-0JW

Unavailable

7

COVER, FRAME BODY LH (BLACK) | FOR N63; Includes Item(s) 8 - 8

47600-18E00-33J

Unavailable

8

TAPE SET, BODY RH | FOR 0JW

68660-18E01-N75

Unavailable

8

TAPE SET, BODY RH | FOR 33J

68660-18E01-N76

Unavailable

8

TAPE SET, BODY LH | FOR 0JW

68670-18E01-N75

Unavailable

8

TAPE SET, BODY LH | FOR 33J

68670-18E01-N76

Unavailable

9

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.18

10

CUSHION, INNER

09320-08018

$2.80

11

SCREW, UPPER

09136-06083

$2.28

12

CUSHION, CENTER LOWER

45326-17C00

$4.80

13

SPACER This part replaces 09180-06143.

09180-06286

$2.53

14

CUSHION, CENTER UPPER

45149-04A00

$3.38

15

SCREW, FRAME COVER FRONT

09139-06042

$5.07

16

WASHER

09160-06084

$1.77

17

CUSHION

09320-09016

$1.97

18

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

19

SCREW, SIDE

09139-06050

$5.15

20

WASHER This part replaces 09160-06012.

09160-06054

$1.62

21

SPACER This part replaces 09180-06027.

09180-06258

$1.82

22

SCREW, BODY COVER SIDE

09139-05025

$1.89

23

WASHER

09169-05013

Unavailable

24

SCREW, BODY COVER UPPER

09125-06055

$2.37

25

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.15

26

CUSHION

09320-09016

$1.97

27

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

28

COVER, FRAME CENTER | FOR N67

47300-17E00-0JW

Unavailable

28

COVER, FRAME CENTER | FOR N63

47300-17E00-33J

Unavailable

29

SCREW, CENTER

09139-05021

$1.49

30

SCREW This part replaces 03141-14125.

03141-1412B

$3.08

31

NUT, FRONT

09148-04024

$2.43

32

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.37

33

COVER, FRAME REAR

47411-17E00

Unavailable

34

SCREW

09139-05021

$1.49

35

NUT This part replaces 09148-05023.

09148-05021

$1.88

36

SCREW This part replaces 02142-15125.

02142-1512B

$2.37
