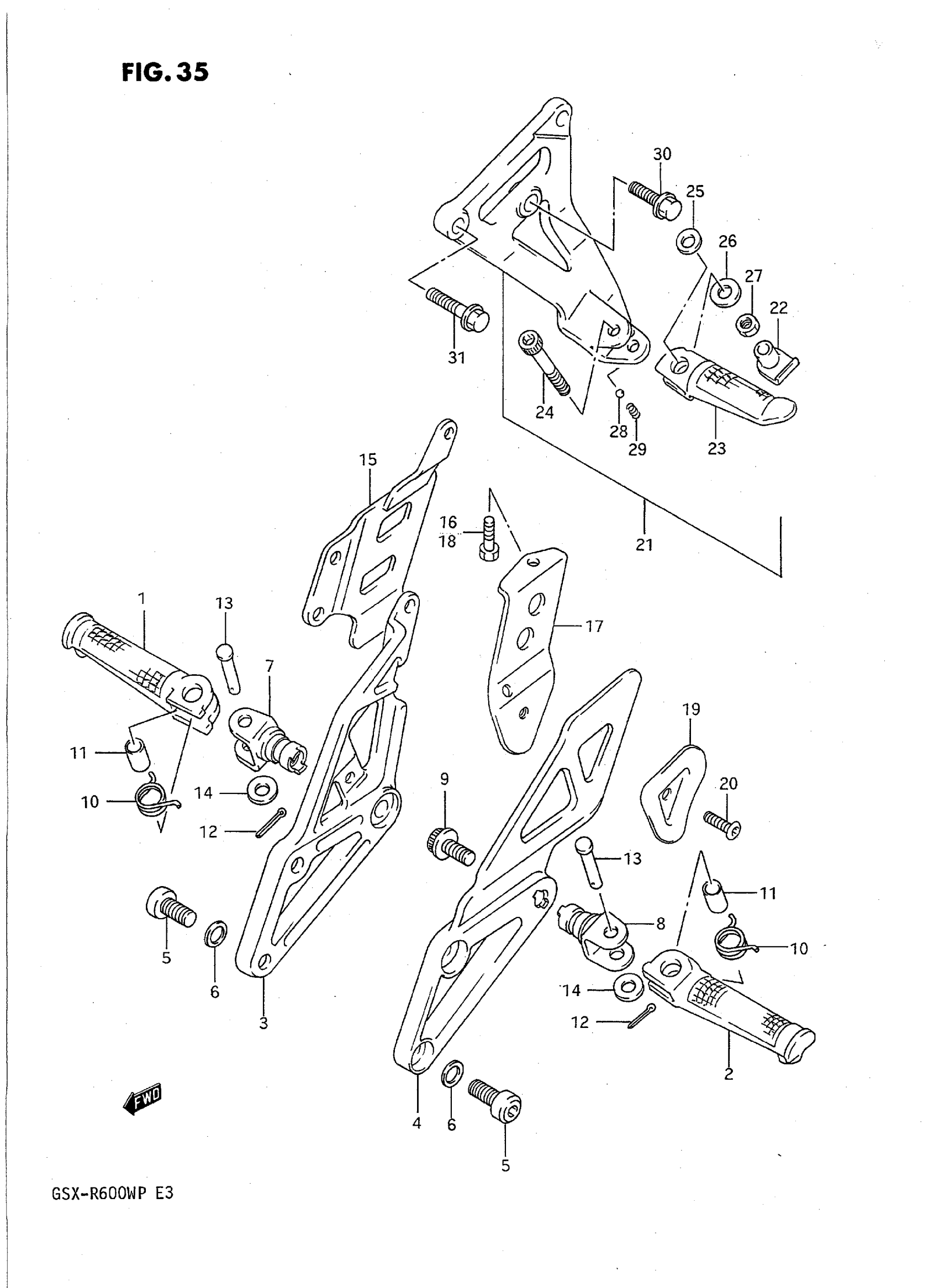

Find the part on the Footrest diagram for your 1993 Suzuki GSX-R600WP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX-R600WP Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FRONT FOOTREST RH

43511-17C02

1
Out of stock

2

BAR, FRONT FOOTREST LH

43521-17C02

1
Out of stock

3

BRACKET, FOOTREST RH This part replaces 43511-17E00.

43511-17E01

1
Out of stock

4

BRACKET, FOOTREST LH This part replaces 43522-17E00.

43522-17E02

1
Out of stock

5

4

$5.00

In stock

6

WASHER

09164-10010

4

$5.25

In stock

7

1

$63.26

In stock

8

1

$60.93

In stock

9

BOLT, FOOTREST HOLDER

09106-10052

2
Out of stock

10

SPRING This part replaces 09448-19020.

09448-18022

2
Out of stock

11

2

$5.50

In stock

12

2

$1.64

In stock

13

PIN

09200-08057

2

$2.58

In stock

14

WASHER

09160-08043

2
Out of stock

15

GUARD, FOOTREST RH | MODEL N

43570-17E00

1
Out of stock

15

GUARD, FOOTREST RH | MODEL P This part replaces 43571-46E00.

43570-17E00

1
Out of stock

16

BOLT This part replaces 01174-06256.

01580-06253

1
Out of stock

17

REINFORCEMENT, FOOTREST LH

43531-17E01

1
Out of stock

18

BOLT This part replaces 01174-06256.

01580-06253

1
Out of stock

19

PLATE, LH

43532-17E00

1
Out of stock

20

BOLT

09139-06027

1

$2.31

In stock

21

FOOTREST ASSY, PILLION RH

43600-17E00

1
Out of stock

21

FOOTREST ASSY, PILLION LH | Includes Item(s) 22 - 29

43700-17E00

1
Out of stock

22

BOSS, PILLION FOOTREST RH

43590-17E00

1
Out of stock

22

BOSS, PILLION FOOTREST LH

43580-17E00

1
Out of stock

23

BAR, RH

43611-32C00

1

$61.48

In stock

23

BAR, LH

43621-32C00

1
Out of stock

24

2

$4.53

In stock

25

WASHER

09160-08043

2
Out of stock

26

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

27

2

$2.31

In stock

28

BALL

06111-07004

2
Out of stock

29

SPRING

09440-05003

2
Out of stock

30

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

2
Out of stock

31

4

$3.49

In stock
