1993 Suzuki GSX-R600WP Cowling Fitting SET Diagram

← All diagrams

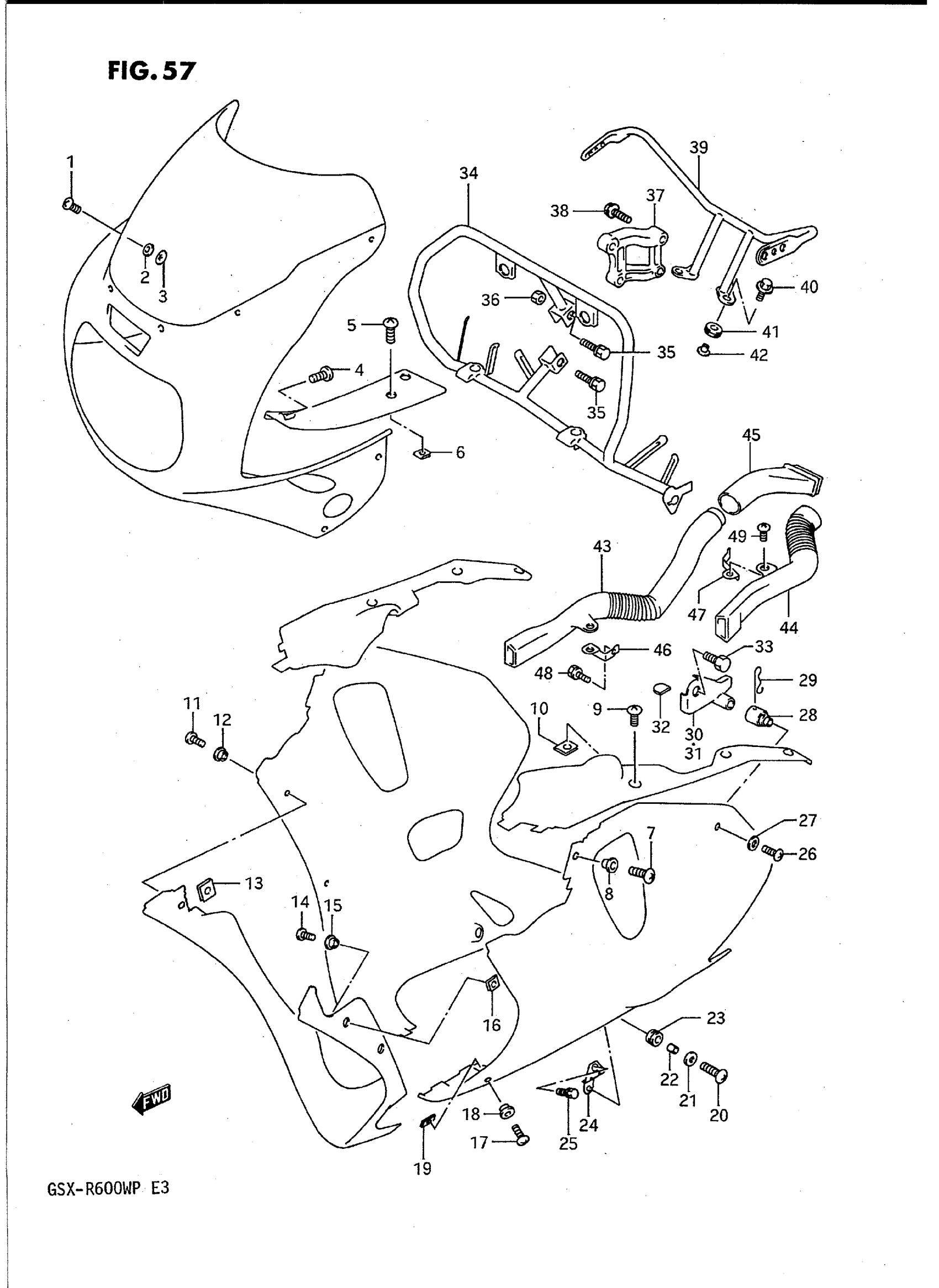

Find the part on the Cowling Fitting SET diagram for your 1993 Suzuki GSX-R600WP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX-R600WP Cowling Fitting SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIN, SCREEN (4X11)

94616-22D00

6
Out of stock

2

6

$2.85

In stock

3

NUT

09148-04032

6
Out of stock

4

.SCREW This part replaces 02142-05124.

02142-0512A

2
Out of stock

5

SCREW This part replaces 03242-05124.

03241-0512A

2
Out of stock

6

NUT This part replaces 09148-05004.

09148-05013

2
Out of stock

7

SCREW, COWLING

09139-05032

4
Out of stock

8

WASHER

09161-05018

4
Out of stock

9

SCREW This part replaces 03242-05124.

03241-0512A

8
Out of stock

10

NUT This part replaces 09148-05004.

09148-05013

8
Out of stock

11

SCREW, UNDER CENTER RH (5X18)

09139-05032

3
Out of stock

12

WASHER

09161-05017

3
Out of stock

13

NUT

94484-12C11

3
Out of stock

14

SCREW, BRACKET This part replaces 03242-05165.

03241-0516A

3
Out of stock

15

WASHER

09161-05017

3
Out of stock

16

NUT This part replaces 09148-05004.

09148-05013

3
Out of stock

17

SCREW, CENTER LOWER LH (5X18)

09139-05032

1
Out of stock

18

WASHER

09161-05017

1
Out of stock

19

NUT

94484-12C11

1
Out of stock

20

SCREW, UNDER LOWER (6X25)

09139-06029

2
Out of stock

21

WASHER

09160-06056

2
Out of stock

22

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

2
Out of stock

23

CUSHION

09320-09016

2
Out of stock

24

BRACKET, UNDER LOWER RH

94740-17E00

1
Out of stock

24

BRACKET, UNDER LOWER LH This part replaces 94840-17E00.

94840-17E01

1
Out of stock

25

BOLT (6X16) This part replaces 09116-06027.

09116-06024

2
Out of stock

26

2

$3.58

In stock

27

WASHER This part replaces 09160-06053.

09160-06125

2
Out of stock

28

PLUG, UNDER COWLING

94520-12C00

2
Out of stock

29

PIN,UNDER COWL This part replaces 94523-12C00.

94523-12C0V

2
Out of stock

30

BRACE, UNDER RH This part replaces 94530-17E00.

94530-17E01

1
Out of stock

31

BRACE, UNDER LH This part replaces 94540-17E00.

94540-17E01

1
Out of stock

32

CUSHION, BRACE

94551-17E00

2
Out of stock

33

BOLT This part replaces 01137-06125.

01570-0612A

2
Out of stock

34

BRACE, COWLING

94510-17E00

1
Out of stock

35

NO DESCRIPTION AVAILABLE This part replaces 01137-08308.

01570-08307

2
Out of stock

36

NUT This part replaces 08313-21087.

08313-20087

1
Out of stock

37

BRACE, COWLING CENTER

94531-41C00

1
Out of stock

38

BOLT This part replaces 01187-08408.

01580-08407

2
Out of stock

39

BRACE, MIRROR

94520-17E00

1
Out of stock

40

BOLT (6X20) This part replaces 09116-06143.

09116-06115

2
Out of stock

41

CUSHION

09320-09009

2
Out of stock

42

WASHER

09169-06062

2
Out of stock

43

PIPE, AIR INTAKE RH

94451-17E00

1
Out of stock

44

PIPE, AIR INTAKE LH

94452-17E00

1
Out of stock

45

PIPE, AIR INTAKE REAR RH

94453-17C00

1
Out of stock

46

BRACKET, AIR INTAKE RH This part replaces 94454-17E00.

94454-17E01

1
Out of stock

47

BRACKET, AIR INTAKE LH This part replaces 94455-17E00.

94455-17E01

1
Out of stock

48

BOLT This part replaces 01137-06125.

01570-0612A

2
Out of stock

49

SCREW This part replaces 02142-06125.

02142-0612A

2
Out of stock
