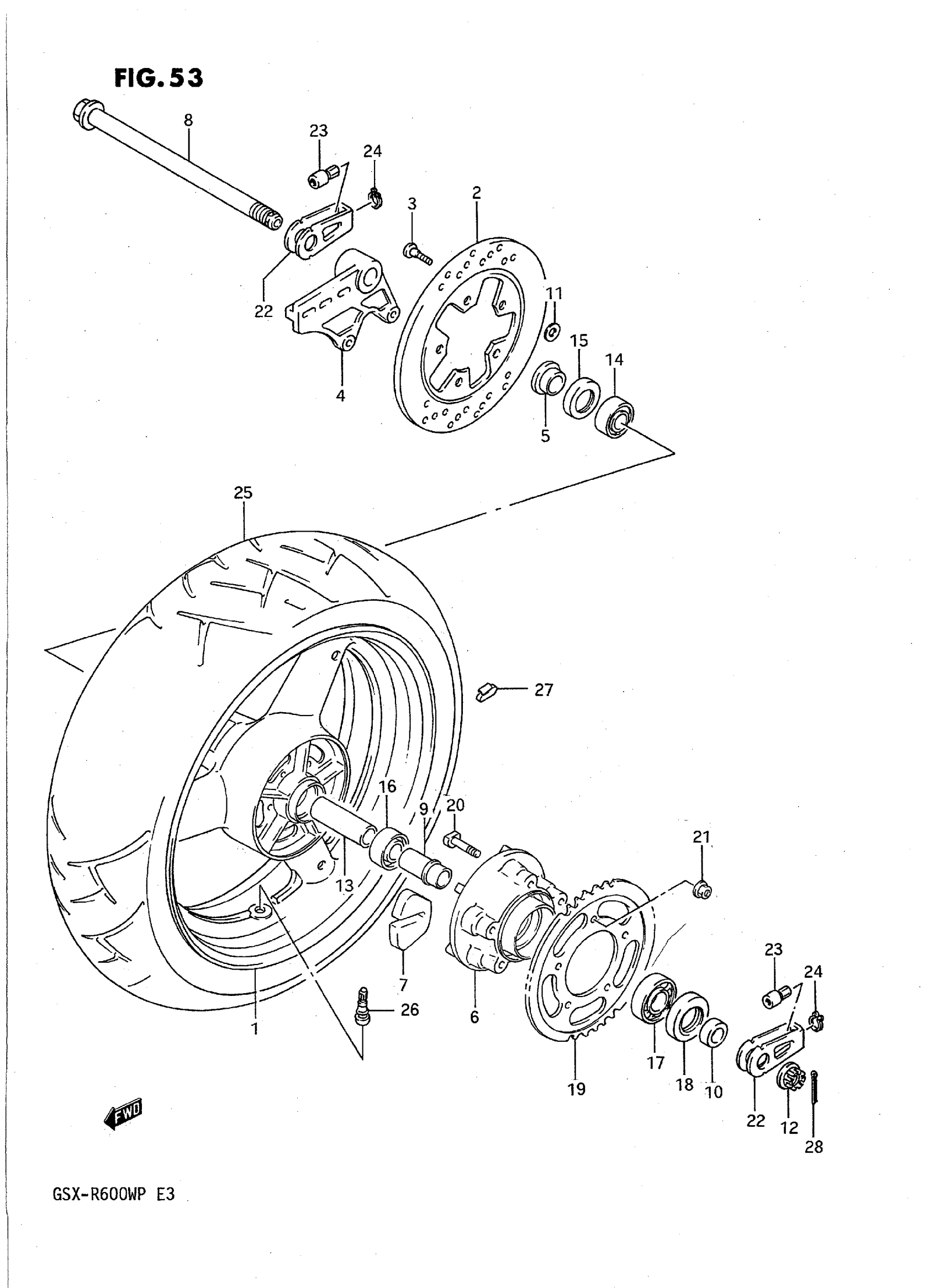

Suzuki GSX-R600WP (1993) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17XMT5.50) | FOR N63

64111-17E00-1MJ

Unavailable

1

WHEEL, REAR (17XMT5.50) | FOR N67

64111-17E00-28W

Unavailable

1

WHEEL, REAR (17XMT5.50) | FOR 1JX

64111-17E00-1UL

Unavailable

2

DISC, REAR BRAKE

69211-17C10

Unavailable

3

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.33

4

BRACKET, REAR CALIPERS This part replaces 69721-17E00.

69721-17E10

Unavailable

5

SPACER, RH

64741-17E00

$28.80

6

DRUM, SPROCKET

64611-17C01

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$8.95

8

AXLE, REAR

64711-17E10

Unavailable

9

RETAINER,RR HUB BEARING

64733-27A00

$30.40

10

SPACER, LH

64751-27A00

Unavailable

11

SHIM, REAR DISC

09181-10002

Unavailable

12

NUT

09141-20004

Unavailable

13

SPACER, BEARING

09180-20114

Unavailable

14

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

15

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

16

BEARING, LH

09262-20042

$21.31

17

BEARING, DRUM

09262-25073

$23.39

18

SEAL,OIL (35X62X8)

09285-35001

$9.33

19

SPROCKET, REAR (NT:44)

64511-17C00

Unavailable

20

BOLT

09119-10037

$4.70

21

NUT

08319-31107

$2.73

22

ADJUSTER, CHAIN

61411-40C00

$16.77

23

NUT, CHAIN ADJUSTER This part replaces 61415-40C00.

61415-22D00

$28.88

24

CIRCLIP This part replaces 08331-31136.

08331-3113A

$2.43

25

TIRE, REAR (170/60 ZR17)

65110-18D00

Unavailable

26

VALVE ASSY

43130-24A00

$8.10

27

BALANCER (10G)

55411-00A00

$1.35

27

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$5.14

27

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

28

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37
