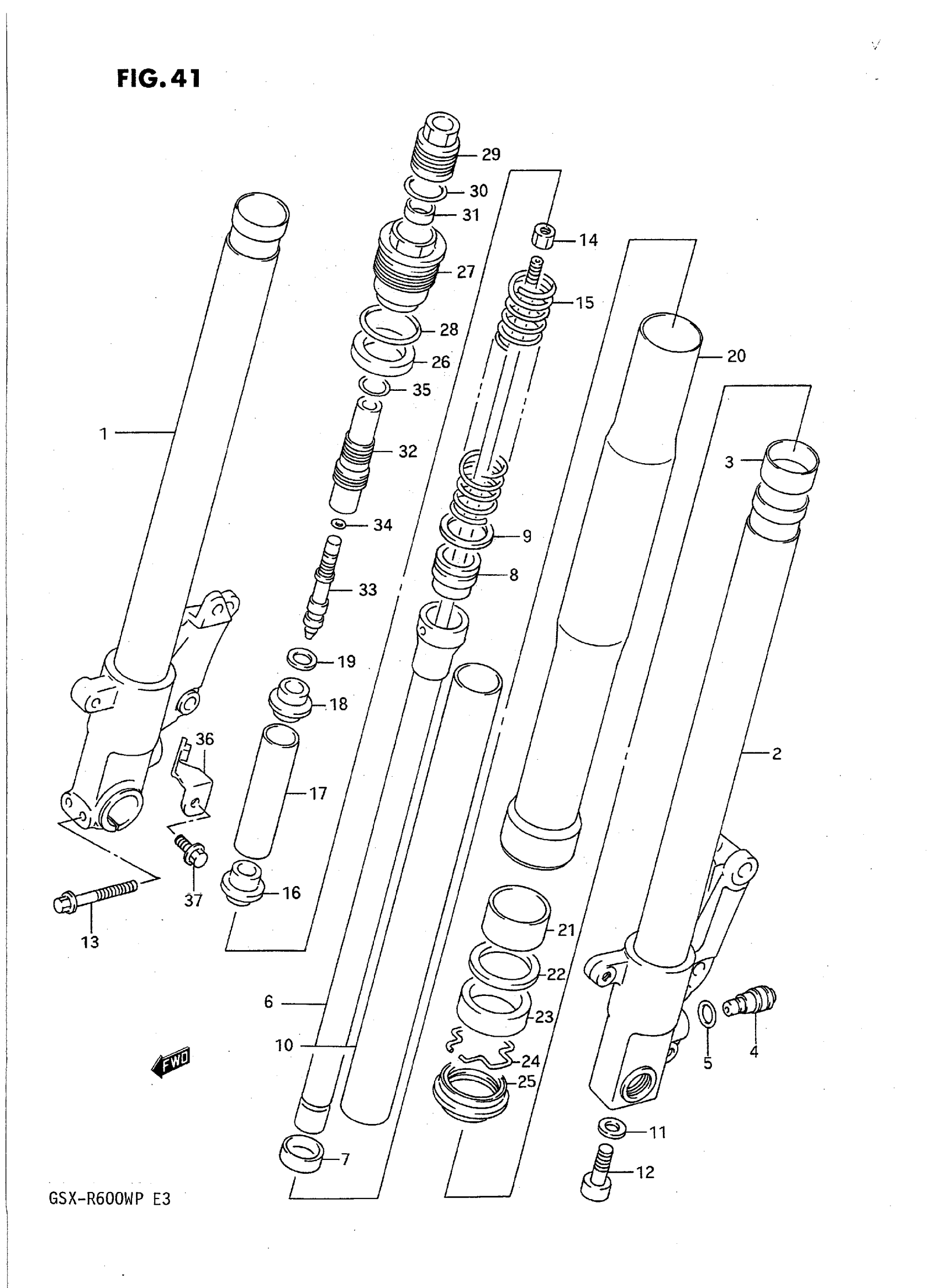

1993 Suzuki GSX-R600WP Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1993 Suzuki GSX-R600WP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX-R600WP Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH

51103-18E00

1
Out of stock

DAMPER ASSY, LH | Includes Item(s) 1 - 35

51104-18E00

1
Out of stock

1

TUBE, INNER RH

51110-18E00

1
Out of stock

2

TUBE, INNER LH

51120-18E00

1
Out of stock

3

BUSH, SLIDE

51121-48B31

2
Out of stock

4

PIECE, ADJUSTER LOWER | MODEL N This part replaces 51830-17E00.

51830-07D00

2
Out of stock

4

PIECE, ADJUSTER LOWER | MODEL P

51830-07D00

2
Out of stock

5

O RING (D:2.5,ID:13.8) This part replaces 51834-17C00.

09280-14011

2
Out of stock

6

DAMPER, FRONT

52110-18E00

2
Out of stock

7

PLATE, CENTERRING

51815-17D00

2
Out of stock

8

JOINT, SPRING LOWER

51192-18E00

2
Out of stock

9

RING, PISTON

51196-18E00

2
Out of stock

10

SPACER, SPRING LOWER

51197-18E00

2
Out of stock

11

WASHER (10X15X1.5)

09161-10009

2
Out of stock

12

BOLT

51147-17C00

2
Out of stock

13

BOLT, LH This part replaces 01517-08508.

01550-08507

2
Out of stock

14

NUT, LOD

51827-17C00

2
Out of stock

15

SPRING

51171-17E00

2
Out of stock

16

JOINT, SPRING LOWER

51172-17E00

2
Out of stock

17

SPACER, SPRING UPPER

51176-18E00

2
Out of stock

18

.GUIDE,SPRING UPR | MODEL N This part replaces 51192-22D20.

51175-22D00

2
Out of stock

18

.GUIDE,SPRING UPR | MODEL P

51175-22D00

2
Out of stock

19

WASHER, JOINT UPPER

51172-34370

2
Out of stock

20

TUBE, OUTER

51131-18E00

2
Out of stock

21

BUSH, GUIDE

51152-08D00

2
Out of stock

22

SPACER, SEAL

51168-38B00

2
Out of stock

23

SEAL, OIL

51153-08D00

2
Out of stock

24

RING, STOPPER

51556-38B00

2
Out of stock

25

.DUST SEAL This part replaces 51173-08D00.

51173-15D00

2
Out of stock

26

RUBBER, SEAT

51193-17D00

2
Out of stock

27

BOLT, FORK

51189-18D00

2
Out of stock

28

O RING, FORK BOLT

51187-08D00

2
Out of stock

29

ADJUSTER, SPRING

51828-17D00

2
Out of stock

30

O RING, ADJUSTER OUTER

51199-17D00

2
Out of stock

31

PLATE, SPRING ADJUSTER

51823-22D30

2
Out of stock

32

CASE, ADJUSTER

51829-17E00

2
Out of stock

33

PIECE, ADJUSTER UPPER

51821-17E00

2
Out of stock

34

O RING This part replaces 51824-17C00.

09280-03002

2
Out of stock

35

RING, STOPPER

51837-17D00

2
Out of stock

36

PLATE,FRONT FEN This part replaces 51590-17D10.

51590-17D1V

1
Out of stock

36

PLATE,FRONT FEN This part replaces 51580-17D10.

51580-17D1V

1
Out of stock

37

BOLT This part replaces 01517-08128.

01550-08127

2
Out of stock
