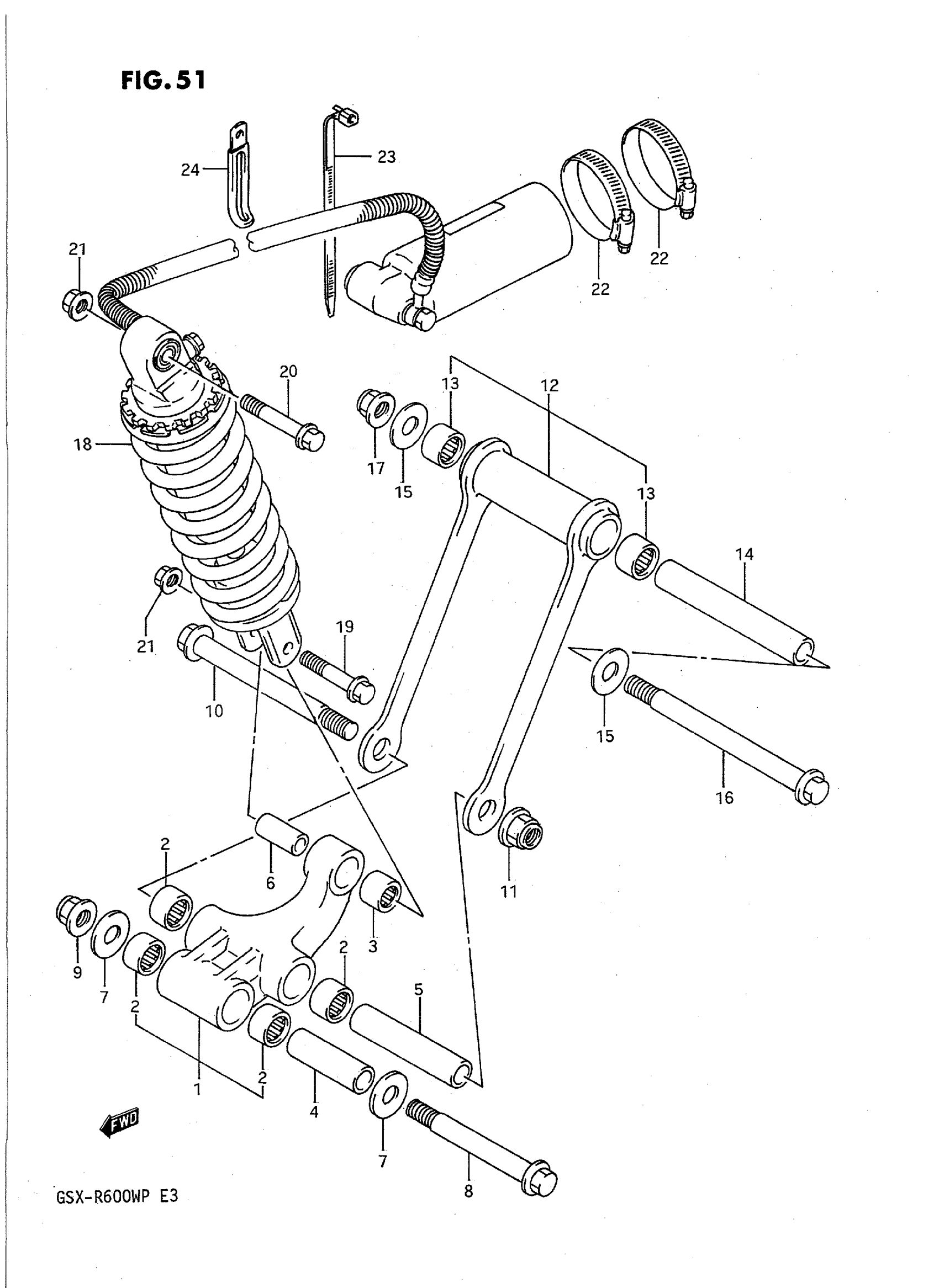

Suzuki GSX-R600WP (1993) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-40830

Unavailable

2

BEARING

09263-20071

$23.72

3

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

4

SPACER, FRONT

62317-17C00

Unavailable

5

SPACER, CENTER

62317-40C10

Unavailable

6

SPACER, REAR

62684-40A10

$11.44

7

WASHER, FRONT

08211-14323

$4.18

8

BOLT, FRONT

62621-17C00

$26.03

9

NUT This part replaces 08319-31148.

08319-3114A

$8.84

10

BOLT, CENTER

62658-40C10

Unavailable

11

NUT This part replaces 08319-31148.

08319-3114A

$8.84

12

ROD SET, REAR CUSHION LEVER | Includes Item(s) 13

62600-17840

Unavailable

13

BEARING

09263-20071

$23.72

14

SPACER, ROD

09180-14022

Unavailable

15

WASHER, ROD

08211-14321

$4.18

16

BOLT, ROD

09103-14019

Unavailable

17

NUT This part replaces 08319-31148.

08319-3114A

$8.84

18

NO DESCRIPTION AVAILABLE This part replaces 62100-18E00.

62100-17E00

Unavailable

19

BOLT, LOWER

09103-10027

$5.00

20

BOLT, UPPER

09103-10032

Unavailable

21

NUT

08319-31107

$2.73

22

.CLAMP This part replaces 09402-57501.

09402-57511

$14.47

23

CLAMP

09407-18402

$2.21

24

CLAMP This part replaces 09404-08402.

09404-08420

$2.90
