Description

Price

1

HANDLEBAR,R

56111-14J00

$257.20

2

HANDLEBAR,L

56151-14J00

$190.59

3

CAP,HANDLEBAR

56131-29G00

$4.02

4

BOLT (8X32)

09106-08185

$2.80

5

BALANCER SET,HANDLEBAR This part replaces 56200-41822.

56200-41823

$29.78

6

SCREW

02122-0640B

$3.45

7

WASHER (6.5X16X4)

09160-06131

$2.62

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.64

9

NUT

56273-10G10

$8.27

10

MIRROR ASSY,RR VIEW,R This part replaces 56500-47H00.

56500-47H01

$163.29

11

MIRROR ASSY,RR VIEW,L This part replaces 56600-47H00.

56600-47H01

$163.29

12

CUSHION,RR VIEW MIRRROR,R

94575-14J00

$4.77

13

NUT,RR VIEW MIRROR

56619-41G01

$8.91

14

CABLE ASSY,CLUTCH

58200-14J00

$33.54

15

GUIDE,CABLE

58620-14J00

$18.22

16

BOLT

01547-0612A

$2.09

17

CLAMP (L:154)

09407-17403

$4.79

18

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-14J00.

58300-14J01

$60.38

19

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-14J10.

58300-14J11

$51.15

20

SCREW (5X10)

09125-05042

$2.04

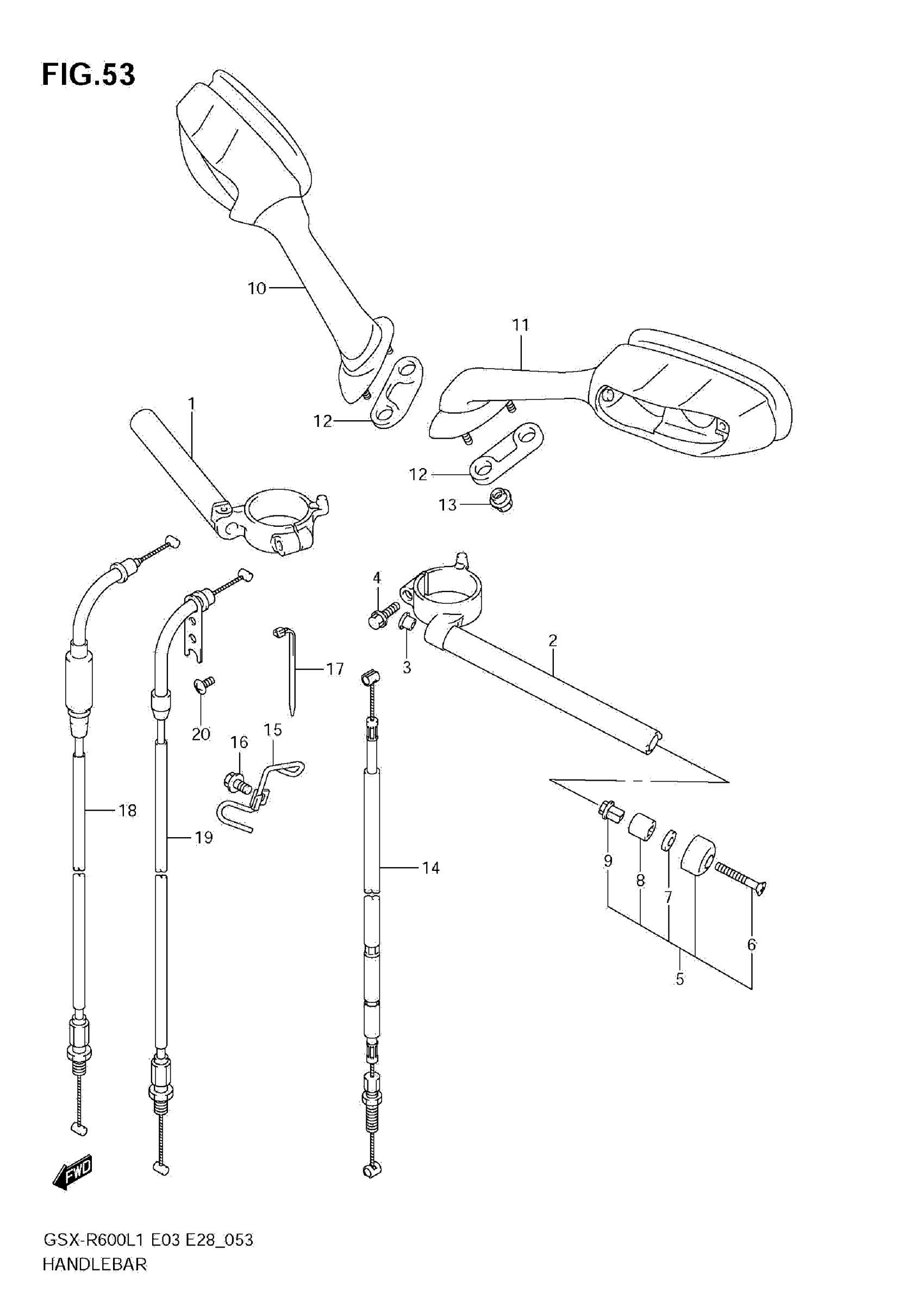

Suzuki GSX-R600L1 (2011) HANDLEBAR Diagram
