Description

Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$18.61

2

LEVER ASSY, BLAKE

57300-29G20

$84.08

3

BOLT, PIVOT

57431-29G00

$8.52

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J00.

57460-14J02

$35.21

6

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$10.18

7

LEVER ASSY,CLUT This part replaces 57500-41G20.

57500-41G21

$116.58

8

LEVER, CLUTCH

57621-41G00

$32.96

9

BOLT

57431-41G00

$10.96

10

COLLAR

57532-41G00

$18.07

11

NUT

08319-3106B

$2.47

12

SWITCH ASSY, CLUTCH

57560-41G20

$20.93

13

.SCREW,CLUTCH SWITCH This part replaces 57562-41G20.

57562-41G21

$7.63

14

..BOLT

01547-0620B

$2.43

15

NUT, CABLE ADJUSTER

57641-33E21

$46.38

16

SPRING

57644-33E00

$8.54

17

SCREW, SPRING

57642-33E00

$4.53

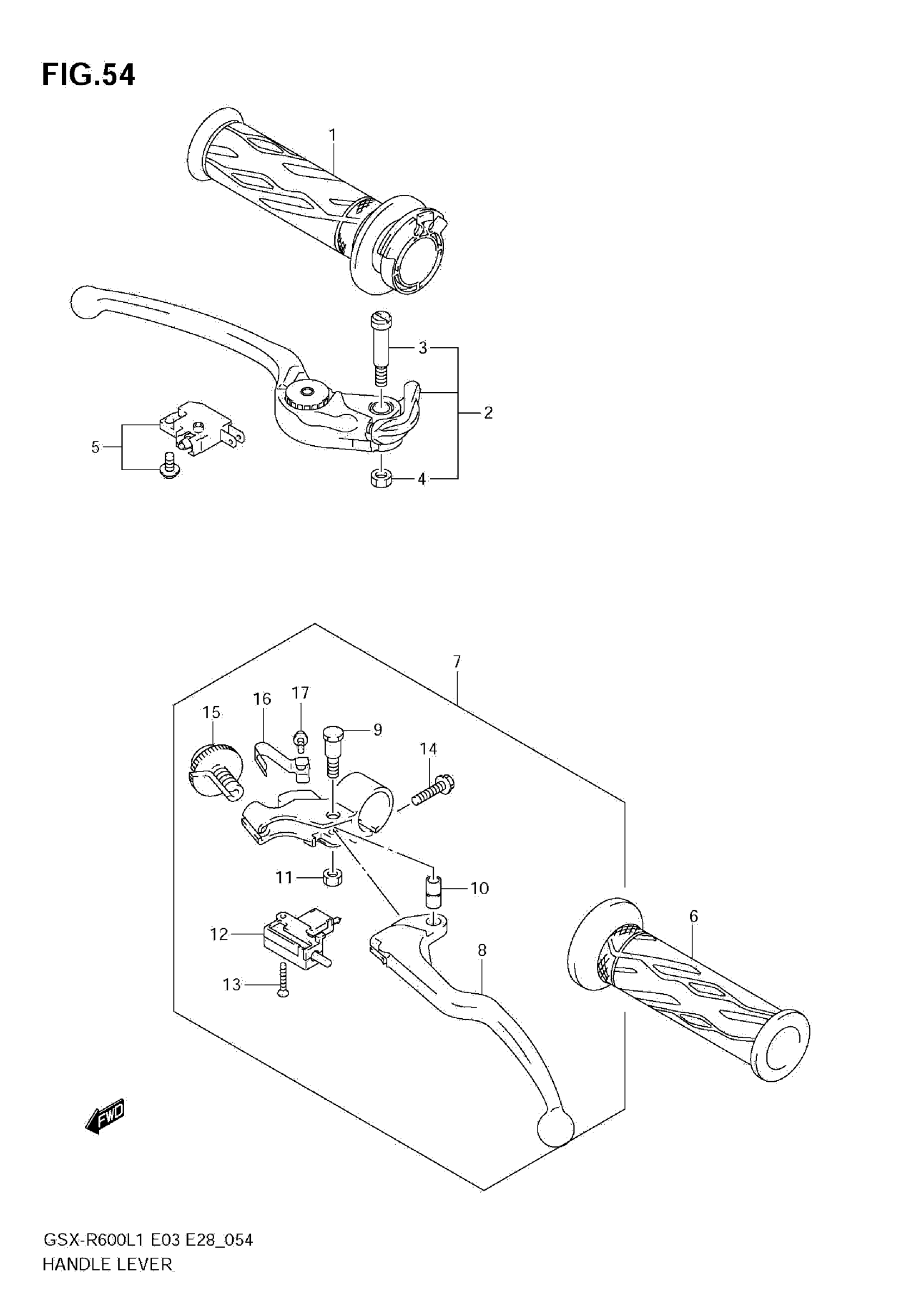

Suzuki GSX-R600L1 (2011) HANDLE LEVER Diagram
