2011 Suzuki GSX-R600L1 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2011 Suzuki GSX-R600L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

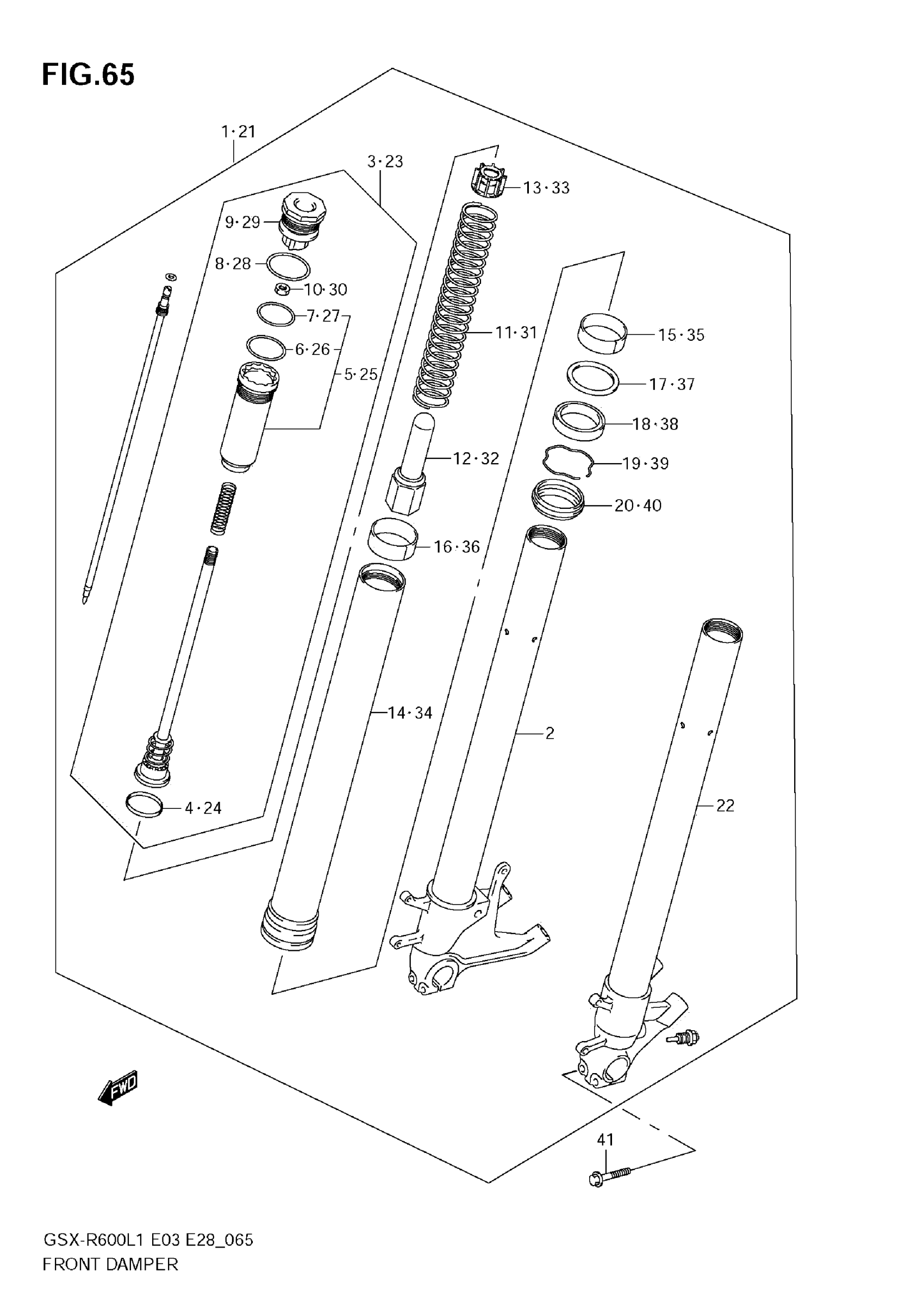

2011 Suzuki GSX-R600L1 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-14J00

1
Out of stock

2

.TUBE,INNER,R

51110-14J00

1

$959.40

In stock

3

ROD, PISTON

52110-14J00

1
Out of stock

4

RING, PISTON

51118-14J00

1

$9.41

In stock

5

CASE, ROD GUIDE

51174-14J00

1

$170.68

In stock

6

RING, PISTON

51118-14J00

1

$9.41

In stock

7

...O-RING

51187-14J00

1

$3.63

In stock

8

..O-RING,FORK BOLT

51187-01H00

1

$6.77

In stock

9

BOLT

51189-14J00

1

$208.25

In stock

10

NUT

51827-29G00

1
Out of stock

11

SPRING

51171-14J00

1
Out of stock

12

COLLAR, SPRING

51172-14J00

1
Out of stock

13

COLLAR, SPRING

51175-14J00

1

$10.82

In stock

14

TUBE, OUTER

51131-14J00

1

$754.00

In stock

15

BUSH, GUIDE This part replaces 51152-01H00.

51152-01H10

1
Out of stock

16

BUSH, SLIDE

51152-14J00

1

$14.17

In stock

17

SPACER, SEAL

51168-38B00

1
Out of stock

18

OIL SEAL

51153-01H10

1
Out of stock

19

RING, STOPPER

51556-38B00

1
Out of stock

20

SEAL, DUST

51173-01H00

1
Out of stock

21

DAMPER ASSY, FRONT FORK LH

51104-14J00

1
Out of stock

22

.TUBE,INNER,L

51120-14J00

1

$977.50

In stock

23

ROD, PISTON

52110-14J00

1
Out of stock

24

RING, PISTON

51118-14J00

1

$9.41

In stock

25

CASE, ROD GUIDE

51174-14J00

1

$170.68

In stock

26

RING, PISTON

51118-14J00

1

$9.41

In stock

27

...O-RING

51187-14J00

1

$3.63

In stock

28

..O-RING,FORK BOLT

51187-01H00

1

$6.77

In stock

29

BOLT

51189-14J00

1

$208.25

In stock

30

NUT

51827-29G00

1
Out of stock

31

SPRING

51171-14J00

1
Out of stock

32

COLLAR, SPRING

51172-14J00

1
Out of stock

33

COLLAR, SPRING

51175-14J00

1

$10.82

In stock

34

TUBE, OUTER

51131-14J00

1

$754.00

In stock

35

BUSH, GUIDE This part replaces 51152-01H00.

51152-01H10

1
Out of stock

36

BUSH, SLIDE

51152-14J00

1

$14.17

In stock

37

SPACER, SEAL

51168-38B00

1
Out of stock

38

OIL SEAL

51153-01H10

1
Out of stock

39

RING, STOPPER

51556-38B00

1
Out of stock

40

SEAL, DUST

51173-01H00

1
Out of stock

41

BOLT

51321-36F00

4
Out of stock
