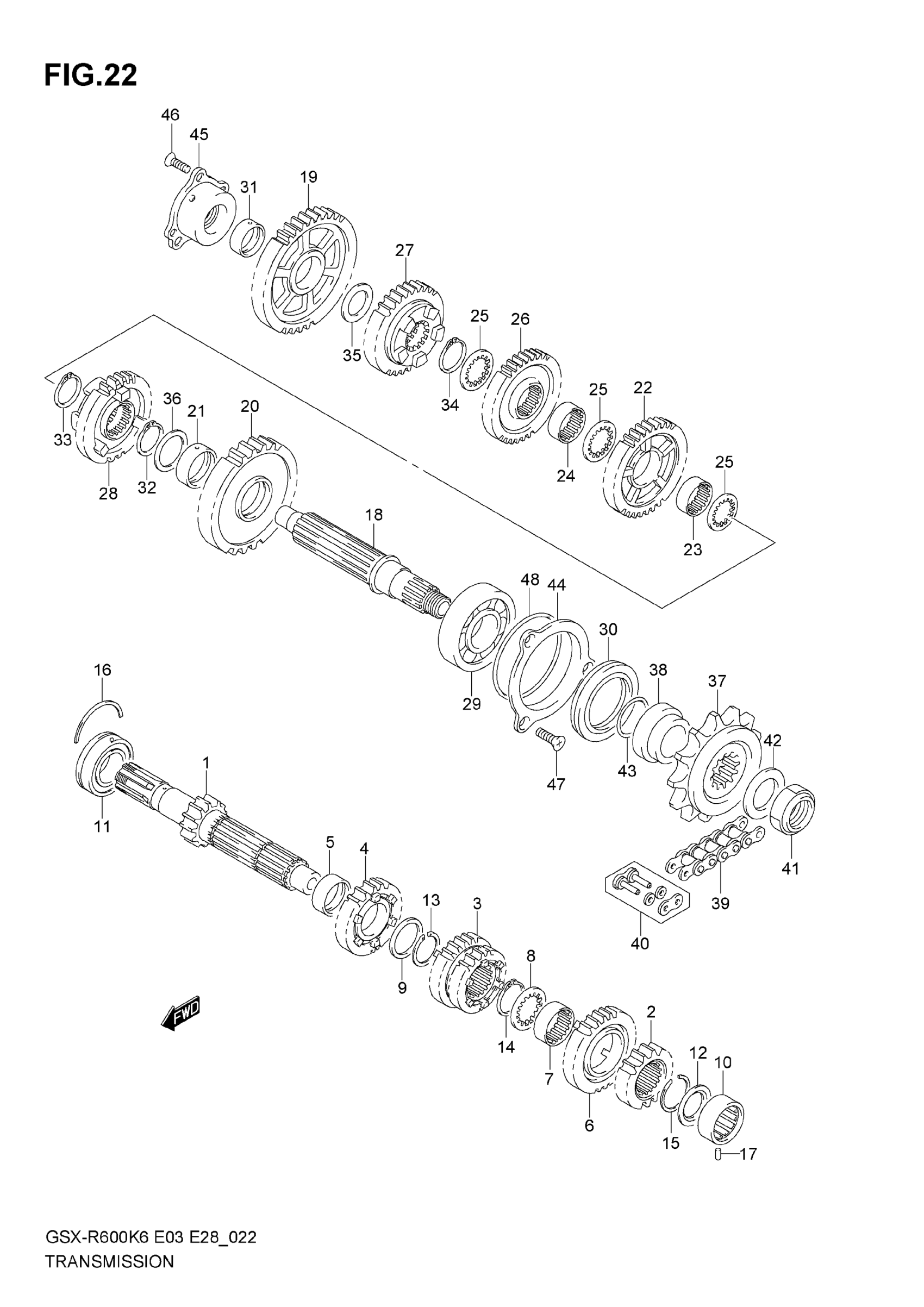

Find the part on the Transmission diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX-R600 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:14)

24120-01H00

1
Out of stock

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

1
Out of stock

3

GEAR,3RD & 4TH DRIVE (NT:21/2

24231-01H00

1
Out of stock

4

GEAR, 5TH DRIVE (NT:23)

24251-01H00

1
Out of stock

5

BUSH 5TH DRIVE GEAR

24252-35F00

1
Out of stock

6

GEAR,6TH DRIVEN (NT:24) | MODEL K6 This part replaces 24261-01H00.

24261-01H01

1
Out of stock

6

GEAR,6TH DRIVEN (NT:24) | MODEL K7

24261-01H01

1
Out of stock

7

BUSH, 6TH DRIVE GEAR

24262-35F00

1
Out of stock

8

WASHER, 6TH DRIVE

09167-27001

1
Out of stock

9

WASHER, 5TH DRIVE | 27X36X1.0

09160-27008

1
Out of stock

10

BEARING, CNTR LH | 20X34X13.5

09263-20087

1
Out of stock

11

BEARING, CNTR RH | 25X62X17

09262-25150

1
Out of stock

12

SEAL, OIL (20X31.2X2.7)

09285-20006

1
Out of stock

13

CIRCLIP, 5TH DRIVE

09380-27006

1
Out of stock

14

CIRCLIP, 6TH DRIVE

09380-27006

1
Out of stock

15

CIRCLIP, 2ND DRIVE

09380-27004

1
Out of stock

16

C RING, CNTR RH

09390-62012

1
Out of stock

17

PIN, COUNTER SHAFT, LH

09261-06003

1
Out of stock

18

SHAFT, DRIVE This part replaces 24131-01H00.

24131-01H01

1
Out of stock

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

1
Out of stock

20

GEAR,2ND DRIVEN (NT:39) This part replaces 24321-35F10.

24321-35F11

1
Out of stock

21

BUSH, 2ND DRIVEN

24322-35F00

1
Out of stock

22

GEAR,3RD DRIVEN (NT:36) This part replaces 24331-40F20.

24331-40F30

1
Out of stock

23

BUSH, 3RD DRIVEN

24262-17E01

1
Out of stock

24

BUSH, 4TH DRIVEN GEAR

24262-17E01

1
Out of stock

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

3
Out of stock

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

1
Out of stock

27

GEAR, 5TH DRIVEN (NT:31) | MODEL K6 This part replaces 24351-01H00.

24351-01H01

1
Out of stock

27

GEAR, 5TH DRIVEN (NT:31) | MODEL K7

24351-01H01

1
Out of stock

28

GEAR, 6TH DRIVEN (NT:26)

24361-01H00

1
Out of stock

29

BEARING, DRIVE SHAFT, LH | 28X70X18

09262-28045

1
Out of stock

30

SEAL, DRIVE SHAFT, OIL | 36X70X6

09283-42017

1
Out of stock

31

BUSH, 1ST DRIVEN GEAR | 22X26X9

09300-22008

1
Out of stock

32

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

1
Out of stock

33

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

1
Out of stock

34

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

1
Out of stock

35

WASHER, 1ST DRIVEN LH | 22X34X1.0

09181-22223

1
Out of stock

36

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

1
Out of stock

37

SPROCKET, ENGINE (NT:16)

27510-20A10

1
Out of stock

38

SPACER, ENGINE SPROCKET

27531-01H00

1
Out of stock

39

CHAIN ASSY (RK 525SMOZ8) This part replaces 27600-06G30-114.

27600-06G40-114

1
Out of stock

40

JOINT SET | OPT

27620-06G00

1
Out of stock

41

NUT, ENGINE SPROCKET

09159-20004

1

$15.18

In stock

42

WASHER (25X41X3)

09160-25009

1

$5.20

In stock

43

O RING (D:2.4,ID:23.7)

09280-24010

1
Out of stock

44

RETAINER, DRIVE SHAFT, L This part replaces 24751-01H00.

24751-01H10

1
Out of stock

45

HOUSING, DRIVE SHAFT, SET

24771-01810

1
Out of stock

46

SCREW, DRIVE SHAFT (6X20) This part replaces 09139-06159-A05.

09139-06159

3
Out of stock

47

SCREW, DRIVE SHAFT (6X20) This part replaces 09139-06159-A05.

09139-06159

3
Out of stock

48

O RING

09280-68009

1
Out of stock
