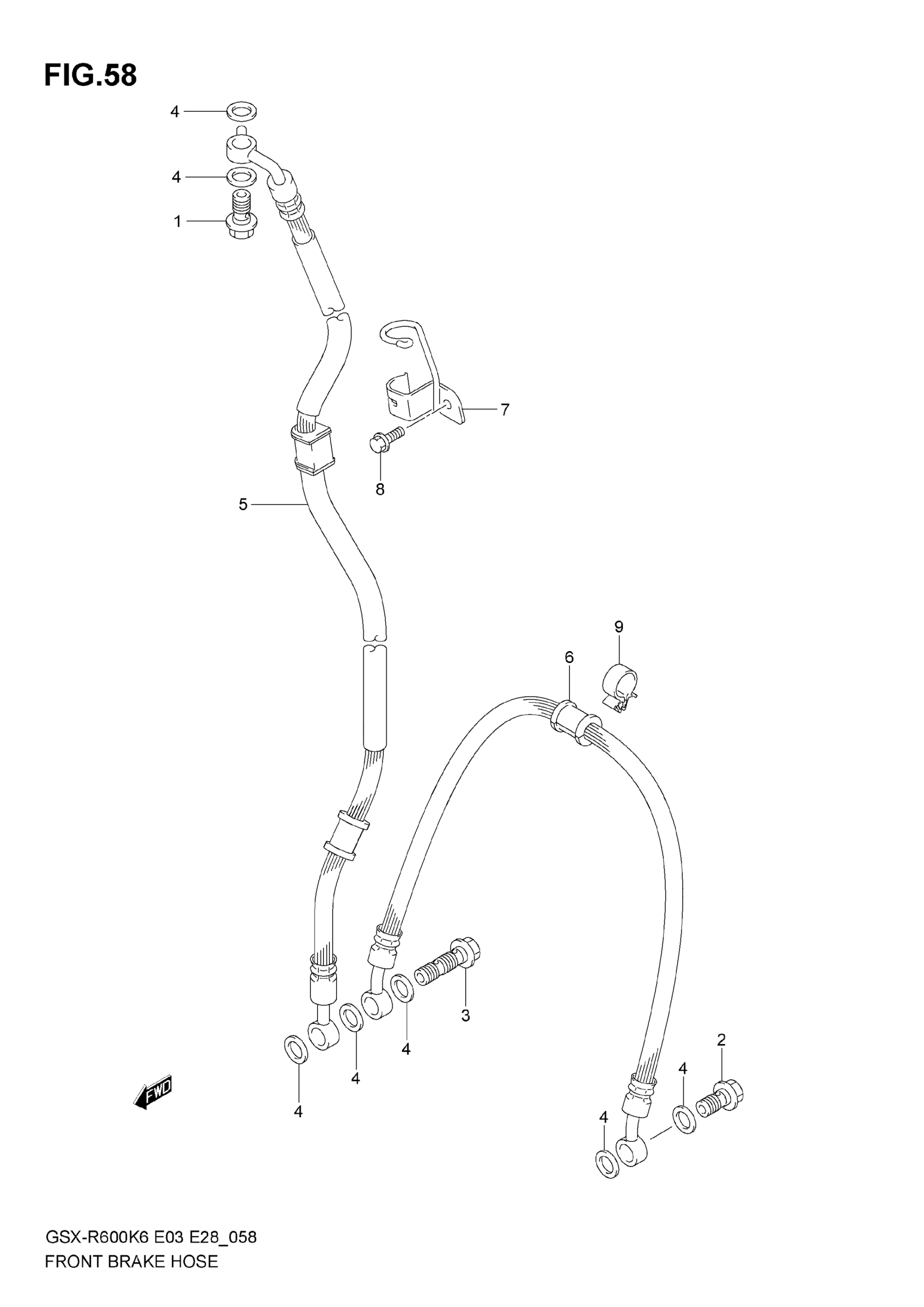

Suzuki GSX-R600 (2007) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10040-A08.

09360-10062

$5.99

2

UNION This part replaces 09360-10040-A08.

09360-10062

$5.99

3

UNION This part replaces 09360-10038-A08.

09360-10063

$8.53

4

WASHER (10X15X1.5)

09161-10009

$1.89

5

HOSE,FR BRAKE N This part replaces 59480-01H00.

59480-01H01

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-01H00

Unavailable

7

CLAMP, BRAKE HOSE NO.1 This part replaces 59260-41G00-A05.

59260-41G00

$20.22

8

BOLT

01547-0612A

$2.09

9

CLAMP, BRAKE HOSE NO.2

09403-16412

$3.18
