2007 Suzuki GSX-R600 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

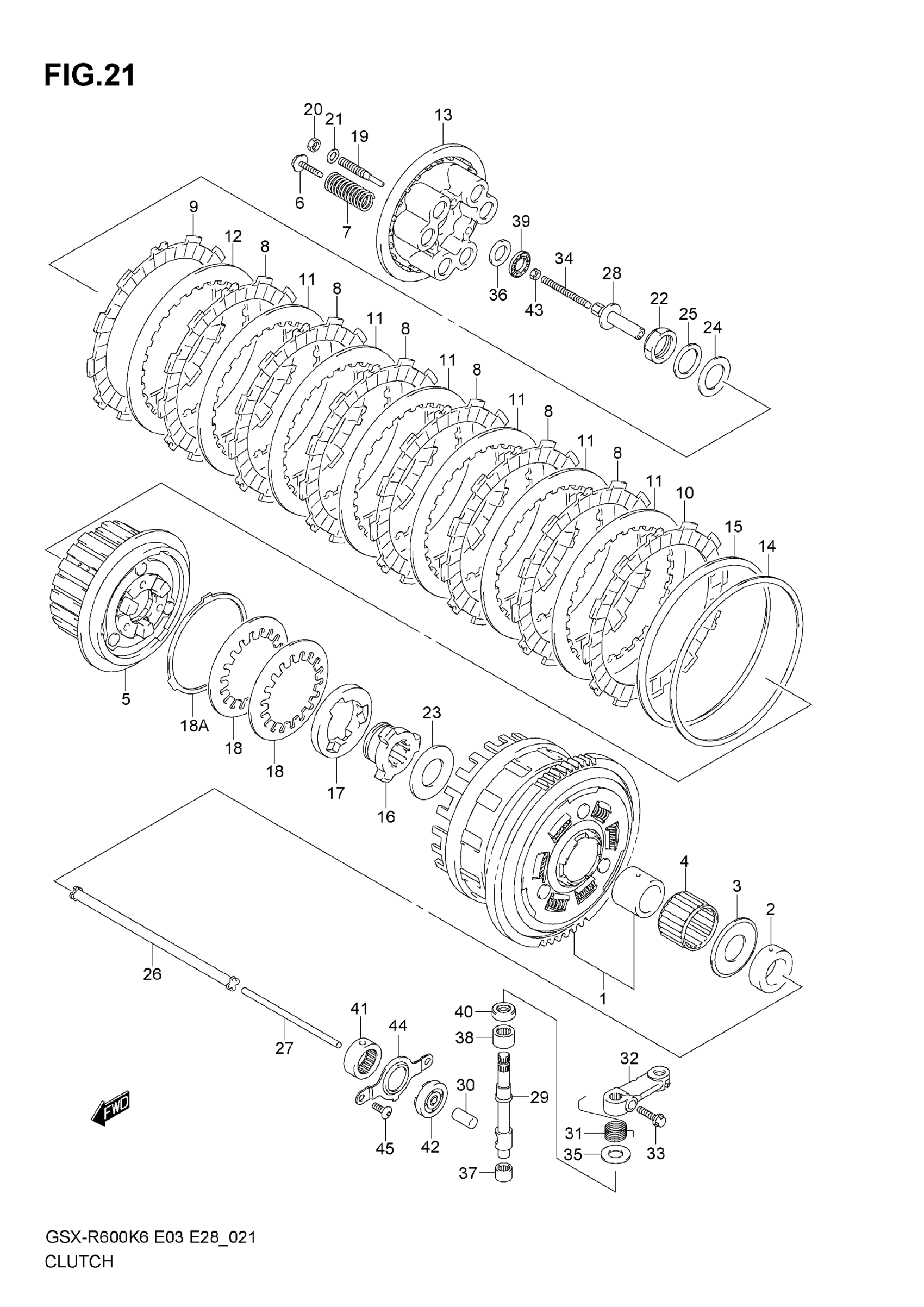

2007 Suzuki GSX-R600 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:77 This part replaces 21200-01810.

21200-01820

1
Out of stock

2

SPACER, OIL PUMP DRIVE

21253-01H00

1
Out of stock

3

WASHER (25X54X2.4)

09160-25073

1
Out of stock

4

BEARING (35X40X26.8)

09263-35015

1
Out of stock

5

HUB, CLUTCH SLEEVE

21410-41G10

1
Out of stock

6

BOLT, CLUTCH SPRING

21482-41G00

6
Out of stock

7

SPRING, CLUTCH

21413-01H00

6
Out of stock

8

PLATE, CLUTCH DRIVE NO.1

21441-36F30

6
Out of stock

9

.PLATE,CLUTCH DRIVE NO.1 (T:2 This part replaces 21441-36F20.

21441-36F50

1
Out of stock

10

PLATE, CLUTCH DRIVE NO.3 This part replaces 21442-41G10.

21442-41G00

1
Out of stock

11

PLATE, CLUTCH DRIVEN NO.1 | T:2.6

21451-41G20

6
Out of stock

12

PLATE, CLUTCH DRIVEN NO.2 | T:2.3

21451-41G00

1
Out of stock

13

DISC,CLUTCH PRESSURE

21462-41G00

1
Out of stock

14

.SEAT,WAVE WASHER

21471-41G00

1
Out of stock

15

WASHER, CLUTCH PLATE WAVE

21472-41G10

1
Out of stock

16

CAM, CLUTCH DRIVE

21611-41G10

1
Out of stock

17

CAM,CLUTCH DRIVEN

21612-41G10

1
Out of stock

18

WASHER,CAM REACTION WAVE

21621-41G00

2
Out of stock

18A

WASHER,CAM REACTION SEAT

21624-41G00

1
Out of stock

19

LIFTER, CLUTCH PRESSURE DISC

21622-41G00

3
Out of stock

20

NUT, CL PRESS DISC

21623-41G00

3
Out of stock

21

WASHER (8X14X1.0)

09181-08139

3
Out of stock

22

NUT, CLUTCH SLEEVE HUB

09159-24010

1
Out of stock

23

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

1
Out of stock

24

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

1
Out of stock

25

WASHER, SLEEVE HUB NUT | 25X41X2.50

09160-25077

1
Out of stock

26

ROD, CLUTCH PUSH RH

23110-38B00

1
Out of stock

27

ROD, CLUTCH PUSH LH

23111-35F00

1
Out of stock

28

PIECE, CLUTCH PUSH

23121-41G00

1
Out of stock

29

CAMSHAFT,CLUTCH RELEASE This part replaces 23122-41G00-A05.

23122-41G00

1
Out of stock

30

CAP, CLUTCH PUSH ROD

23123-41G00

1
Out of stock

31

SPRING, CLUTCH RELEASE

23125-41G00

1
Out of stock

32

ARM, CLUTCH RELEASE This part replaces 23271-41G20.

23271-41G21

1
Out of stock

33

BOLT, CL RELEASE

09103-06223

1
Out of stock

34

SCREW, CLUTCH PUSH This part replaces 09134-06015-A05.

09134-06015

1
Out of stock

35

WASHER, CLUTCH PUSH | 10.5X24X1 This part replaces 09160-10020-A05.

09160-10020

1
Out of stock

36

WASHER, CLUTCH PUSH | 15.5X28X1.0

09160-15045

1
Out of stock

37

BEARING, CL CAM SHAFT | 10X14X10

09263-10014

1
Out of stock

38

BEARING, CL RLSE CAM | 12X18X12

09263-12027

1
Out of stock

39

BEARING, CL PUSH PIECE | 15X28X2

09263-15003

1
Out of stock

40

SEAL, CL RLSE CAM SHAFT | 10X20X6

09282-10012

1
Out of stock

41

SEAL, CLUTCH PUSH ROD | 5X34X10

09285-06011

1
Out of stock

42

SEAL, CLUTCH PUSH ROD | 10X17X5

09285-10004

1
Out of stock

43

NUT, CLUTCH RELEASE

08310-0006A

1
Out of stock

44

RETAINER,CL PUSH ROD OIL SEAL This part replaces 24741-01H00-A05.

24741-01H00

1
Out of stock

45

SCREW, PUSH ROD

09139-06153

2
Out of stock
