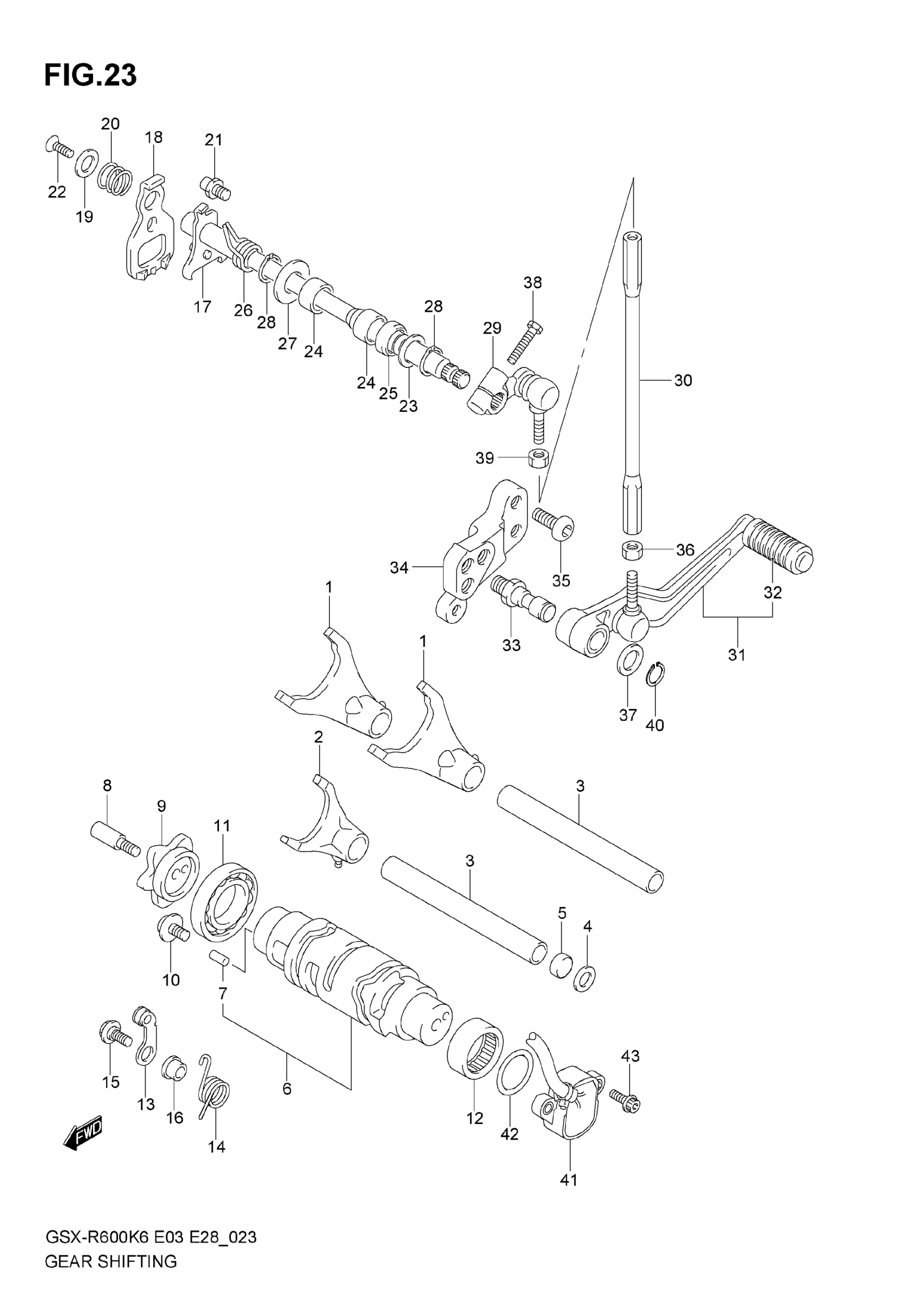

Suzuki GSX-R600 (2007) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT, NO.1 This part replaces 25211-01H00.

25211-01H01

$119.43

2

FORK,GEAR SHIFT NO.3 This part replaces 25231-01H00.

25231-01H02

$86.33

3

SHAFT, GEAR SHIFT FORK

25411-35F00

$33.02

4

WASHER (6.5X16X1.2) | 6.5X16X1.2 This part replaces 09160-06019-A05.

09160-06019

$1.38

5

PLUG, GEAR SHIFT FORK

09241-14001

$7.27

6

CAM,GEAR SHIFT | Includes Item(s) 7

25310-01H00

$285.47

7

PIN (4X13.8)

04221-04089

$1.10

8

BOLT, GEAR SHIFT CAM This part replaces 25312-42F00.

25312-42F01

$7.28

9

PLATE, GEAR SHIFT CAM

25381-13E30

$63.98

10

SCREW, GEAR SHIFT CAM | 6X12 This part replaces 09136-06147-A05.

09136-06147

$3.48

11

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$23.05

12

BEARING, GEAR SHIFT | 25X32X12

09263-25018

$19.30

13

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

14

SPRING, SHIFT CAM STOPPER

25355-01H00

$5.75

15

BOLT,SHIFT CAM STOPPER ARM

25357-01H00

$5.43

16

SPACER, CAM STOPPER

25358-01H00

$12.35

17

SHAFT,GEAR SHIFT

25510-01H00

$131.65

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$22.32

19

PLATE, GEAR SHIFT CAM

25519-01H00

$6.75

20

SPRING, GEAR SHIFT RETURN

25518-01H00

Unavailable

21

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

22

BOLT, GEAR SHIFT END This part replaces 09126-06014-A05.

09126-06014

$2.07

23

WASHER, GEAR SHAFT, LH | 14X29X0.8

09160-14016

$1.91

24

BEARING, GEAR SHAFT | 14X20X12

09263-14027

$12.21

25

SEAL, GEAR SHAFT | 14X22X6

09283-14006

$6.04

26

SPRING, SHIFT RETURN

09444-20001

$4.80

27

WASHER, GEAR SHAFT | 14X22X1.0

09181-14167

$2.55

28

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

29

ARM,GEAR SHIFT This part replaces 25520-01H00.

25520-01H01

$42.85

30

ROD, GEAR SHIFT LINK

25525-01H00

$28.75

31

LEVER ASSY,GEAR | Includes Item(s) 32 This part replaces 25600-01H00.

25600-01H02

$109.09

32

RUBBER, GEAR PEDAL

25652-20C00

$4.98

33

SHAFT, GEAR SHIFT LEVER This part replaces 25617-03F00-A05.

25617-03F10

$11.29

34

BRACKET, GEAR SHIFT LEVER

25681-01H00

$137.68

35

BOLT, GEAR BRACKET

09106-08167

$3.15

36

NUT, LINK ROD, L

09140-06025

$1.84

37

WASHER (12.5X20X1) This part replaces 09160-12011-A05.

09160-12011

$1.48

38

BOLT, GEAR SHIFT ARM

01500-0625A

$1.77

39

.NUT

08310-00067

$1.83

40

CIRCLIP

08331-3112A

$1.77

41

SENSOR ASSY,GEAR POSITION This part replaces 37730-01H00.

37730-14J01

$67.60

42

O RING, GEAR SHIFT | OD:2.4,ID:25.7

09280-26007

$5.97

43

BOLT, GEAR SHIFT SW

09106-05023

$2.80
