2005 Suzuki GSX-R600 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

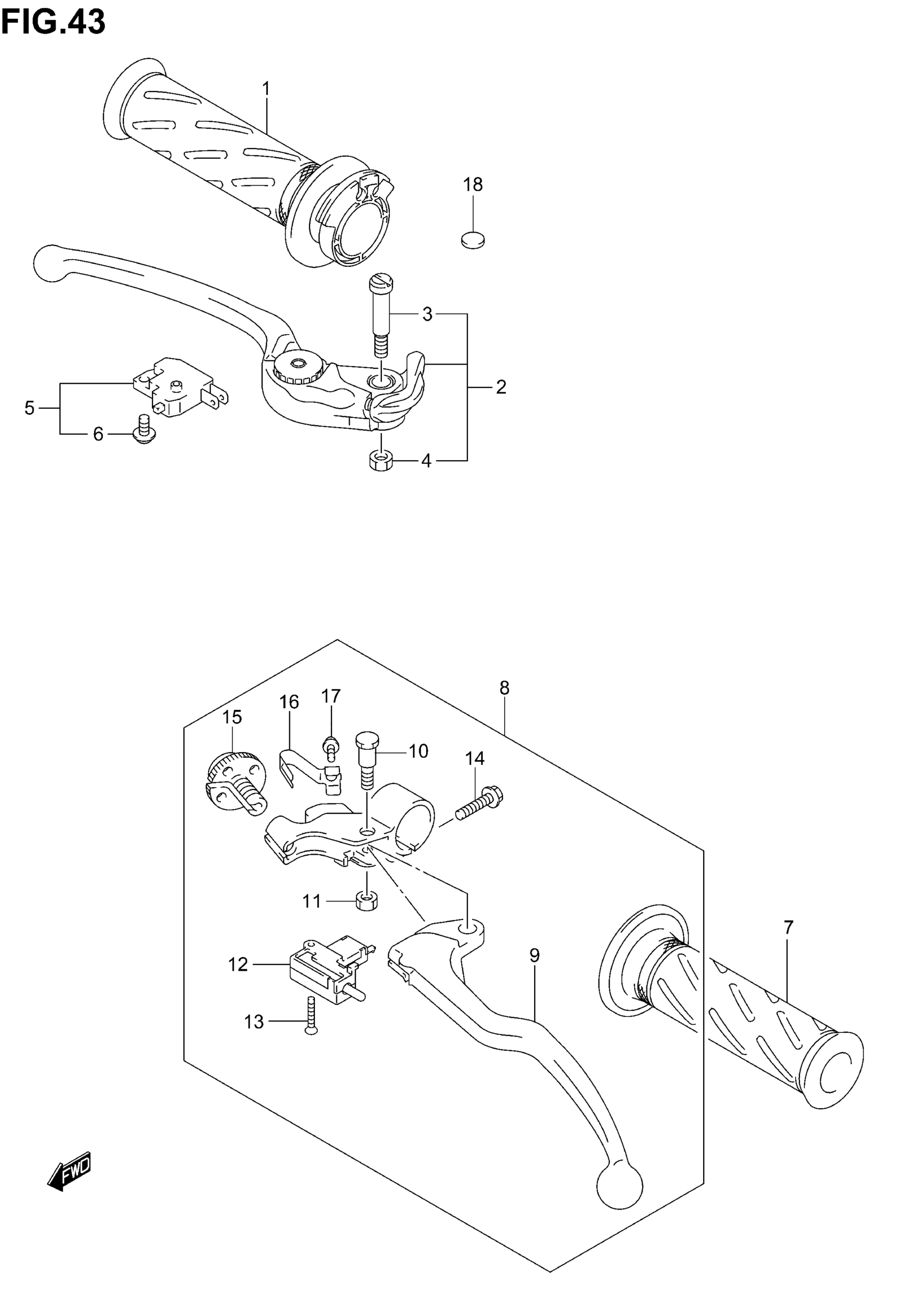

2005 Suzuki GSX-R600 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$29.83

In stock

3

BOLT, KNOCKER

57431-29G00

1

$9.29

In stock

4

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

1

$14.51

In stock

9

LEVER, CLUTCH

57621-40F00

1

$17.92

In stock

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

1
Out of stock

11

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

12

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

13

1

$2.33

In stock

14

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

15

1

$46.38

In stock

16

SPRING

57644-33E00

1

$9.31

In stock

17

SCREW, SPRING

57642-33E00

1

$4.53

In stock

18

RUBBER, MASTER CYLINDER

57542-29G00

1
Out of stock
