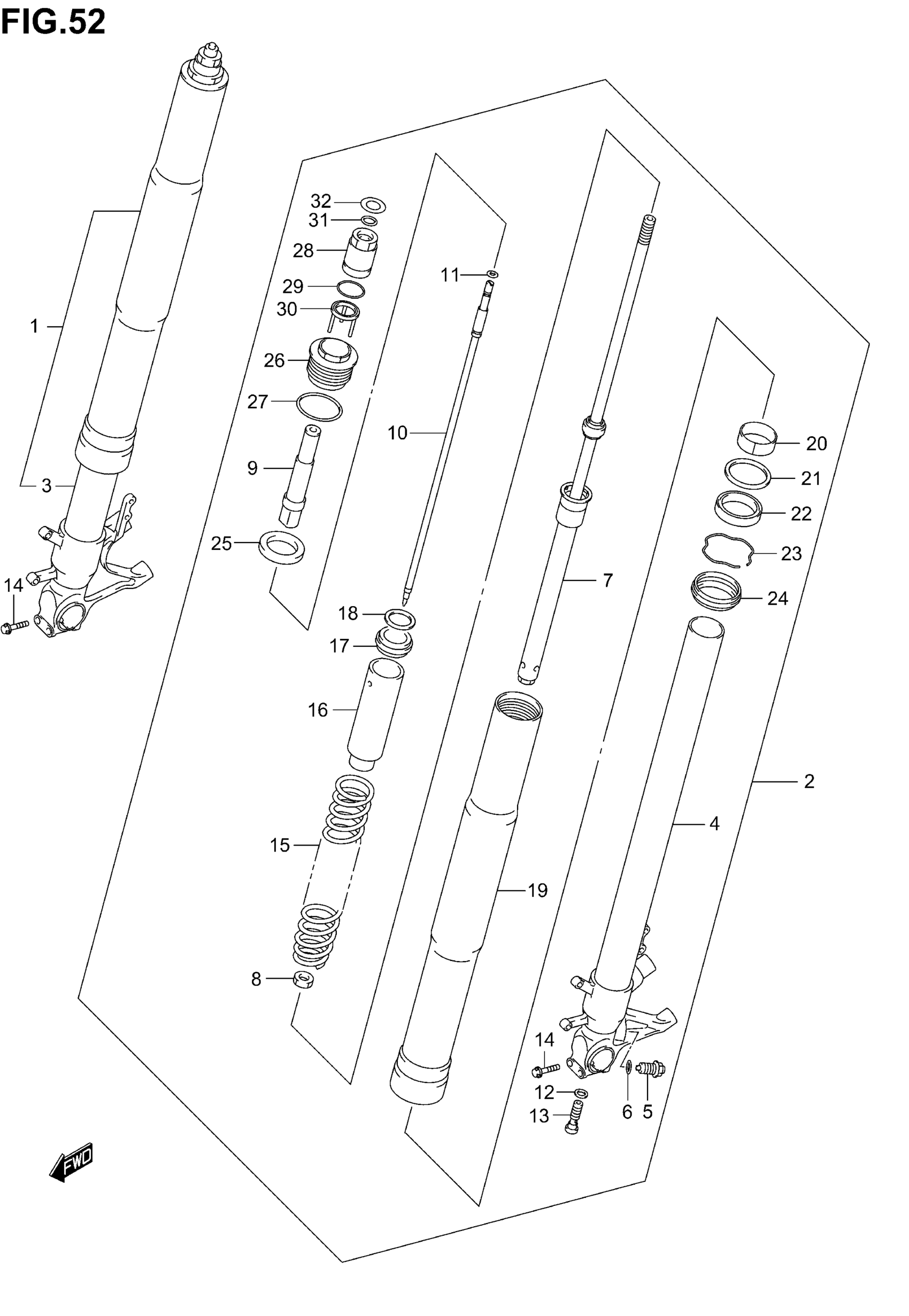

Suzuki GSX-R600 (2005) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-29G00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 32

51104-29G00

Unavailable

3

TUBE, INNER RH

51110-29G00

Unavailable

4

TUBE, INNER LH

51120-29G00

Unavailable

5

PIECE, ADJUSTER LOWER

51830-29G00

Unavailable

6

O RING

09280-14011

$4.30

7

ROD, DAMPER

52110-29G00

Unavailable

8

NUT

51827-29G00

Unavailable

9

CASE, ADJUST

51829-29G00

Unavailable

10

PIECE, ADJUST

51821-29G00

Unavailable

11

O RING

09280-03002

$1.37

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

BOLT

51147-17C00

$25.55

14

BOLT, AXLE HOLDER

51166-35F00

$6.86

15

SPRING

51171-29G00

Unavailable

16

SPACER, SPRING

51176-29G00

$21.13

17

.GUIDE,SPRING UPR

51175-22D00

$22.95

18

WASHER, JOINT

51172-34370

$3.80

19

TUBE, OUTER

51131-29G00

Unavailable

20

BUSH, GUIDE

51152-13E00

$18.07

21

SPACER, SEAL

51168-29G00

$8.65

22

.OIL SEAL This part replaces 51553-27G00.

51153-27G00

$21.12

23

RING, STOPPER

51556-38B00

$6.61

24

.SEAL, DUST

51173-27G00

$24.34

25

RUBBER, SEAT

51193-17D00

$16.03

26

BOLT, FORK

51189-35F00

Unavailable

27

O RING, FORK BOLT

51187-08D00

$6.95

28

ADJUSTER, SPRING

51828-35F00

$79.73

29

O RING, ADJUSTER OUTER

51199-17D00

$7.07

30

PLATE, SPRING ADJUSTER

51823-22D30

$41.37

31

RING, STOPPER

51837-17D00

$7.22

32

LABEL, ADJUST PIECE UPPER

51149-42E00

$5.37
