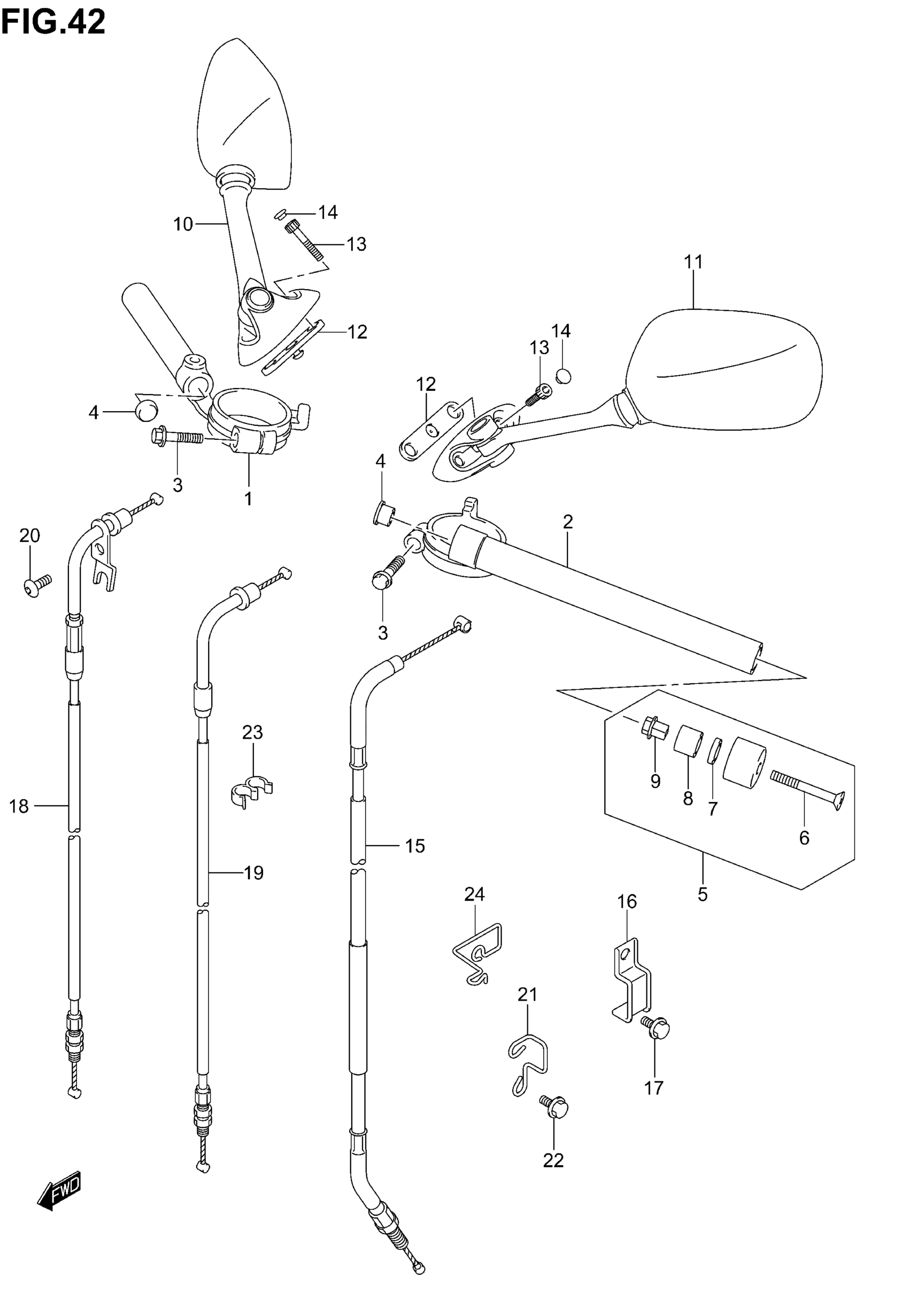

Suzuki GSX-R600 (2005) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-29G00

Unavailable

2

HANDLEBAR, LH

56151-29G00

Unavailable

3

BOLT, HANDLEBAR

56123-35F00

$6.95

4

CAP,HANDLEBAR

56131-29G00

$3.85

5

BALANCER SET,HN | Includes Item(s) 6 - 9 This part replaces 56200-14830.

56200-14833

$55.78

6

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

$2.77

7

WASHER

09160-06131

$2.53

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

9

NUT This part replaces 56273-10G00.

56273-10G10

$7.92

10

MIRROR ASSY, REAR VIEW RH

56500-29G10

$177.75

11

MIRROR ASSY, REAR VIEW LH

56600-29G10

$177.75

12

CUSHION

94576-24F00

$6.14

13

BOLT This part replaces 07130-06303.

07130-0630B

$3.04

14

CAP

09250-05009

$2.10

15

CABLE ASSY, CLUTCH

58200-29G00

$22.48

16

GUIDE, CLUTCH CABLE

58621-06G00

$11.18

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

CABLE ASSY, THROTTLE NO.1

58300-29G00

Unavailable

19

CABLE ASSY, THROTTLE NO.2

58300-29G10

Unavailable

20

SCREW, CASE | MODEL K4

09139-05079

$2.88

20

SCREW | MODEL K5 This part replaces 02142-05083.

02142-0508A

$1.38

21

GUIDE, THROTTLE CABLE NO.1

58621-29G00

$10.52

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

23

CLIP

09408-00033

$3.08

24

GUIDE, THROTTLE CABLE NO.2

58631-29G00

Unavailable
