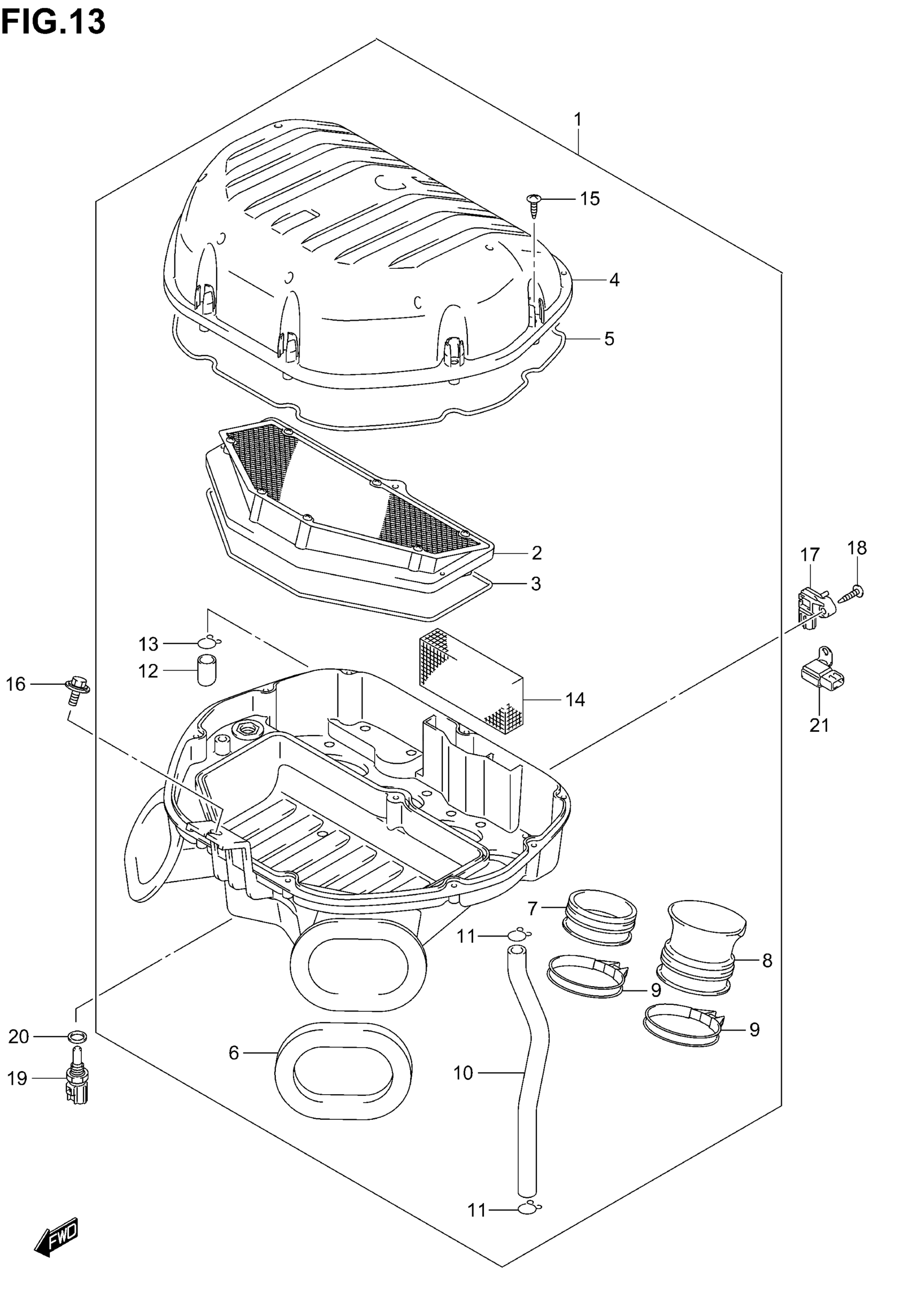

Find the part on the Air Cleaner diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX-R600 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 15

13700-29G00

1
Out of stock

2

FILTER ASSY

13780-29G00

1
Out of stock

3

GASKET, CASE

13756-29G00

1
Out of stock

4

CAP

13741-29G00

1
Out of stock

5

GASKET, CAP

13746-29G00

1
Out of stock

6

CUSHION, DUCT

13736-29G00

2
Out of stock

7

TUBE, OUTLET, ML/MR

13881-29G00

2
Out of stock

8

TUBE, OUTLET, LH/RH

13882-29G00

2
Out of stock

9

CLAMP This part replaces 09402-56208.

09402-56901

4
Out of stock

10

TUBE,BREATHER This part replaces 13853-29G00.

13853-29G01

1
Out of stock

11

CLIP

09401-14301

2
Out of stock

12

.PLUG This part replaces 13878-10G00.

13878-10G01

1
Out of stock

13

CLIP

09401-14301

1
Out of stock

14

FILTER, BREATHER

13788-29G00

1
Out of stock

15

SCREW This part replaces 03142-05203.

03142-0520B

10
Out of stock

16

BOLT

09116-06130

1
Out of stock

17

SENSOR,BOOST

15620-29G00

1
Out of stock

18

SCREW This part replaces 03541-05253.

03541-0525B

1
Out of stock

19

SENSOR, AIR TEMPERATURE

13650-61B00

1
Out of stock

20

GASKET

09168-12017

1
Out of stock

21

SENSOR, PRESSURE This part replaces 15620-29G10.

15630-29G10

1
Out of stock
