2005 Suzuki GSX-R600 2ND AIR Diagram

← All diagrams

Find the part on the 2ND AIR diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

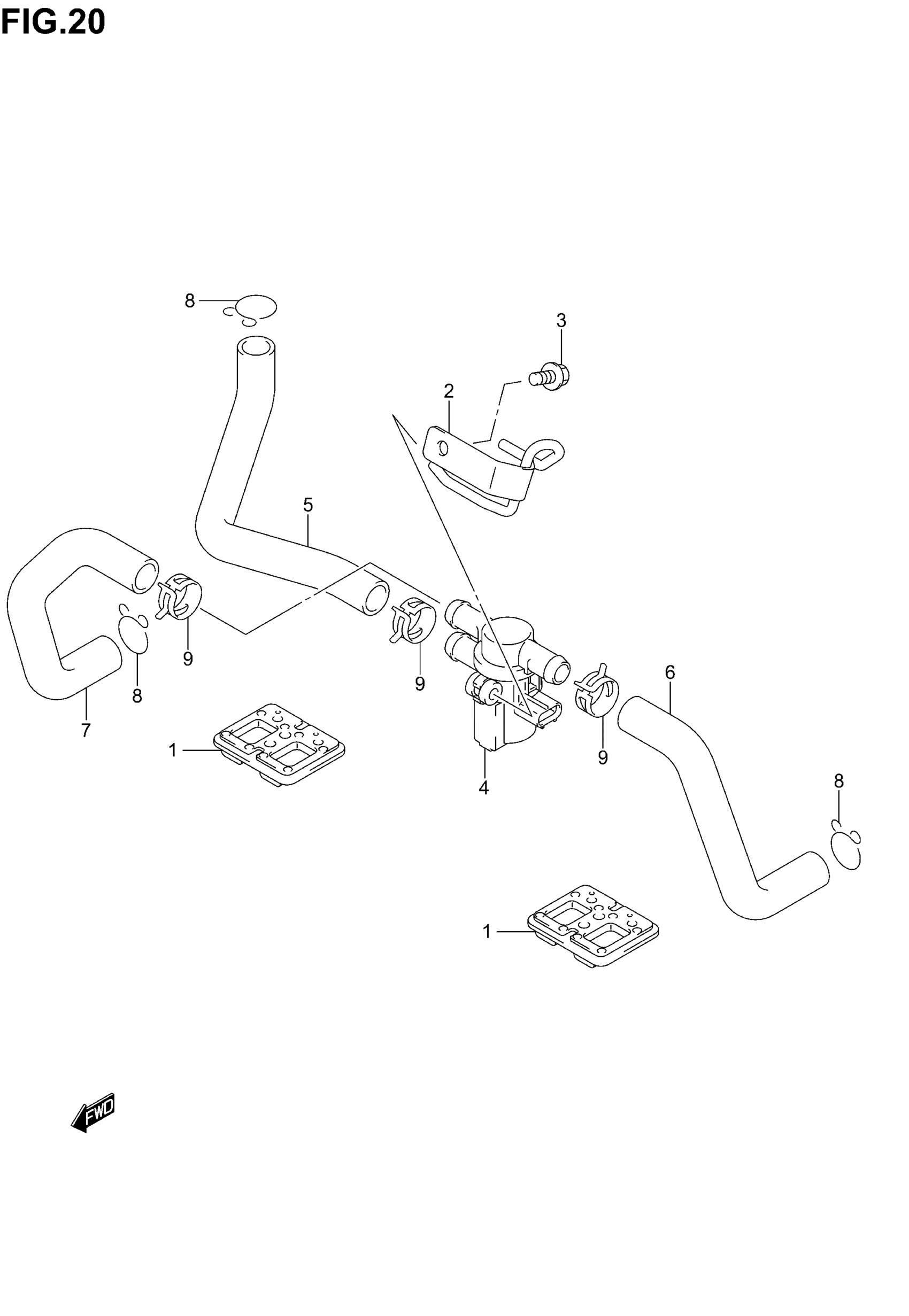

2005 Suzuki GSX-R600 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, 2ND AIR REED

18450-35F20

2
Out of stock

2

BRACKET, 2ND AIR VALVE

18610-29G00

1
Out of stock

3

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

4

VALVE ASSY,AIR This part replaces 18510-29G00.

18510-29G01

1
Out of stock

5

HOSE, 2ND AIR CLEANER

18711-29G00

1
Out of stock

6

HOSE, 2ND AIR VALVE, L

18461-29G00

1
Out of stock

7

HOSE, 2ND AIR VALVE, R

18471-29G00

1
Out of stock

8

CLIP

09401-15101

3
Out of stock

9

CLIP

09401-17401

3
Out of stock
← Water Pump AIR Cleaner →
