Description

Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13

15100-29G00

$1,187.32

2

FILTER ASSY, FUEL

15410-42F00

$446.13

3

STRAINER, FUEL PUMP

15420-24FB0

$109.12

4

CUSHION, FUEL PUMP

15111-35F00

$8.71

5

HOLDER, FUEL PUMP

15112-42F00

$17.52

6

BUSH, FUEL PUMP

15114-35F00

$14.34

7

O RING

15113-35F00

$8.15

8

NUT

15115-35F00

$9.75

9

SCREW

15116-35F10

$5.95

10

THERMISTOR

15170-29G00

$307.90

11

WASHER

15171-35F00

$8.13

12

SPRING WASHER

15172-35F00

$8.13

13

NUT

15173-35F00

Unavailable

14

O-RING

15201-35F00

$25.27

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

16

HOSE, FUEL

15810-18G00

$57.80

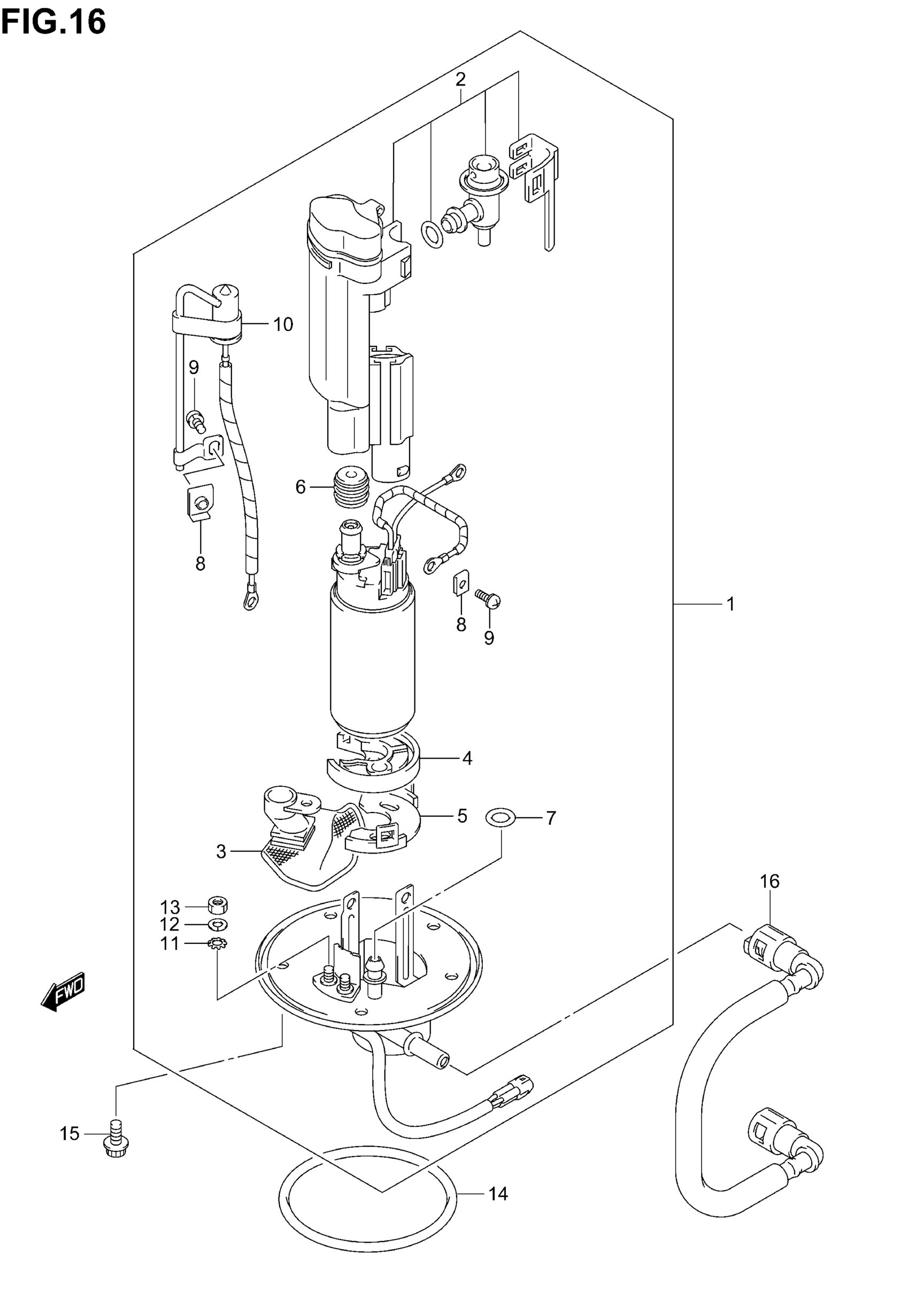

Suzuki GSX-R600 (2005) FUEL PUMP Diagram
